ANSC PART#

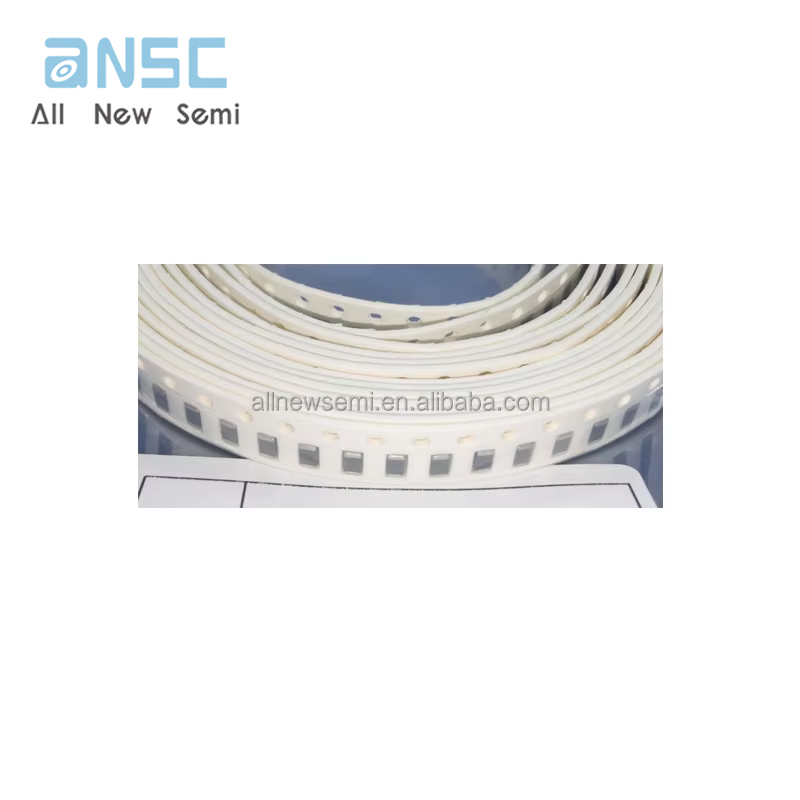

ANSC - BLM31PG500SN1L

Category

Filters

Ferrite Beads and Chips

Manufacturer

-

Series

EMIFIL®, BLM31

Packaging

Tape & Reel (TR)

Cut Tape (CT)

Part Status

Active

Filter Type

Power Line

Number of Lines

1

Impedance @ Frequency

50 Ohms @ 100 MHz

Current Rating (Max)

3.5A

DC Resistance (DCR) (Max)

15mOhm

Ratings

-

Operating Temperature

-55°C ~ 125°C

Package / Case

1206 (3216 Metric)

Mounting Type

Surface Mount

Height (Max)

0.051" (1.30mm)

Size / Dimension

0.126" L x 0.063" W (3.20mm x 1.60mm)

Base Product Number

BLM31PG
