Product Details
|
Description The LD25S24A4GV00LF is a high-quality D-Sub receptacle connector designed . This connector is part of the LD series, known for its reliability and performance in various electronic applications. The LD25S24A4GV00LF features a black color with a gold contact finish, ensuring optimal signal integrity and durability. Features Connector Style: D-Sub Connector Type: Receptacle, Female Sockets Contact Finish: Gold Contact Finish Thickness: Flash Contact Materials: Copper Alloy Contact Type: Signal Current Rating (Amps): 5A Dielectric Material: Thermoplastic Features: Board Lock Flange Feature: Mating Side, Female Screwlock (4-40) Material Flammability Rating: UL94 V-0 Moisture Sensitivity Level (MSL): 1 (Unlimited) Mounting Type: Through Hole Number of Pins: 25 Number of Positions: 25 Number of Rows: 2 Operating Temperature Range: -55°C ~ 105°C Packaging: Tray Part Status: Active RoHS Status: RoHS Compliant Series: LD Shell Material & Finish: Nickel, Tin Plated Shell Size & Connector Layout: 3 DB B Termination Method: Solder Voltage Rated: 250V Applications The LD25S24A4GV00LF is primarily suited for applications requiring high signal integrity and reliability in harsh environments. Some primary applications include: Industrial Automation Systems: The connector's ability to withstand extreme temperatures makes it ideal for use in industrial automation systems where reliability is crucial. Medical Devices: The UL94 V-0 flammability rating ensures that the connector meets stringent safety standards required in medical devices. Aerospace & Defense: The connector's high current rating and robust design make it suitable for use in aerospace and defense applications where reliability is paramount. Secondary applications include: Communication Systems: The connector's signal integrity features make it suitable for use in communication systems requiring high-speed data transfer. Test & Measurement Equipment: The connector's precision and reliability make it an excellent choice for test and measurement equipment. |
Product Description
| Type | Description |
| ANSC PART# | ANSC - LD25S24A4GV00LF |
| Category | Connectors, Interconnects |
| D-Sub, D-Shaped Connectors | |
| D-Sub Connector Assemblies | |
| Mfr | Original |
| Series | LD |
| Packaging | Tray |
| Part Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Mounting Type | Through Hole |
| Shell Size, Connector Layout | 3 (DB, B) |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A per Contact |
| Backset Spacing | - |
| Features | Board Lock |
| Voltage Rating | 250V |
| Color | Black |
| Contact Form | - |
| Dielectric Material | Thermoplastic |
| Wire Gauge | - |
| Contact Material | Copper Alloy |
| Operating Temperature | -55°C ~ 105°C |
| Base Product Number | LD25S24 |

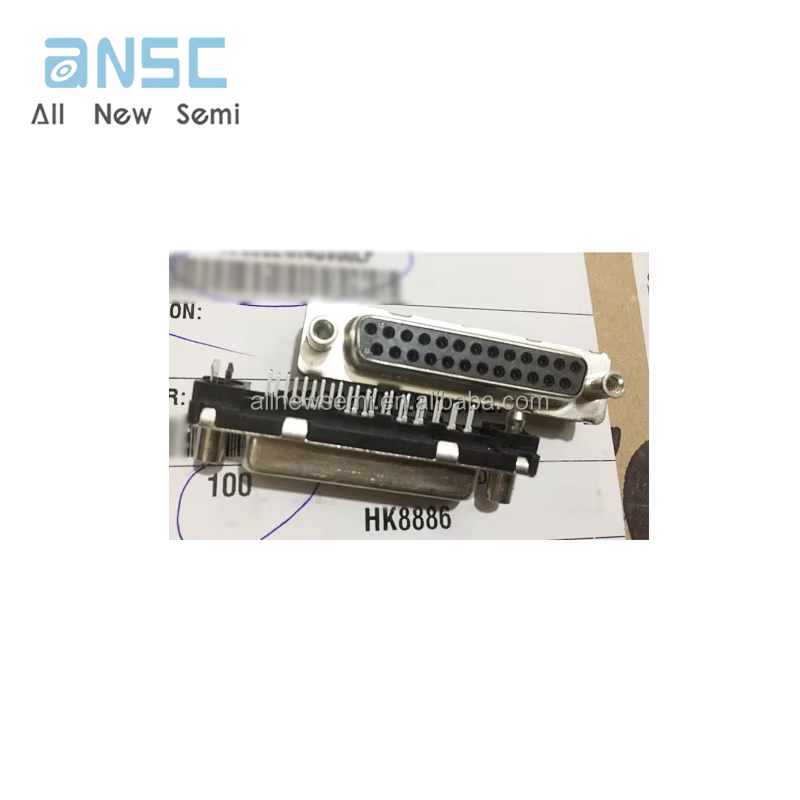

Actual image of the product

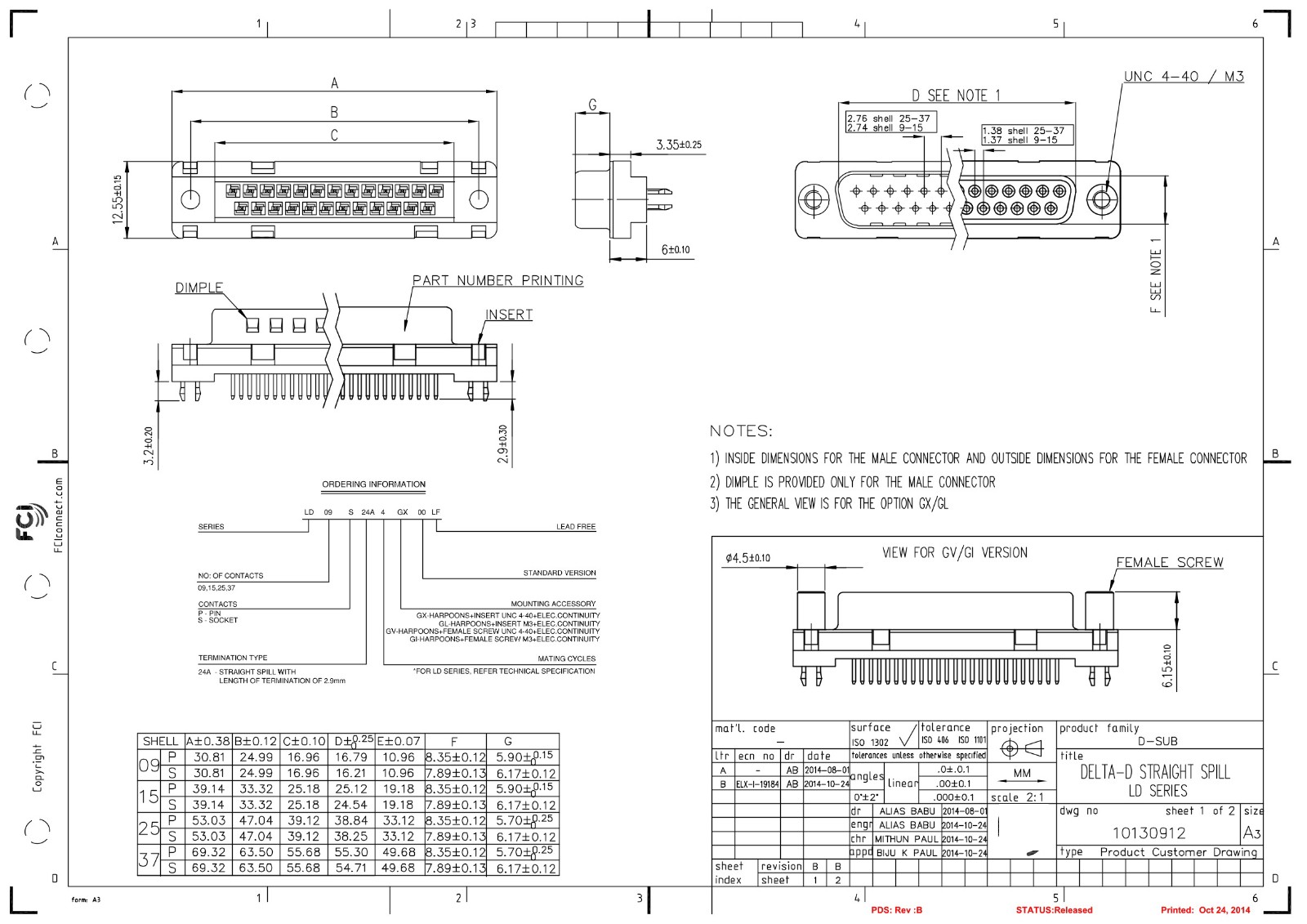

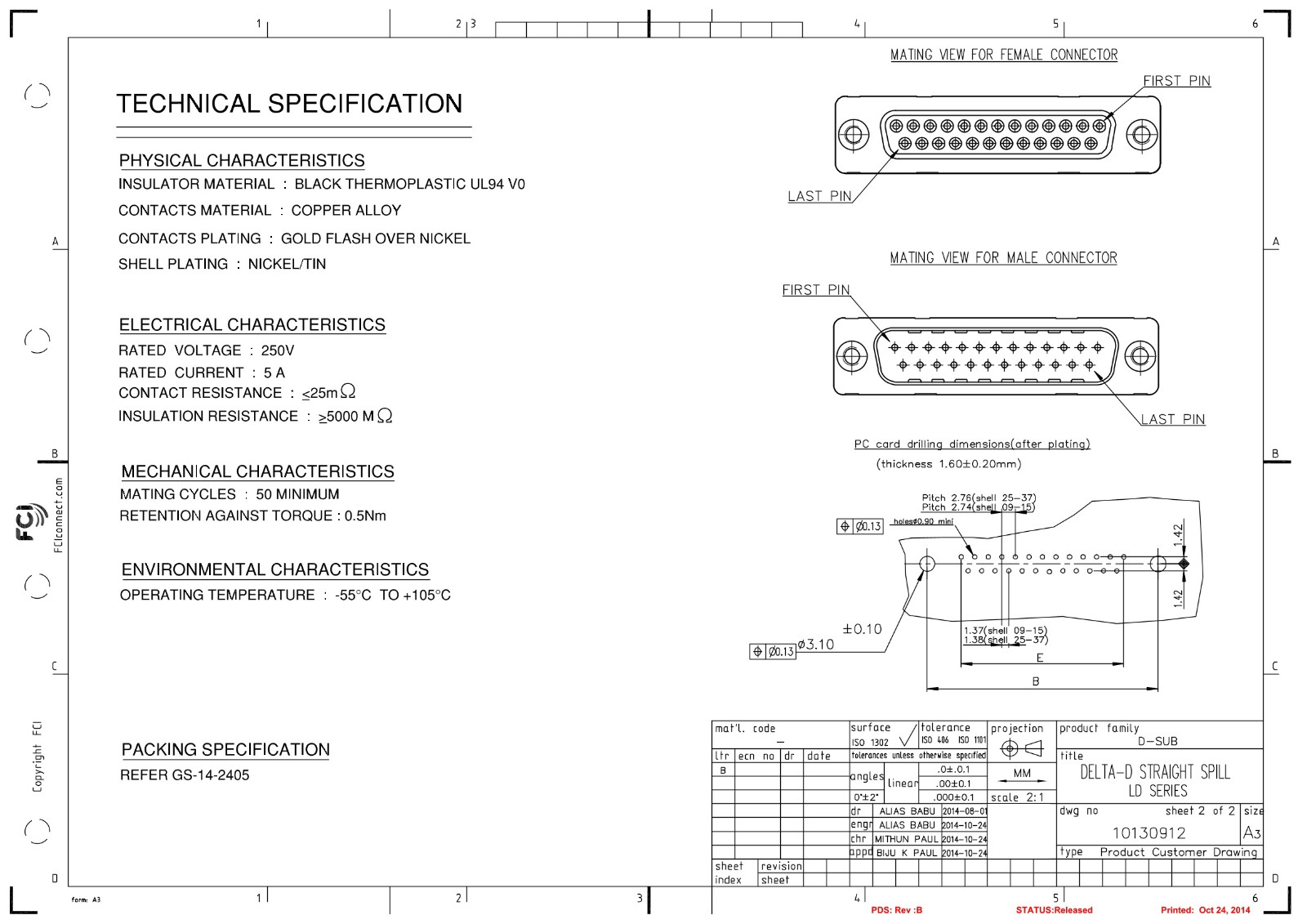

Product datasheet
For more information, please download
