Product Details
VCO for UHF Band Radio
• Ultra low series resistance: rs = 0.2 Ω (typ.)
• Useful for small size set
Product Description
| Type# | Description |
| ANSC PART# | ANSC-1SV229 |
| Manufacturer | / |
| Part Package | SOD |
| Package Description | 1-1E1A, 2 PIN |
| Pin Count | 2 |
| Samacsys Manufacturer | / |
| Breakdown Voltage-Min | 15 V |
| Configuration | SINGLE |
| Diode Cap Tolerance | 6.67% |
| Diode Capacitance Ratio-Min | 2 |
| Diode Capacitance-Nom | 15 pF |
| Diode Element Material | SILICON |
| Diode Type | VARIABLE CAPACITANCE DIODE |
| Frequency Band | ULTRA HIGH FREQUENCY |
| JESD-30 Code | R-PDSO-G2 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 125 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 15 V |
| Reverse Current-Max | 0.003 µA |
| Reverse Test Voltage | 15 V |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Variable Capacitance Diode Classification | ABRUPT |

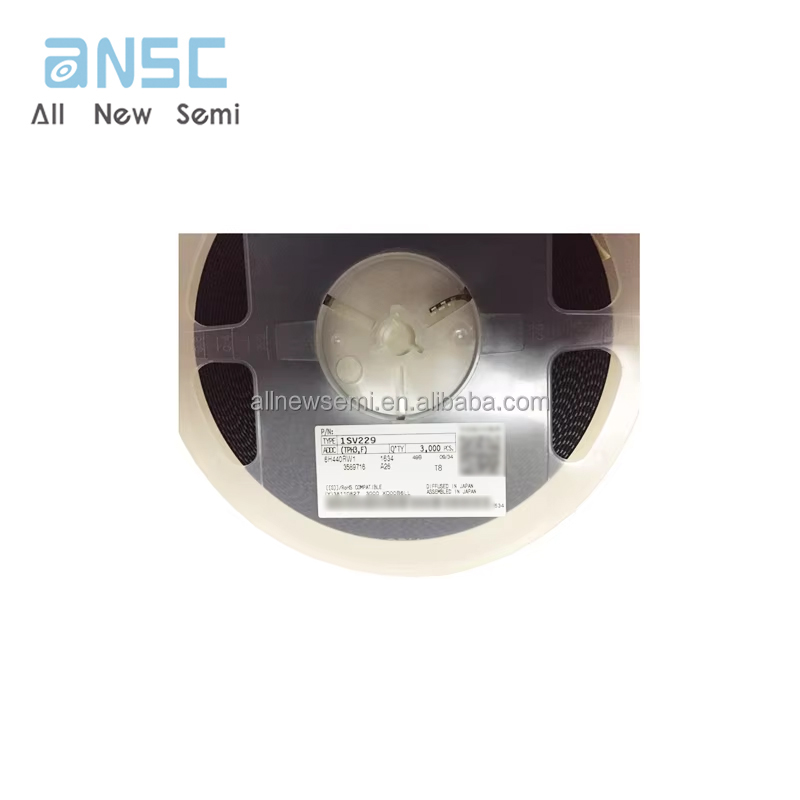

Product Photos

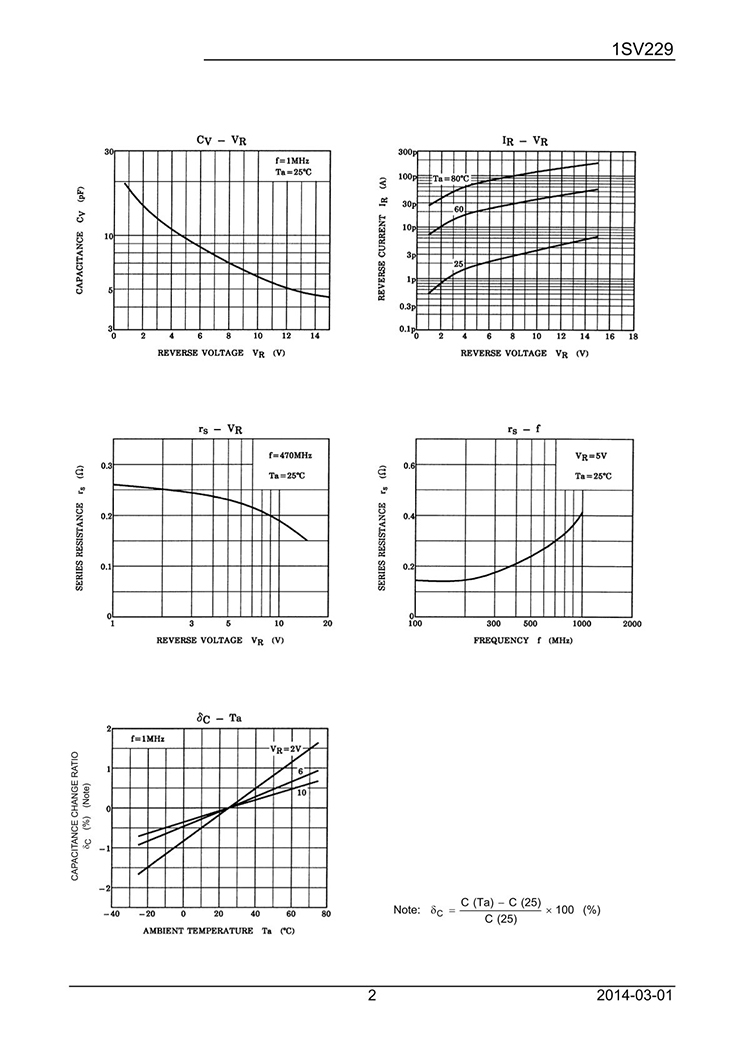

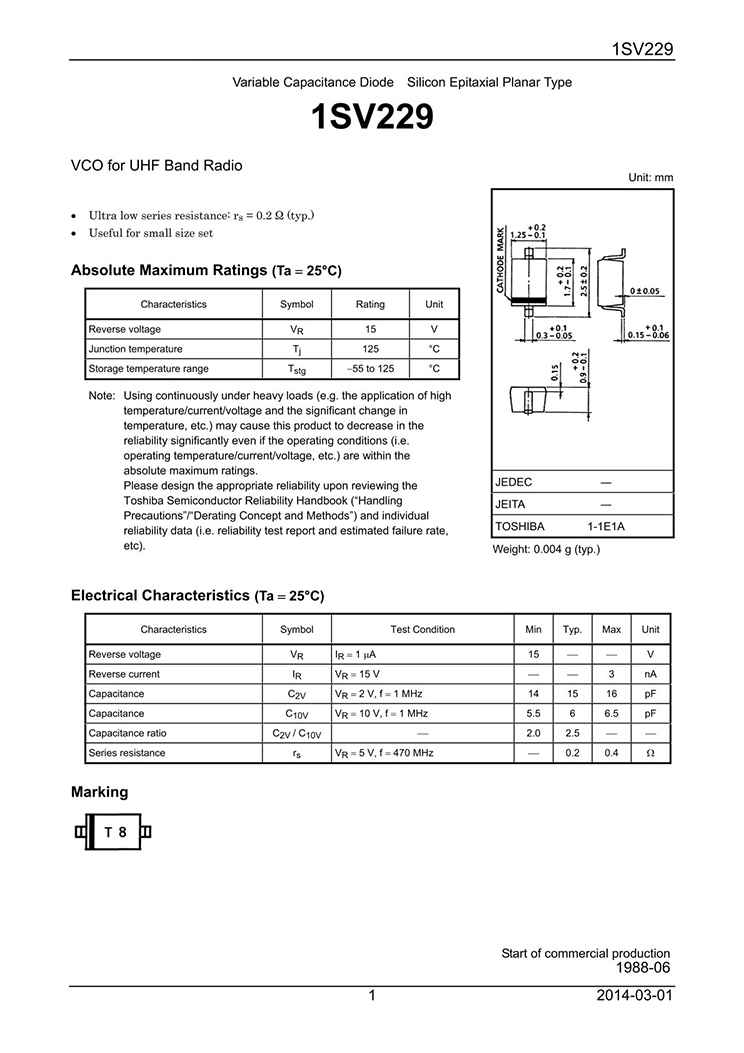

Product datasheet
For more information, please download
