Product Details
Description
The PD55015-E is a common source N-channel, enhancement-mode lateral field-effect RF power transistor. It is designed for high gain, broad band commercial and industrial applications. It operates at 12 V in common source mode at frequencies of up to 1 GHz. The PD55015-E boasts the excellent gain, linearity and reliability thanks to ST’s latest LDMOS technology mounted in the first true SMD plastic RF power package, the PowerSO-10RF.
The PD55015-E’s superior linearity performance makes it an ideal solution for car mobile radios.
The PowerSO-10RF plastic package is designed for high reliability, and is the first JEDECapproved, high power SMD package from ST. It has been optimized for RF requirements and offers excellent RF performance and ease of assembly.
Features
■ Excellent thermal stability
■ Common source configuration
■ POUT =15 W with 14dB gain @ 500 MHz/12.5 V
Product Description
| Type# | Description |
| ANSC PART# | ANSC-PD55015-E |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| RF FETs, MOSFETs | |
| Manufacturer | / |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Technology | LDMOS |
| Frequency | 500MHz |
| Gain | 14dB |
| Voltage - Test | 12.5 V |
| Current Rating (Amps) | 5A |
| Noise Figure | - |
| Current - Test | 150 mA |
| Power - Output | 15W |
| Voltage - Rated | 40 V |
| Package / Case | PowerSO-10RF Exposed Bottom Pad (2 Formed Leads) |
| Supplier Device Package | PowerSO-10RF (Formed Lead) |
| Base Product Number | PD55015 |
Product Photos

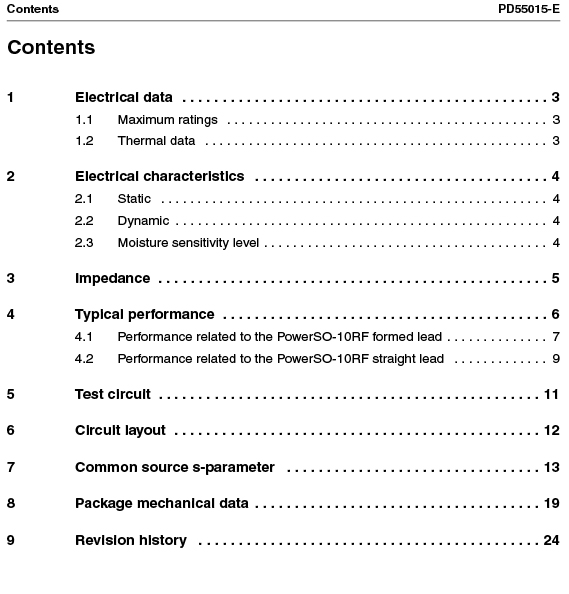

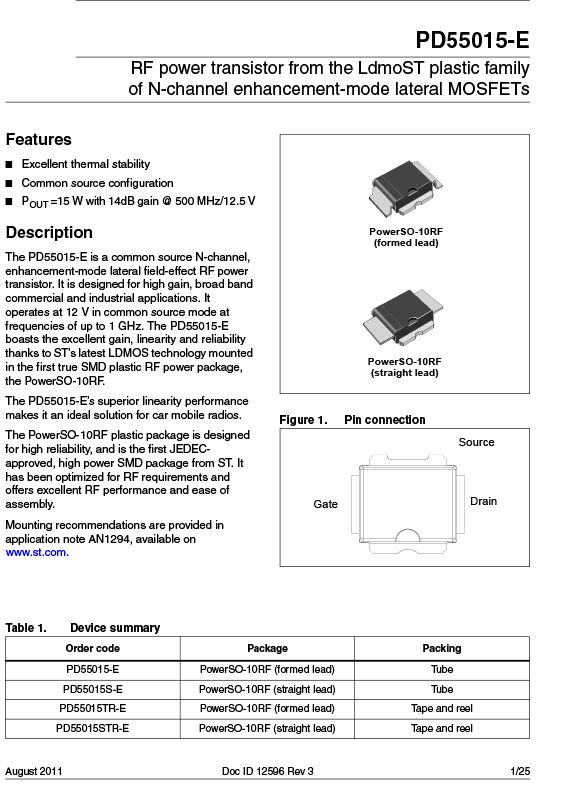

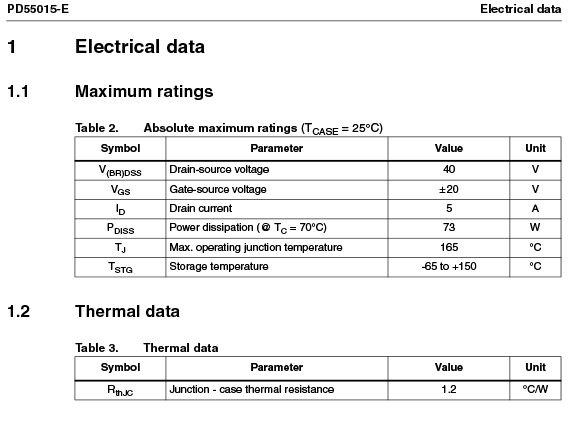

Product datasheet
