Product Description

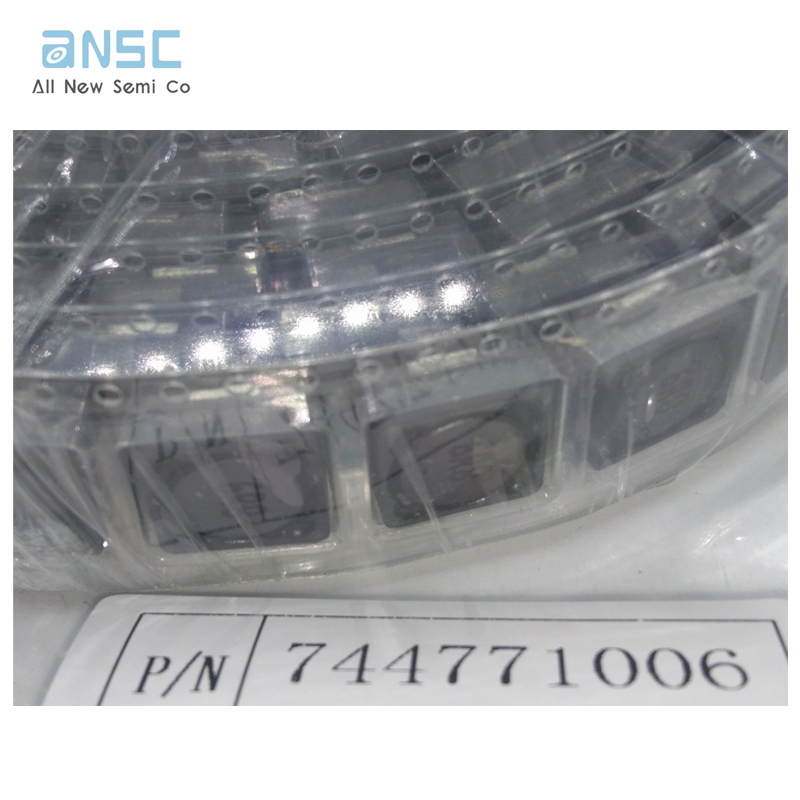

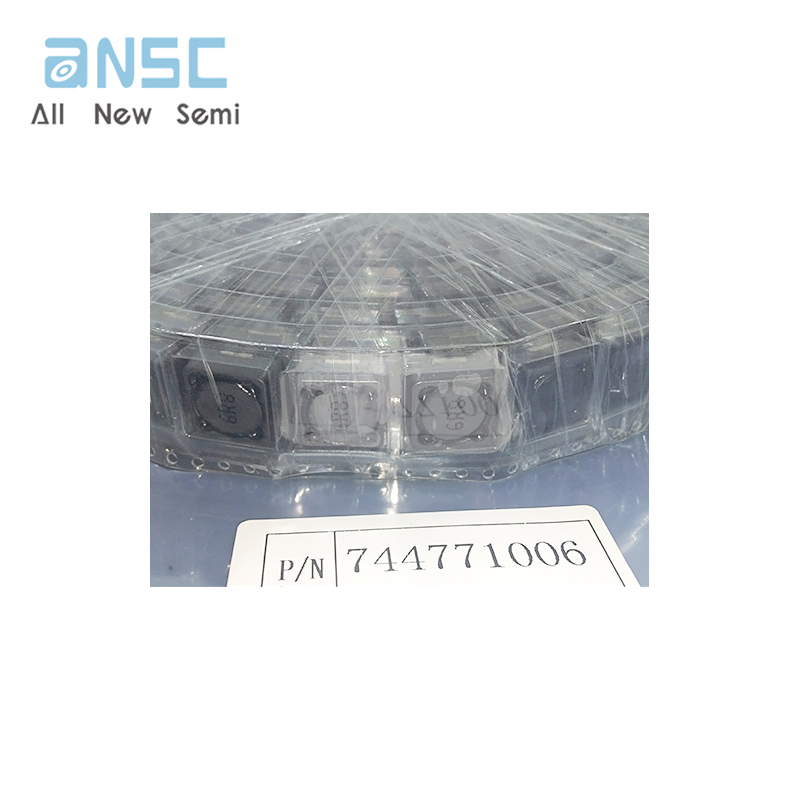

Description: The Würth Elektronik 744771006 is a high-performance, shielded, wirewound fixed inductor designed for surface mount applications. This inductor is part of the WE-PD series and is engineered to provide reliable performance in a wide range of electronic circuits. With its ferrite core and robust construction, it is ideal for use in high-frequency applications where minimal DC resistance and high inductance are crucial.

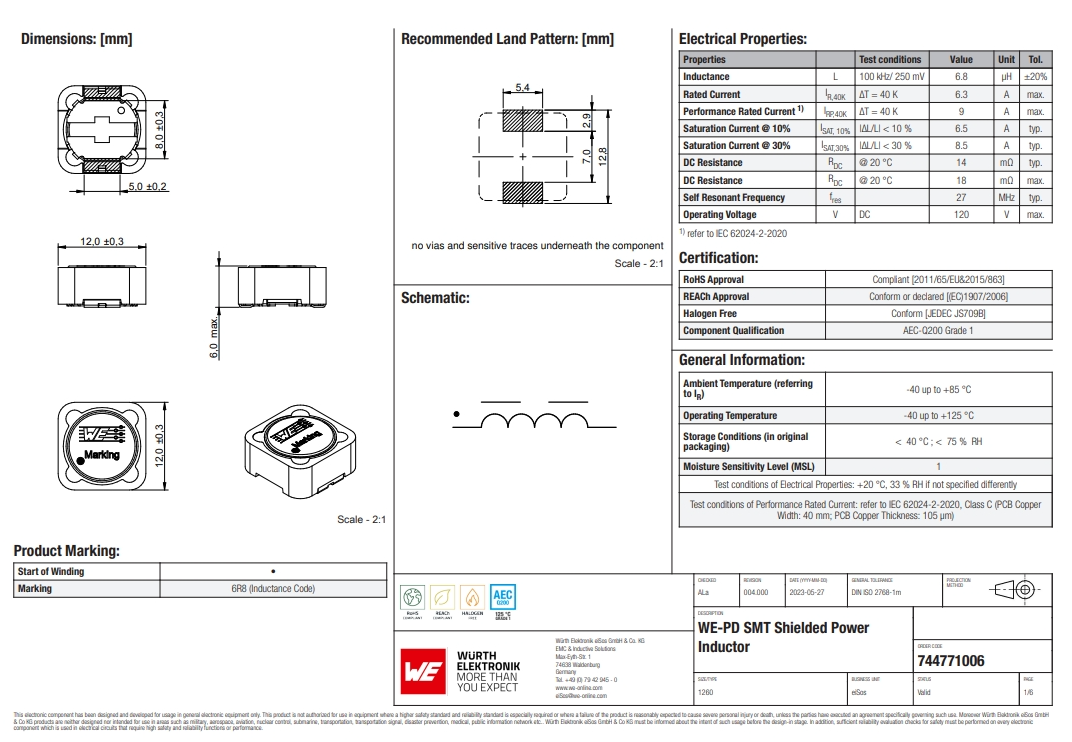

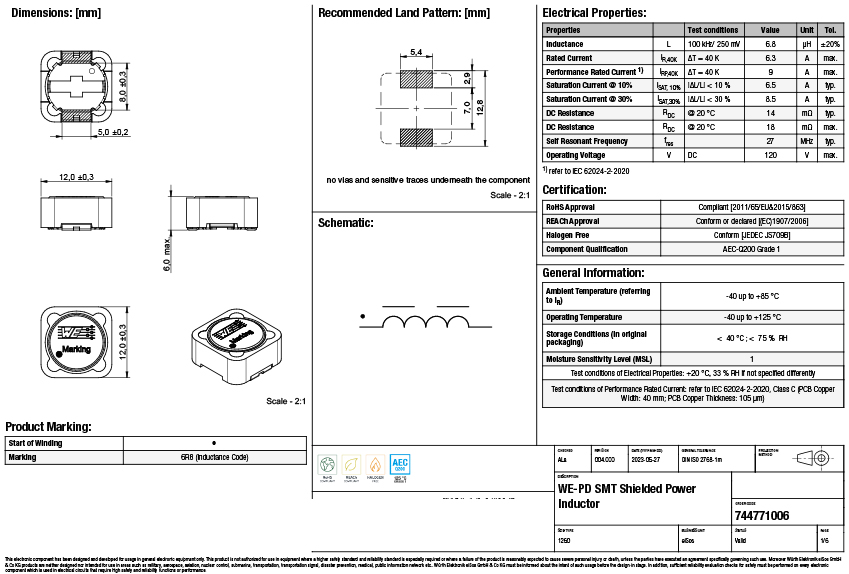

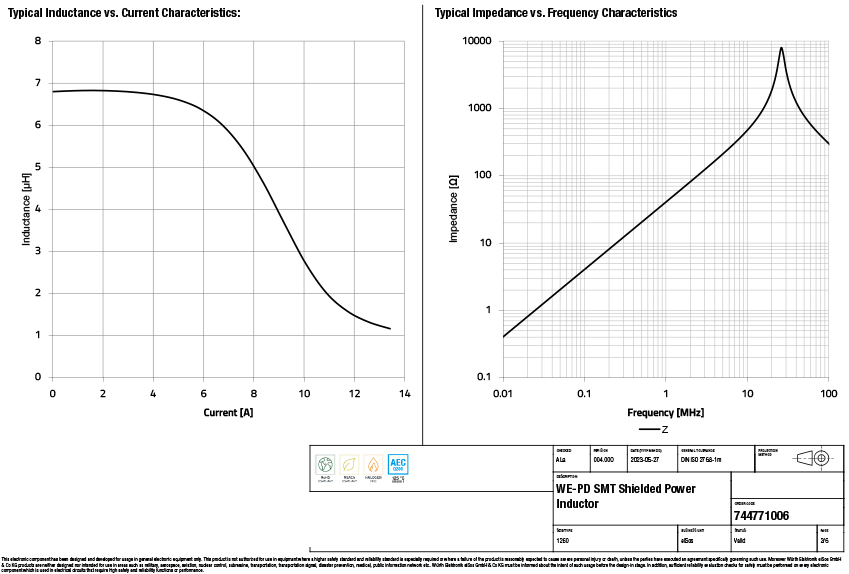

Features: - High Current Rating: The inductor has a current rating of 6.25A, ensuring it can handle demanding power supply requirements. - Low DC Resistance: The maximum DC resistance (DCR) is 22mOhm, making it suitable for applications where low resistance is essential. - Frequency-Self-Resonant: Operating up to a frequency-self-resonant point of 27MHz, this inductor is perfect for high-frequency applications. - Compact Design: Measuring 0.472L x 0.472W (12.00mm x 12.00mm), it offers a compact footprint suitable for surface mount technology (SMT). - Operating Temperature Range: The inductor operates within the temperature range of -40°C to 125°C, providing flexibility in various environmental conditions. - RoHS3 Compliant: Ensuring compliance with the latest environmental regulations, this inductor is RoHS3 compliant. - AEC-Q200 Ratings: Meeting AEC-Q200 standards, it is suitable for automotive applications requiring high reliability.

Applications: 1. Primary Applications: - Power Supply Filtering: The inductor's high inductance and low DC resistance make it ideal for filtering and smoothing power supply lines in various electronic systems. - High-Frequency Circuits: Its frequency-self-resonant point of 27MHz makes it suitable for use in high-frequency circuits such as those found in wireless communication devices. - Automotive Electronics: The AEC-Q200 ratings ensure that this inductor can be used in automotive applications where reliability and durability are critical.

1. Secondary Applications:

2. Audio Equipment: The inductor's performance characteristics make it suitable for use in audio equipment where high-frequency filtering is necessary.

3. Medical Devices: Its compact design and high reliability make it a good fit for medical devices requiring precise electronic control.
