Product Details
|
Description These devices have been designed to meet the increasing demand for surface mounting technology. The package of the TLM.310. is the P–LCC–2 (equivalent to a size B tantalum capacitor). It consists of a lead frame which is embedded in a white thermoplast. The reflector inside this package is filled up with clear epoxy. Features ● SMD LEDs with exceptional brightness ● Luminous intensity categorized ● Compatible with automatic placement equipment ● EIA and ICE standard package ● Compatible with infrared, vapor phase and wave solder processes according to CECC ● Available in 8 mm tape ● Low profile package ● Non-diffused lens: excellent for coupling to light pipes and backlighting ● Low power consumption ● Luminous intensity ratio in one packaging unit IVmax/IVmin ≦ 2.0, optional ≦ 1.6 Applications Automotive: backlighting in dashboards and switches Telecommunication: indicator and backlighting in telephone and fax Indicator and backlight for audio and video equipment Indicator and backlight in office equipment Flat backlight for LCDs, switches and symbols General use |
Product Description
|
TYPE |
DESCRIPTION |
|---|---|
|
ANSC PART# |
ANSC- TLMG1100-GS08 |
|
Category |
Optoelectronics LED Indication - Discrete |
|
Mfr |
- |
|
Series |
- |
|
Package |
Tape & Reel (TR) Cut Tape (CT) |
|
Product Status |
Discontinued at Digi-Key |
|
Color |
Green |
|
Configuration |
Standard |
|
Lens Color |
- |
|
Lens Transparency |
- |
|
Millicandela Rating |
35mcd |
|
Lens Style |
Rectangle with Flat Top |
|
Lens Size |
1.60mm x 0.80mm |
|
Voltage - Forward (Vf) (Typ) |
2.1V |
|
Current - Test |
20mA |
|
Viewing Angle |
160° |
|
Mounting Type |
Surface Mount |
|
Wavelength - Dominant |
570nm |
|
Wavelength - Peak |
572nm |
|
Features |
- |
|
Grade |
Automotive |
|
Qualification |
AEC-Q101 |
|
Package / Case |
0603 (1608 Metric) |
|
Supplier Device Package |
0603 |
|
Size / Dimension |
1.60mm L x 0.80mm W |
|
Height (Max) |
0.65mm |
|
Base Product Number |
TLMG1100 |

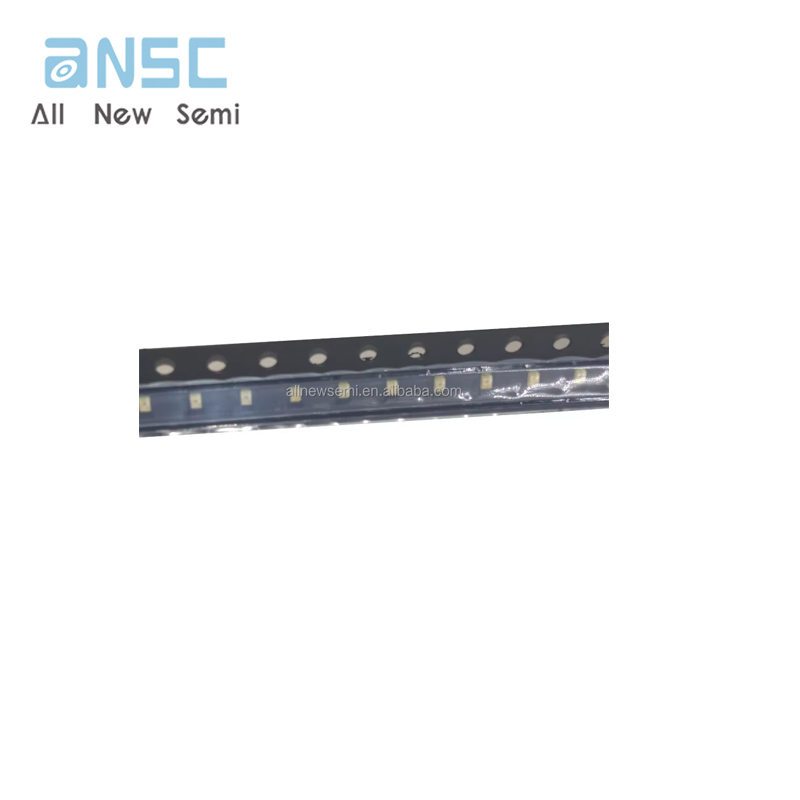

Actual image of the product

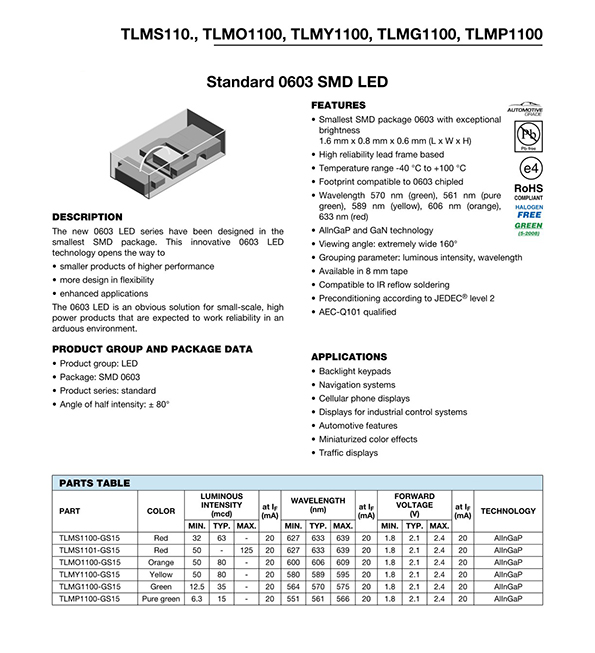

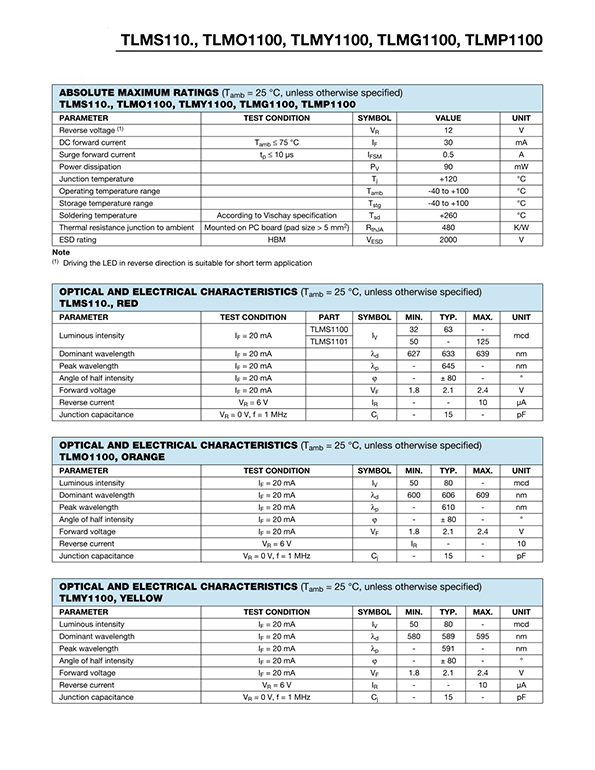

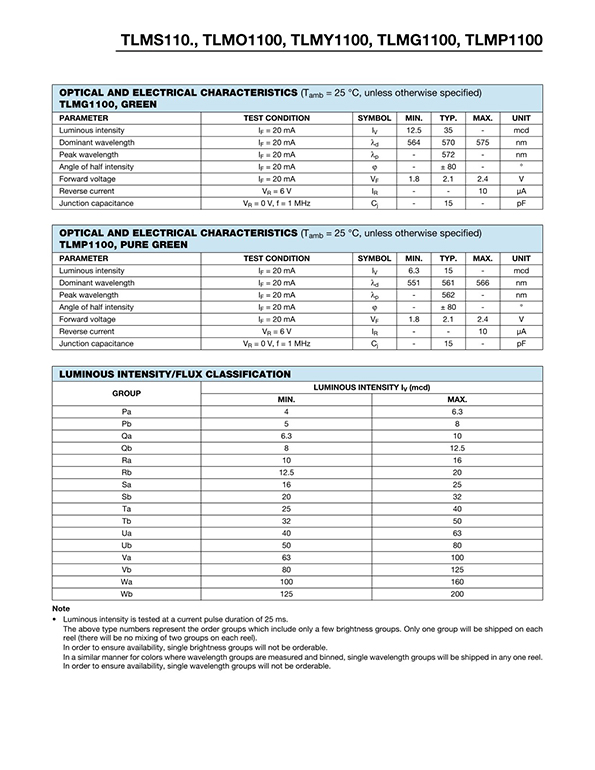

Product datasheet
For more information, please download
