Product Overview
Devices with this rating have an average rectified current of 60A volts.60A is the maximum value of forward current.The fuse's current rating is 60A, which is the maximum current the fuse can handle for an indefinite time without deteriorating too much.There can be no surge current above 600A.Using the data chart, the peak reverse is 250μA in the datasheets.
Product Features
an average rectified current of 60A volts
a current rating of 60A
the peak reverse is 250μA
Product Applications
APT60D60BG applications of single-phase diode rectifier.
DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
Product Description
| Type | Description |
| ANSC PART# | ANSC - APT60D60BG |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 60A |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 60 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 130 ns |
| Current - Reverse Leakage @ Vr | 250 µA @ 600 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-2 |
| Supplier Device Package | TO-247 [B] |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | APT60D60 |

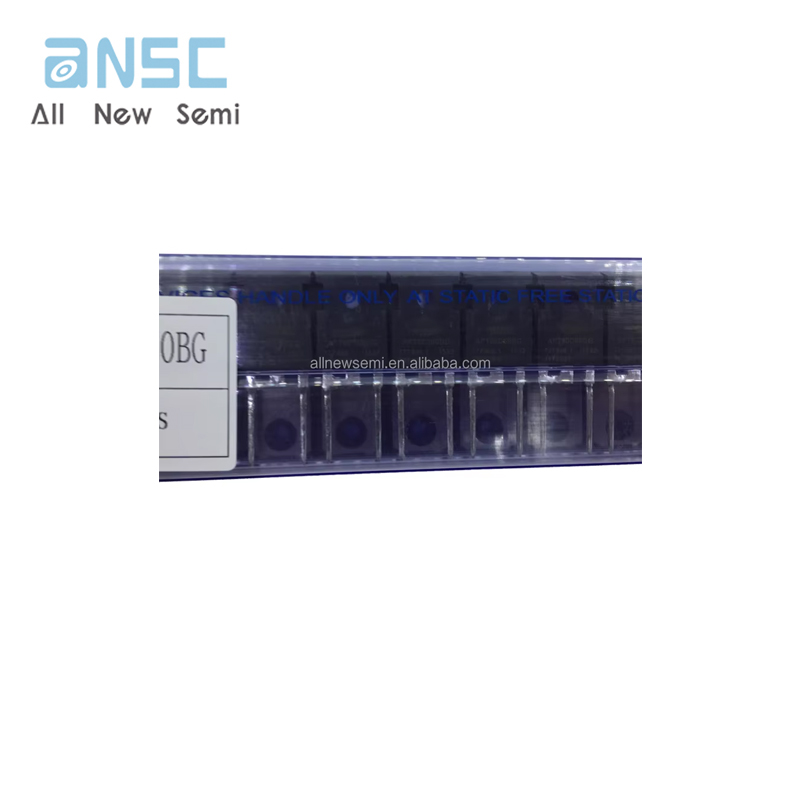

Product Photos

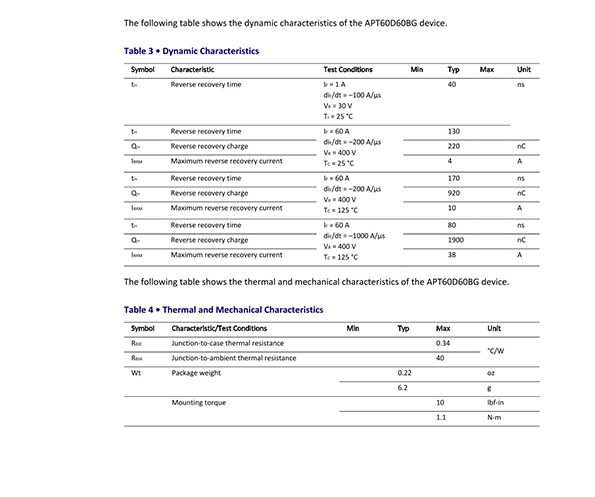

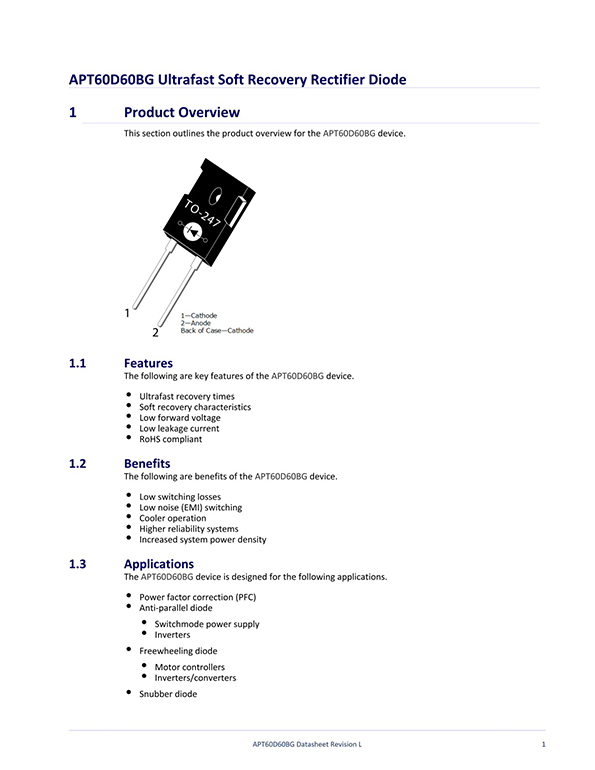

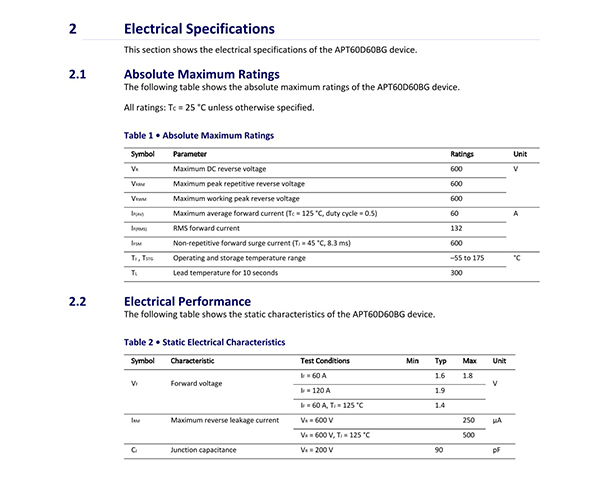

Product datasheet
For more information, please download
