Product Details
|
Brief Description: The VS-MBRS1100-M3/5BT is a surface-mount Schottky rectifier diode from Vishay Semiconductor Diodes Division. It is designed for free-wheeling applications and features a fast recovery time of less than 500ns. Features: Schottky diode with a forward voltage of 780mV and a forward current of 1A Fast recovery time of less than 500ns Reverse voltage rating of 100V Reverse leakage current of 500μA at 100V Operating temperature range of -55°C to 175°C Surface-mount package (DO-214AA, SMB) RoHS3 compliant and not compliant with REACH SVHC ECCN code EAR99 and HTS code 8541.10.00.80 Application Grade: The VS-MBRS1100-M3/5BT is suitable for high-frequency, high-current applications such as: Free-wheeling diodes in power supplies High-speed switching applications High-frequency rectification Applications: Power supplies Switching power supplies High-frequency rectifiers Free-wheeling diodes High-speed switching applications Key Information: Average rectified current: 1A Capacitance: 42pF at 5V and 1MHz Contact plating: Tin Forward voltage: 780mV Reverse voltage: 100V Operating temperature range: -55°C to 175°C Package: DO-214AA, SMB Mounting type: Surface mount Number of elements: 1 Number of pins: 2 Number of terminations: 2 Speed: Fast recovery (<= 500ns, > 200mA (Io)) |
Product Description
| Type | Description |
| ANSC PART# | ANSC - VS-MBRS1100-M3/5BT |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 780 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 500 µA @ 100 V |
| Capacitance @ Vr, F | 42pF @ 5V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) |
| Operating Temperature - Junction |
-55°C ~ 175°C |
| Base Product Number | MBRS1100 |

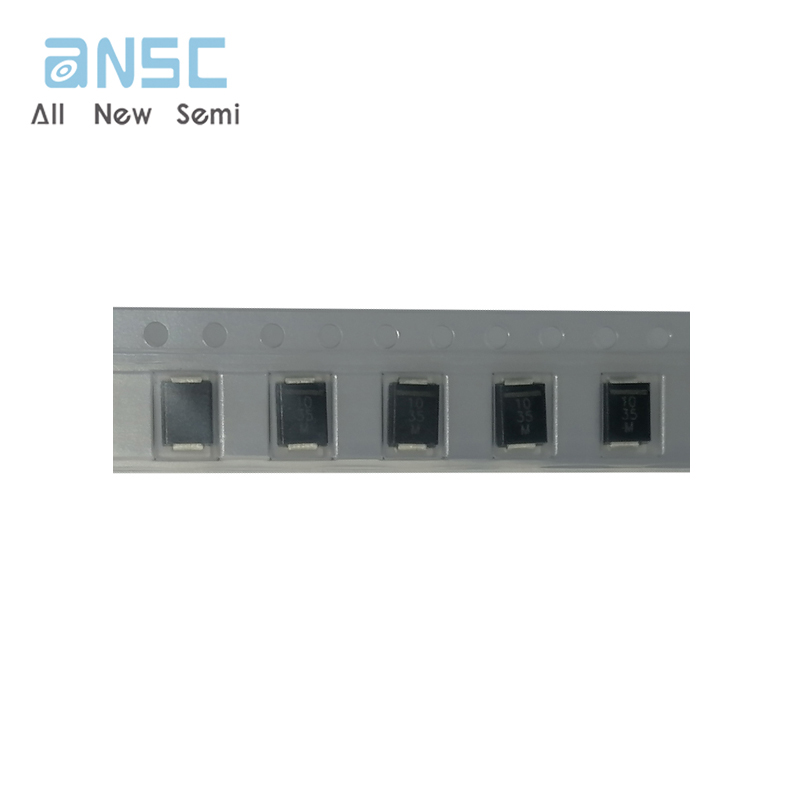

Product Photos

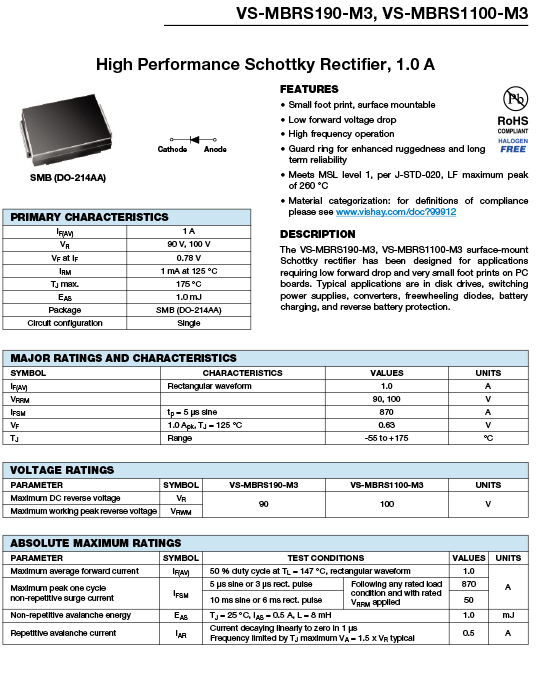

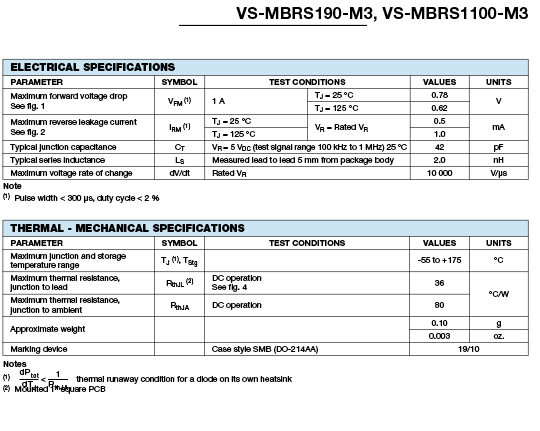

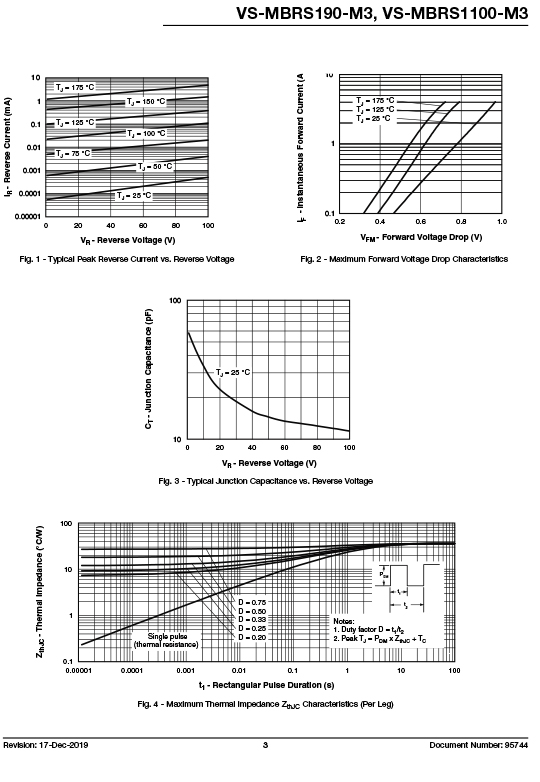

Product datasheet
For more information, please download
