Product Details
MLCC(Multilayer Ceramic Capacitor) is SMD(Surface Mounted Device) type capacitor that is used in wide ranges of capacitance. MLCC is paid more attentions than other capacitors due to thebetter frequency characteristics, higher reliability, higher withstanding voltage and so on.
● Feature
- Miniature Size
- Wide Capacitance and Voltage Range
- Highly Reliable Performance
- Tape & Reel for Surface Mount Assembly
- Low ESR
- High Q at High Frequencies
- Stable Temperature Dependence of Capacitance
● Application
- High Frequency Circuit(Tuner, VCO, PAM etc)
- General Power Supply Circuit(SMPS etc)
- DC-DC Converter
- General Electronic Circuit
Product Description
CAP CER 56PF 50V C0G/NP0 0603 56 pF ±5PV Ceramic Capacitor C0G, NP0 0603 (1608 Metric)
ANSC PART# | ANSC- CL10C560JB8NNNC |
Part# | CL10C560JB8NNNC |
Type： | Capacitors |
Manufactor | Samsung Electro-Mechanics |
DC | new |
Package / Case | 0603 |
Supplier Device Package | Tape & Reel (TR)Cut Tape (CT) |

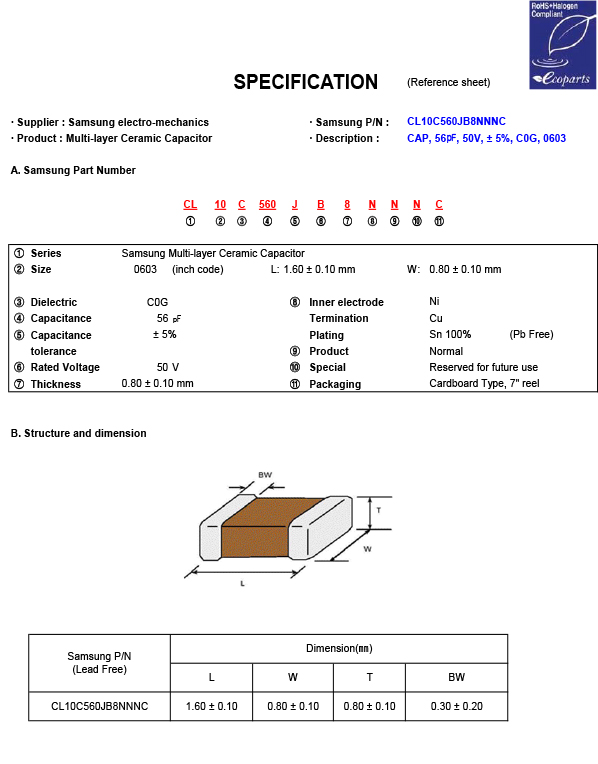

Specifications
| TYPE | DESCRIPTION | ||
| Category | Capacitors | ||
| Ceramic Capacitors | |||
| Mfr | Samsung Electro-Mechanics | ||
| Series | CL | ||
| Package | Tape & Reel (TR) | ||
| Cut Tape (CT) | |||
| - | |||
| Product Status | Active | ||
| Capacitance | 56 pF | ||
| Tolerance | 卤5% | ||
| Voltage - Rated | 50V | ||
| Temperature Coefficient | C0G, NP0 | ||
| Operating Temperature | -55掳C ~ 125掳C | ||
| Features | - | ||
| Ratings | - | ||
| Applications | General Purpose | ||
| Failure Rate | - | ||
| Mounting Type | Surface Mount, MLCC | ||
| Package / Case | 0603 (1608 Metric) | ||
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | ||
| Height - Seated (Max) | - | ||
| Thickness (Max) | 0.035" (0.90mm) | ||
| Lead Spacing | - | ||
| Lead Style | - |

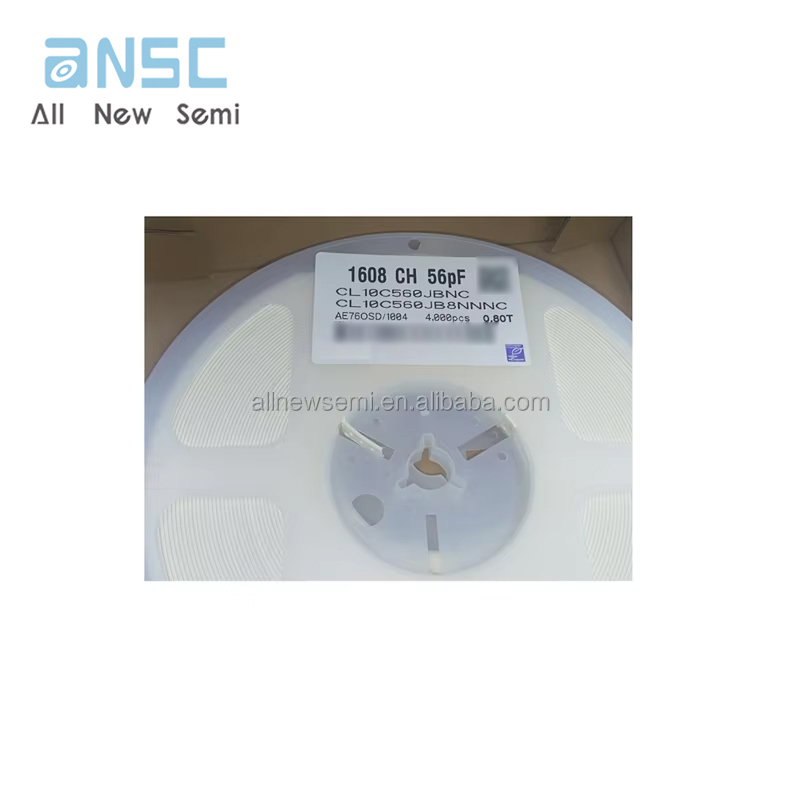

Actual image of the product
