Product Details
|
Product Description: The 0603ZC224JAT2A is a ceramic capacitor manufactured , designed for general-purpose applications. This surface-mount multilayer ceramic capacitor (MLCC) is part of the company's extensive range of capacitors and is compliant with the RoHS3 directive. Features: Capacitance: 0.22 μF Capacitor type: Ceramic capacitor Case code: 0603 (1608 metric) Contact plating: Tin Dielectric material: Ceramic Dissipation factor: 5 Operating temperature: -55°C to 125°C Voltage - rated DC: 10V Tolerance: ±5 Temperature characteristics: X7R Temperature coefficient: X7R Thickness: 889 μm Thickness (max): 0.035 mm (0.90 mm) Lead-free: Yes REACH SVHC: No SVHC Radiation hardening: No RoHS status: RoHS3 compliant Applications: General-purpose applications Secondary applications include automotive, industrial, and consumer electronics |
Product Description
| Type | Description |
| ANSC PART# | ANSC - 0603ZC224JAT2A |
| Manufacturer | Original |
| Part Package | 603 |
| Package Description | CHIP |
| Factory Lead Time | 111 Weeks |
| Capacitance | 0.22 µF |
| Capacitor Type | CERAMIC CAPACITOR |
| Dielectric Material | CERAMIC |
| Height | 0.9 mm |
| Length | 1.6 mm |
| Mounting Feature | SURFACE MOUNT |
| Multilayer | Yes |
| Negative Tolerance | 5% |
| Number of Terminals | 2 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min |
-55 °C |
| Package Shape | RECTANGULAR PACKAGE |
| Package Style | SMT |
| Packing Method | TR, PAPER, 7 INCH |
| Positive Tolerance | 5% |
| Rated (DC) Voltage (URdc) | 10 V |
| Size Code | 603 |
| Surface Mount | YES |
| Temperature Characteristics Code | X7R |
| Temperature Coefficient | 15% ppm/°C |
| Terminal Finish | MATTE TIN OVER NICKEL |
| Terminal Shape | WRAPAROUND |
| Width | 0.81 mm |

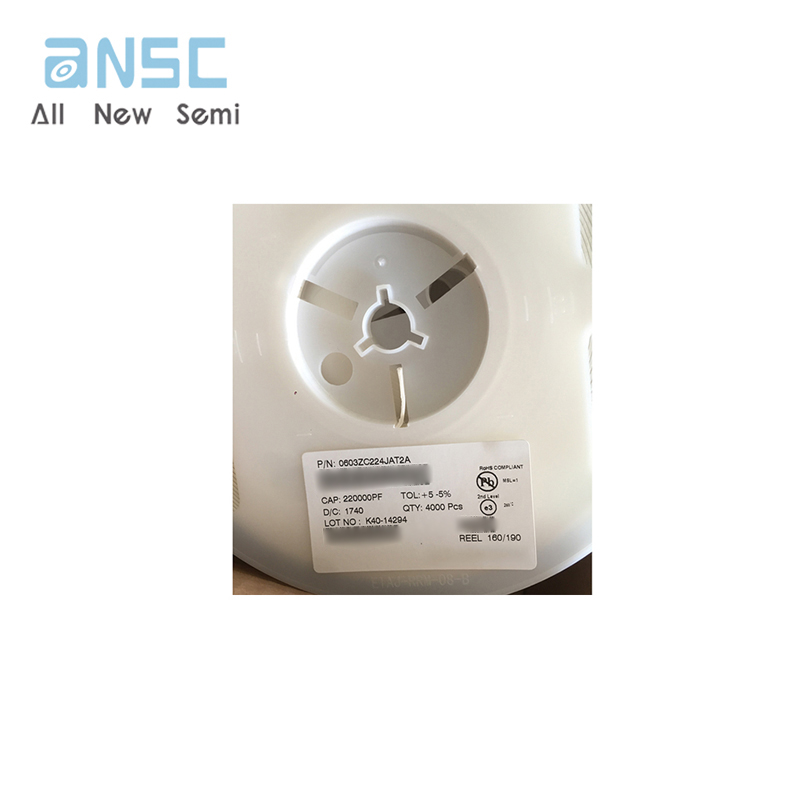

Actual image of the product

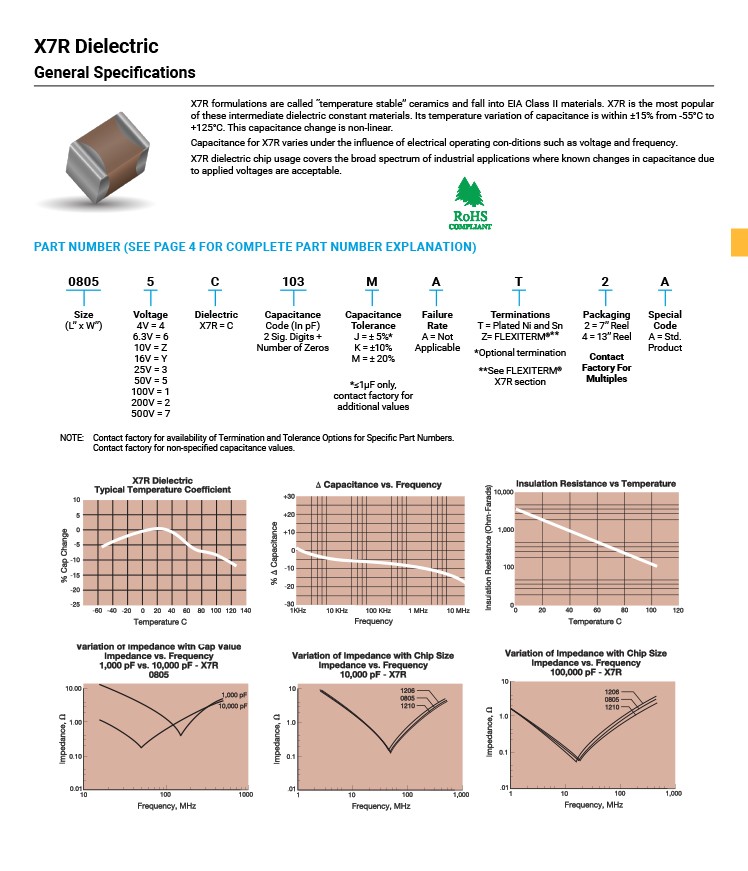

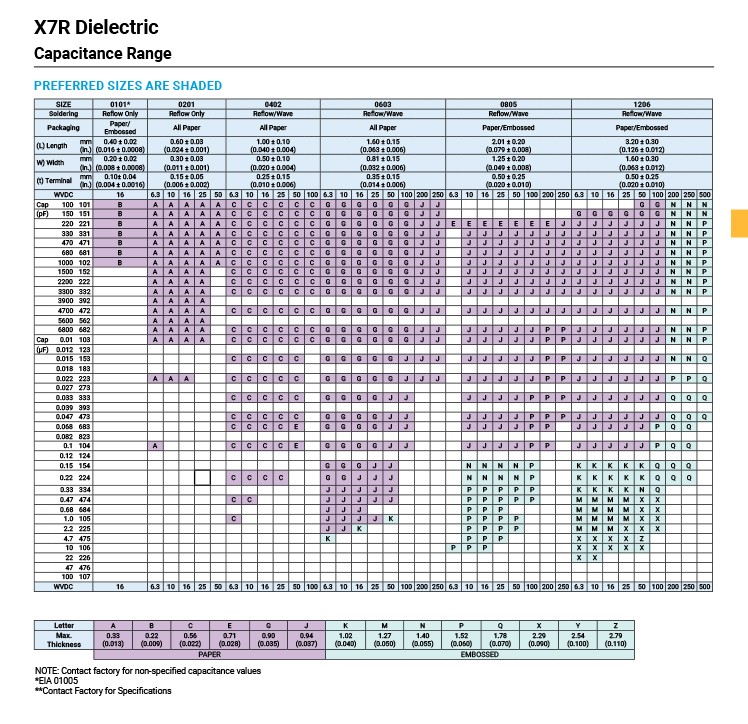

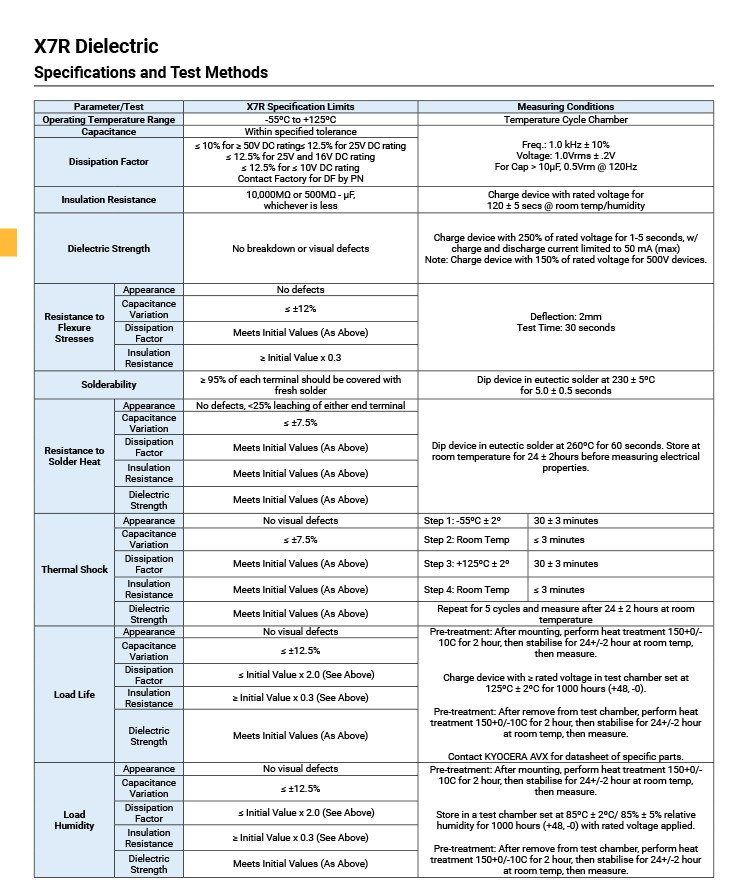

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
