Product Details
| 1. Description The ABS06-127-32.768KHZ-T crystal oscillator is a high-precision, surface-mount crystal designed for industrial-grade applications. This 32.768 kHz crystal oscillator features a fundamental operating mode and is packaged in a compact 2-SMD, no-lead package. It is ideal for use in a variety of timing and frequency control applications where reliability and stability are paramount. 2. Features Frequency: 32.768 kHz Frequency Tolerance: ±20 ppm ESR (Equivalent Series Resistance): 90 kOhm Load Capacitance: 12.5 pF Operating Temperature Range: -40°C to 85°C Mounting Type: Surface Mount Package / Case: 2-SMD, No Lead Packaging: Tape & Reel (TR) RoHS Status: RoHS Compliant Usage Level: Industrial grade 3. Applications The ABS06-127-32.768KHZ-T crystal oscillator is suitable for a wide range of applications including: Primary Applications: - Real-Time Clocks (RTC): This crystal is commonly used in RTC modules due to its high stability and accuracy. - Wearable Devices: Its compact size and low power consumption make it an excellent choice for wearable devices such as smartwatches. - Industrial Control Systems: The crystal's high reliability ensures consistent timing in industrial control systems. Secondary Applications: - Medical Devices: Used in medical devices that require precise timing for data logging or synchronization. - Automotive Systems: Integrated into automotive systems for reliable timing and control functions. - Consumer Electronics: Employed in various consumer electronics such as smartphones, tablets, and smart home devices. |
Product Description
| Type | Description |
| Part# | ABS06-127-32.768KHZ-T |
| Category | Crystals, Oscillators, Resonators |
| Crystals | |
| Mfr | Original |
| Series | ABS06 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | kHz Crystal (Tuning Fork) |
| Frequency | 32.768 kHz |
| Frequency Stability | - |
| Frequency Tolerance | ±20ppm |
| Load Capacitance | 12.5pF |
| ESR (Equivalent Series Resistance) | 90 kOhms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |

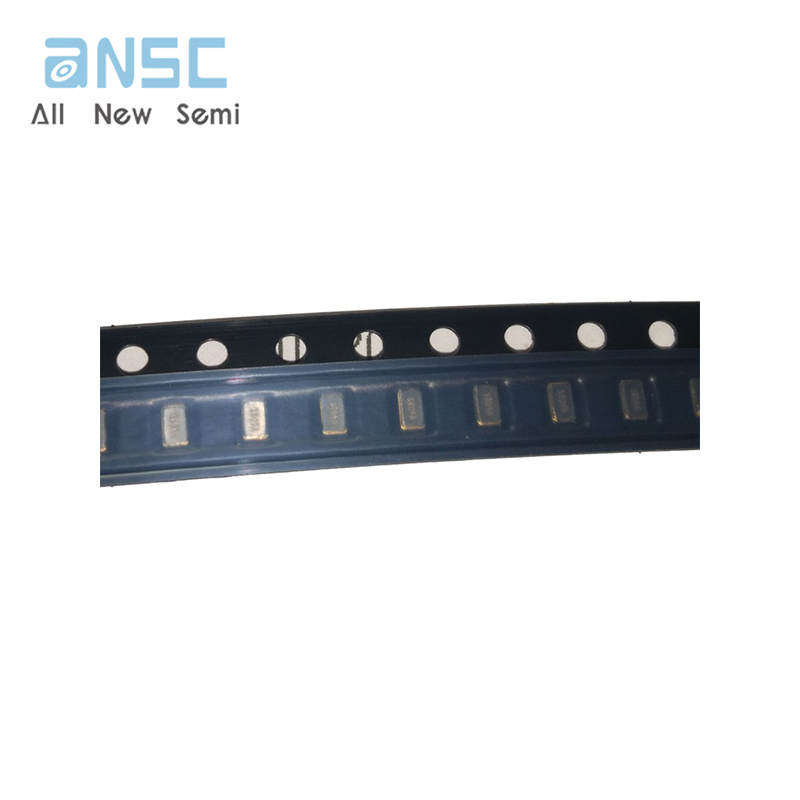

Product Photos

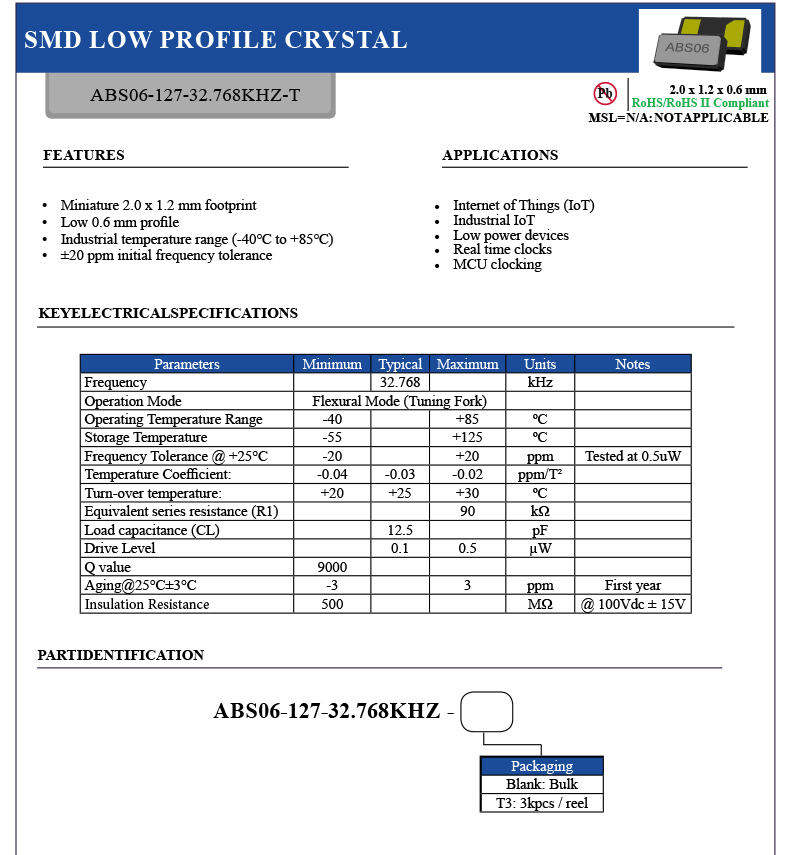

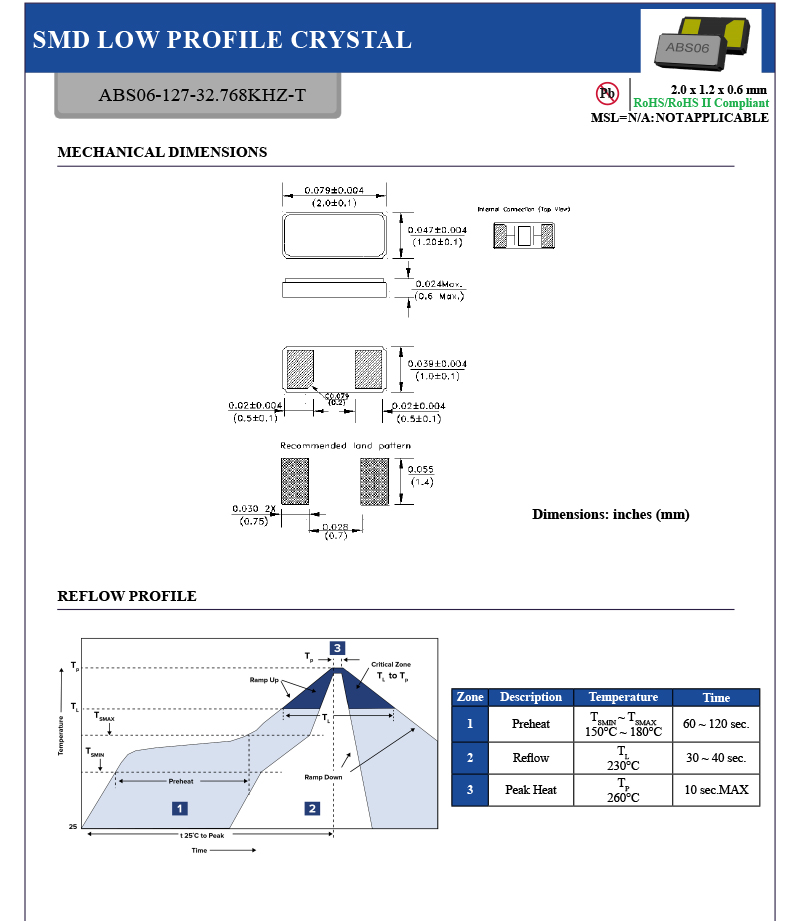

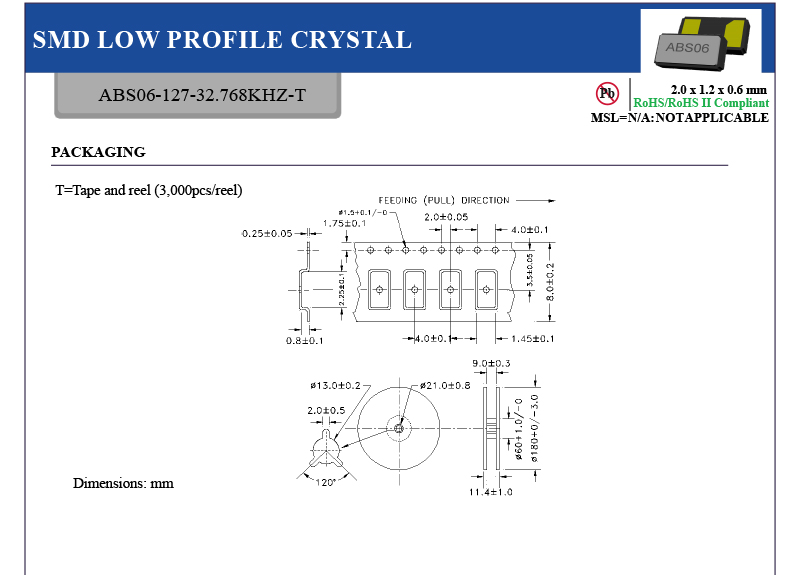

Product datasheet
For more information, please download
