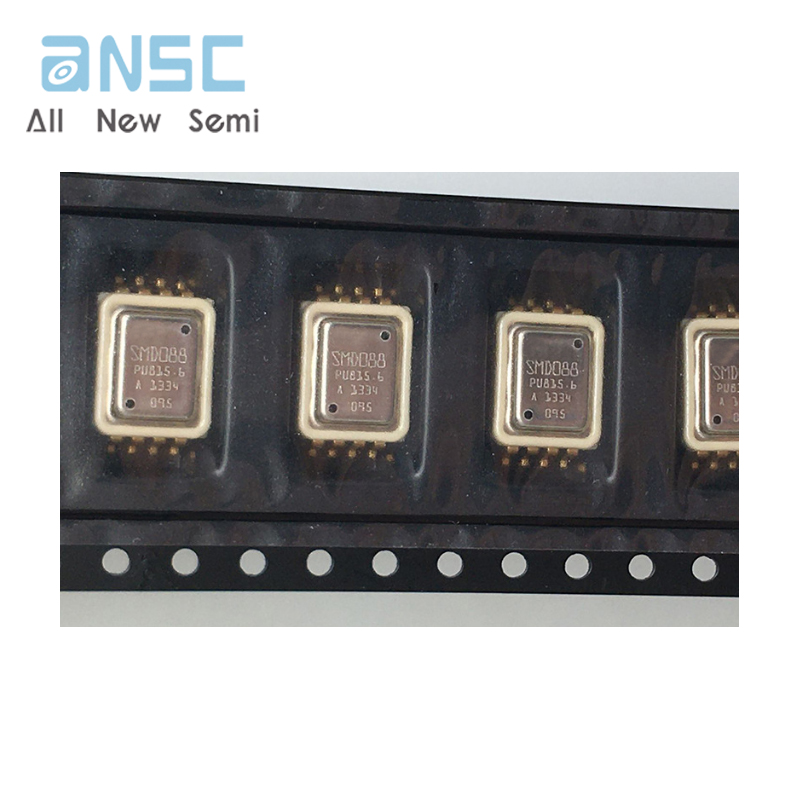

Product Introduction

Bosch is the world market leader for pressure sensors in automotive applications. The SMD08x are a new family of a wide range of

micromachined pressure sensors.

They are one of the first pressure sensors for barometric air pressure which comes in an SMD package. It is easy to equip in standard assembly

lines.

Product Function

The SMD08x are high precision barometric pressure sensors for automotive applications. The mess principle is based on piezoresistive

technology. With this technology we realized a very robust design and a high accuracy. To reach the cost targets the SMD085 is packaged in a

SMD8 Housing. The main application for this device is the barometric air pressure measurement in diesel or gasoline engine management

control Units.

The SMD08x schematics consist on an integrated sensing element, a logic control unit, a temperature compensation circuit as well as offset

compensation circuit. The Output Voltage will be between 0.3V and 4.8V for a pressure range between 60 kPa and 115 kPa.

Due to the full integrated concept no additional external circuits are necessary. The Bipolar technology of the integrated signal condition circuit

guarantees a high ESD protection.
