Product Details
HR911105A Description
HR911105A - Single Port RJ45 Connector with Integrated Magnetics and LEDs. RJ45 standard connector for network related hardware applications.
HR911105A Features
Designed for Network Interface Card Application.
Meets or Exceeds IEEE802.3 standards including 350uH Min OCL with 8mADC.
High performance for EMI suppression, Crosstalk, Return Loss and Consistent Electrical.
Minimum 1500Vrms isolation per IEEE802.3 requirement.
Minimize PCB space and Simplify PCB Layout.
Less magnetic components to place on PCB, Higher reliability and yields
HR911105A Applications
Network Interface Card
● Meets or Exceeds IEEE802.3 standards including 360uH Min OCL with 8mADC
● High performance for EMI suppression, Crosstalk, Return Loss and Consistent Electrical.
● Minimum 1500Vrms isolation per IEEE802.3 requirement
● Minimize PCB space and Simplify PCB Layout
● Less magnetic components to place on PCB, Higher reliability and yields
Product Description
| Type# | Description |
| ANSC PART# | ANSC-HR911105A |
| Manufacturer | / |
| Samacsys Manufacturer | / |
| Additional Feature | EMI SHIELDED |
| Connector Type | RJ CONNECTOR |
| Contact Gender | FEMALE |
| DIN Conformance | NO |
| Empty Shell | NO |
| Filter Feature | NO |
| IEC Conformance | NO |
| MIL Conformance | NO |
| Mixed Contacts | NO |
| Mounting Style | RIGHT ANGLE |
| Mounting Type | BOARD |
| Option | GENERAL PURPOSE |
| Termination Type | SOLDER |
| Total Number of Contacts | 8 |

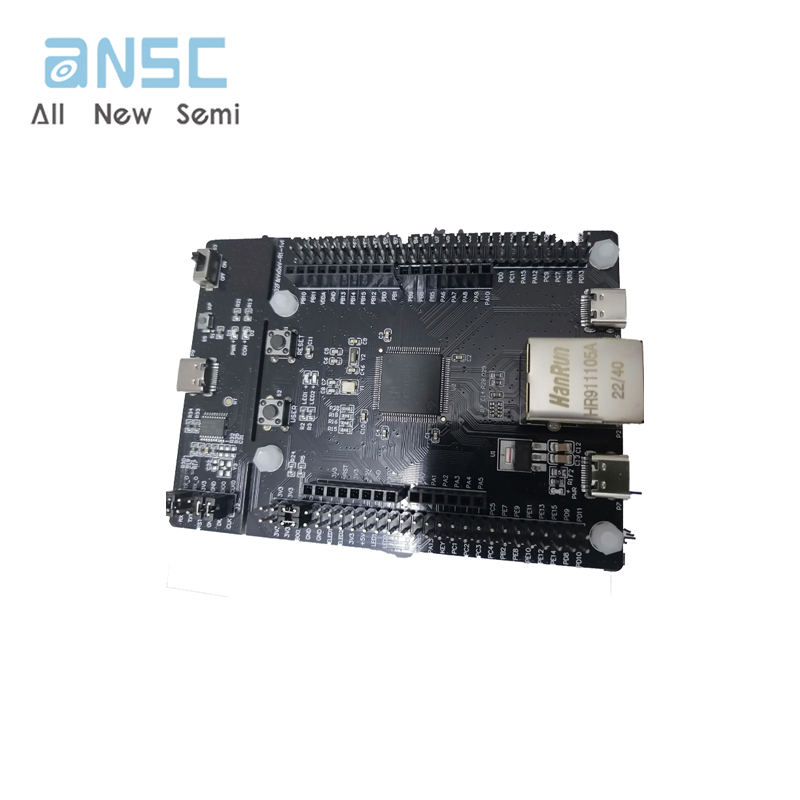

Product Photos
