Product Details
S1G-E3/5AT Overview
An appropriate reverse voltage is 400V.Devices with this rating have an average rectified current of 1A volts.1A is the maximum value of forward current.There can be no surge current above 40A.Using the data chart, the peak reverse is 1μA in the datasheets.
S1G-E3/5AT Features
an average rectified current of 1A volts
the peak reverse is 1μA
S1G-E3/5AT Applications
There are a lot of Vishay Semiconductor Diodes Division
S1G-E3/5AT applications of single-phase diode rectifier.
DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
Product Description
ANSC PART# | ANSC- S1G-E3/5AT |
Part# | S1G-E3/5AT |
Type： | Electronic components |
Manufactor | Vishay |
DC | new |
Product Attributes
TYPE | DESCRIPTION |
|---|---|
Category | Discrete Semiconductor Products Diodes Rectifiers Single Diodes |
Mfr | Vishay General Semiconductor - Diodes Division |
Series | - |
Package | Tape & Reel (TR) Cut Tape (CT) |
Product Status | Active |
Technology | Standard |
Voltage - DC Reverse (Vr) (Max) | 400 V |
Current - Average Rectified (Io) | 1A |
Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
Speed | Standard Recovery >500ns, > 200mA (Io) |
Reverse Recovery Time (trr) | 1.8 µs |
Current - Reverse Leakage @ Vr | 1 µA @ 400 V |
Capacitance @ Vr, F | 12pF @ 4V, 1MHz |
Mounting Type | Surface Mount |
Package / Case | DO-214AC, SMA |
Supplier Device Package | DO-214AC (SMA) |
Operating Temperature - Junction | -55°C ~ 150°C |
Base Product Number | S1G |

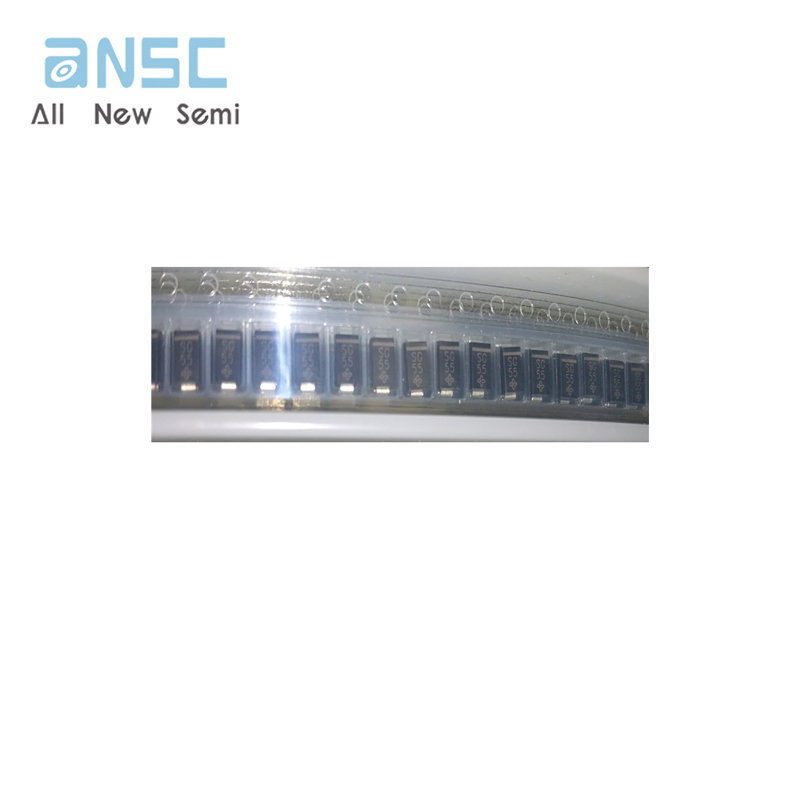

Actual image of the product

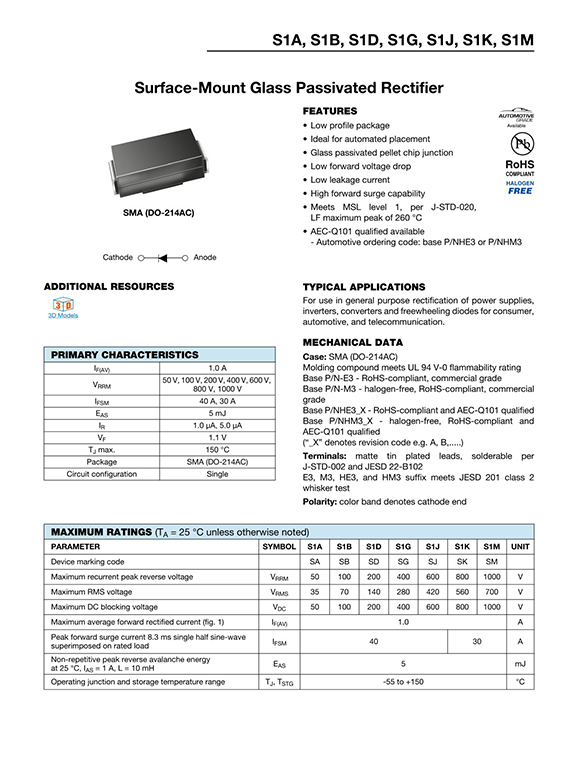

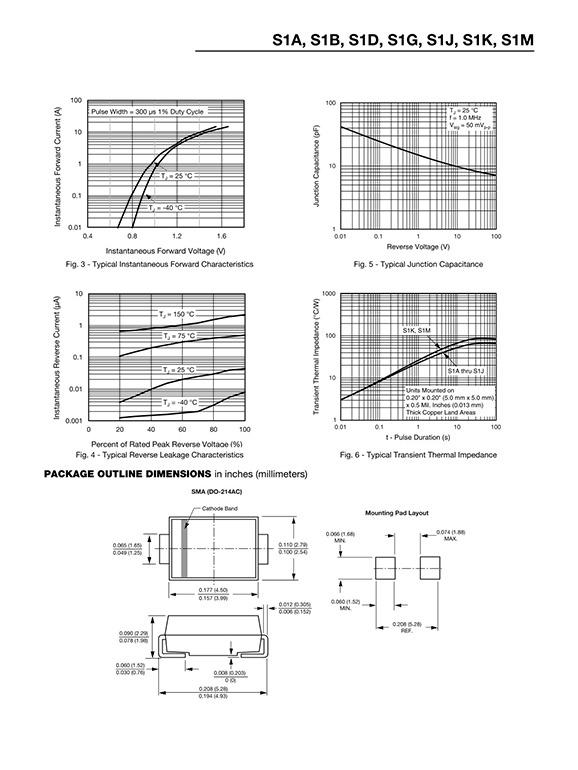

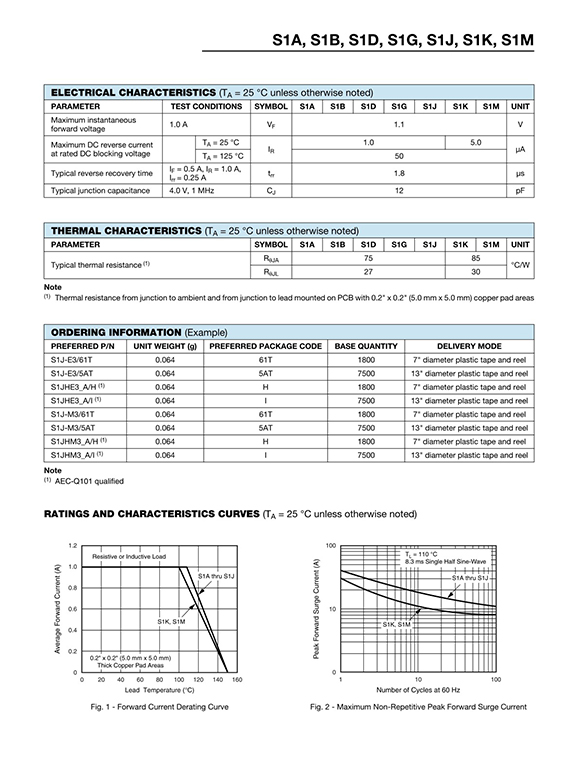

Product Data Book
