Product Details
| Power Zener Transient Voltage Suppressors Bidirectional* PLASTIC SURFACE MOUNT ZENER OVERVOLTAGE TRANSIENT SUPPRESSORS 9.4−78 VOLTS 600 WATT PEAK POWER The SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMB series is supplied in ON Semiconductor’s exclusive, cost-effective, highly reliable Surmeticpackage and is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications. Features •Working Peak Reverse Voltage Range − 9.4 to 77.8 V •Standard Zener Breakdown Voltage Range − 11 to 91 V •Peak Power − 600 W @ 1 ms •ESD Rating of Class 3 (>16 KV) per Human Body Model •Maximum Clamp Voltage @ Peak Pulse Current •Low Leakage < 5 A Above 10 V •UL 497B for Isolated Loop Circuit Protection •Response Time is Typically < 1 ns •Pb−Free Packages are Available |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- P6SMB33CAT3G |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Original |
| Series | P6SMB |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Obsolete |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 28.2V |
| Voltage - Breakdown (Min) | 31.4V |
| Voltage - Clamping (Max) @ Ipp | 45.7V |
| Current - Peak Pulse (10/1000µs) | 13.2A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 305pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Base Product Number | P6SMB |

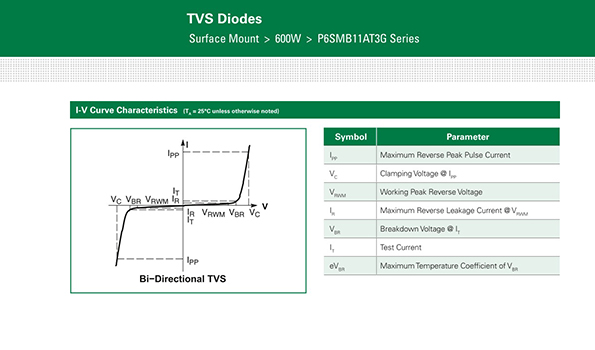

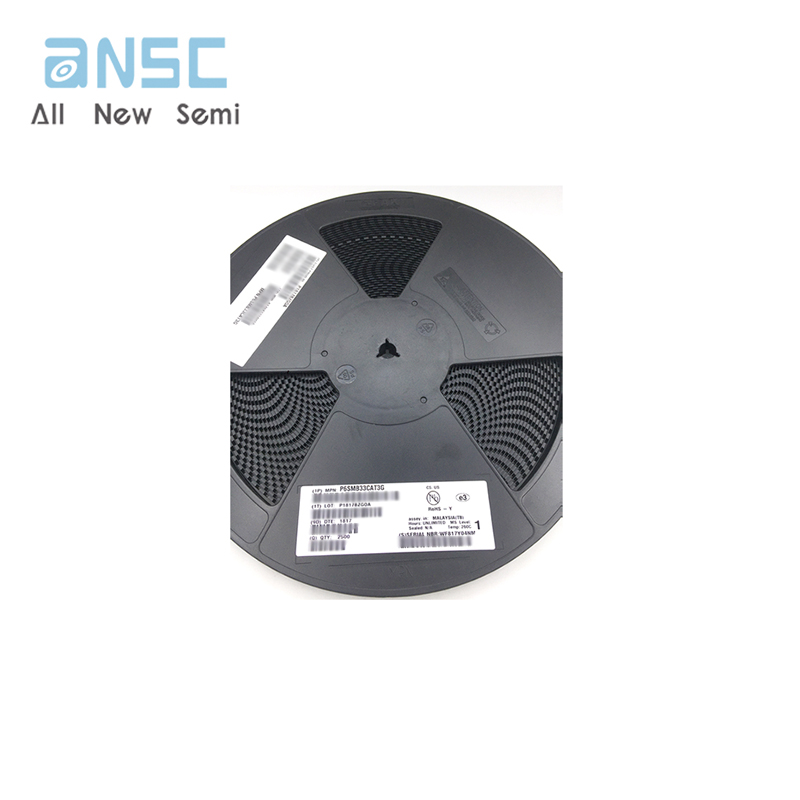

Product Photos

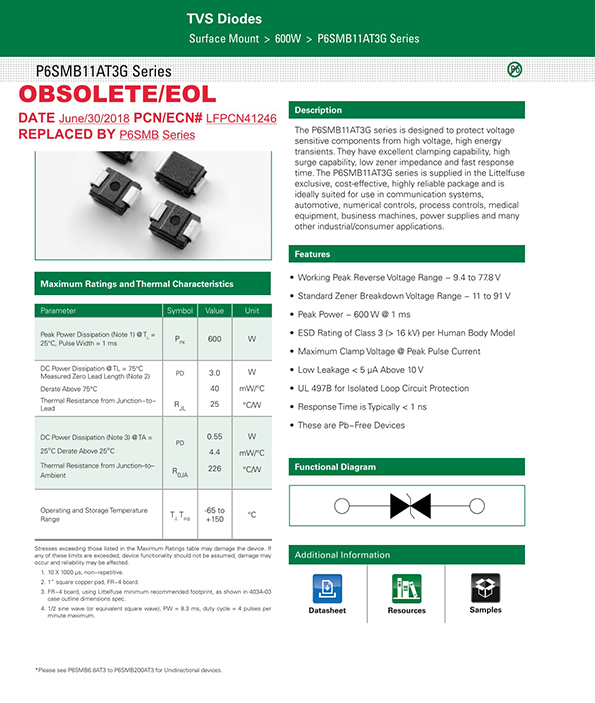

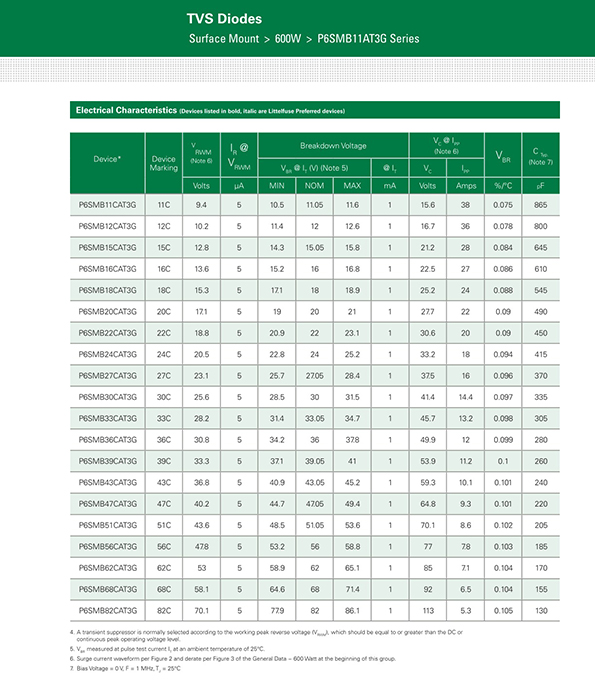

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
