Product Details

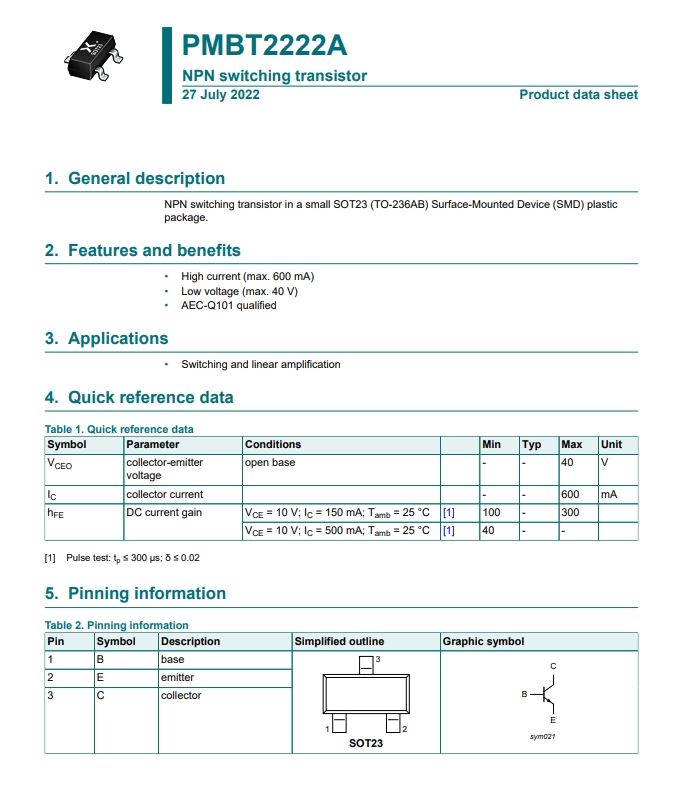

1. General description
NPN switching transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic
package.
2. Features and benefits
• High current (max. 600 mA)
• Low voltage (max. 40 V)
• AEC-Q101 qualified
3. Applications
• Switching and linear amplification
Product Description
| Type# | Description |
| ANSC PART# | ANSC -PMBT2222A |
| Manufacturer | NEXPERIA |
| Package Description | PLASTIC PACKAGE-3 |
| Samacsys Manufacturer | Nexperia |
| Additional Feature | HIGH CURRENT DRIVER |
| Collector Current-Max (IC) | 0.6 A |
| Collector-Base Capacitance-Max | 8 pF |
| Collector-Emitter Voltage-Max | 40 V |
| Configuration | SINGLE |
| DC Current Gain-Min (hFE) | 40 |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 150 °C |
| Operating Temperature-Min | -65 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity/Channel Type | NPN |
| Qualification Status | Not Qualified |
| Reference Standard | IEC-60134 |
| Surface Mount | YES |
| Terminal Finish | TIN |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| Transition Frequency-Nom (fT) | 300 MHz |
| Turn-off Time-Max (toff) | 250 ns |
| Turn-on Time-Max (ton) | 35 ns |
| VCEsat-Max | 1 V |

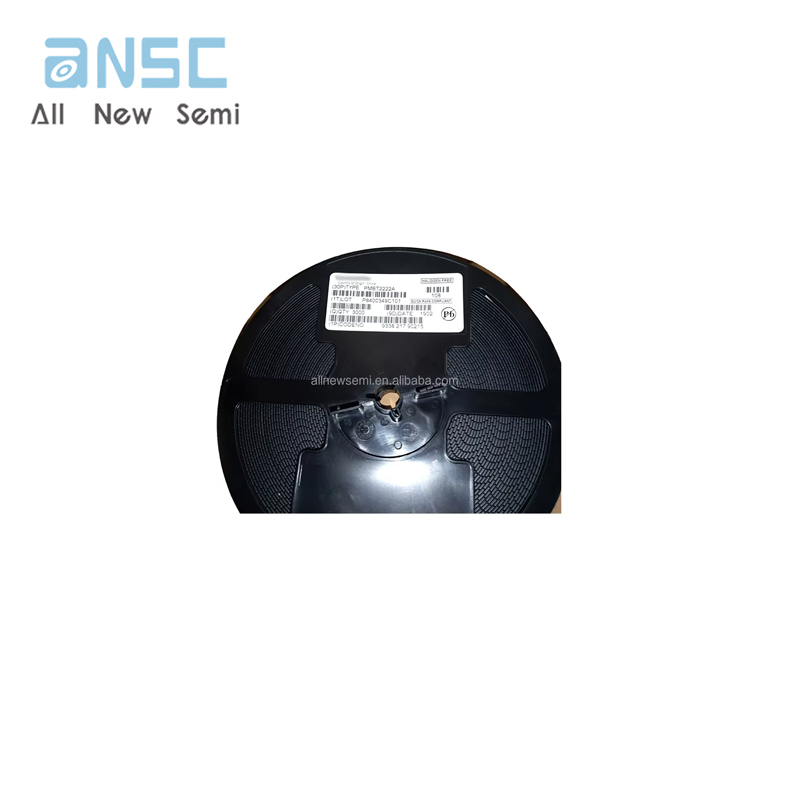

Product Photos

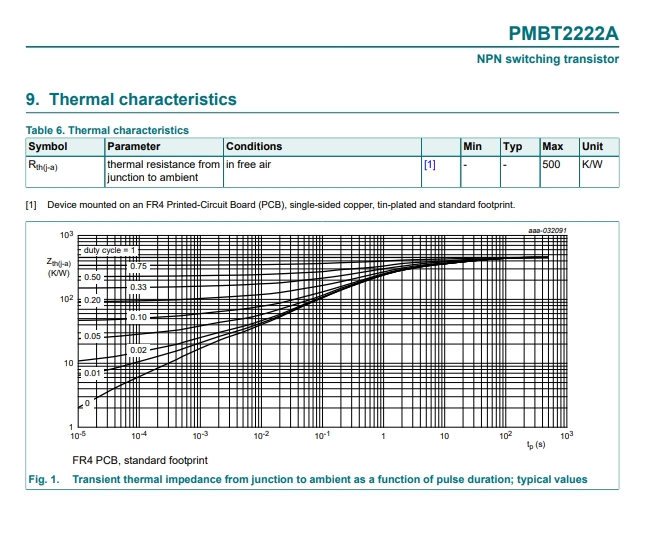

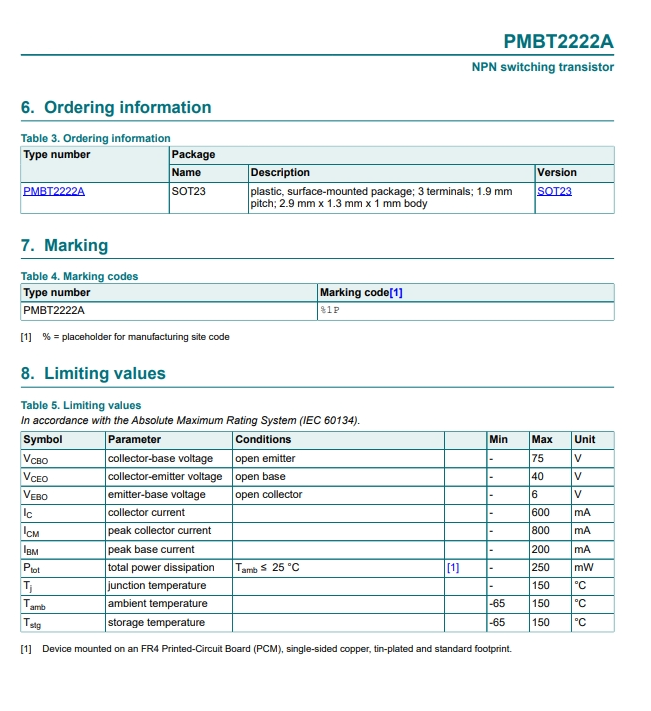

Product datasheet
