Product Description
| Type# | Description |
| ANSC PART# | ANSC - UF208 |
| Manufacturer |
/ |
| Part Package | DO-15 |
| Package Description | ROHS COMPLIANT, PLASTIC PACKAGE-2 |
| Pin Count | 2 |
| Application | EFFICIENCY |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 1.7 V |
| Non-rep Pk Forward Current-Max | 60 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max |
150 °C |
| Operating Temperature-Min | -55 °C |
| Output Current-Max | 2 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | ROUND |
| Package Style | LONG FORM |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 800 V |
| Reverse Recovery Time-Max | 0.075 µs |
| Surface Mount | NO |
| Terminal Form | WIRE |
| Terminal Position | AXIAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |

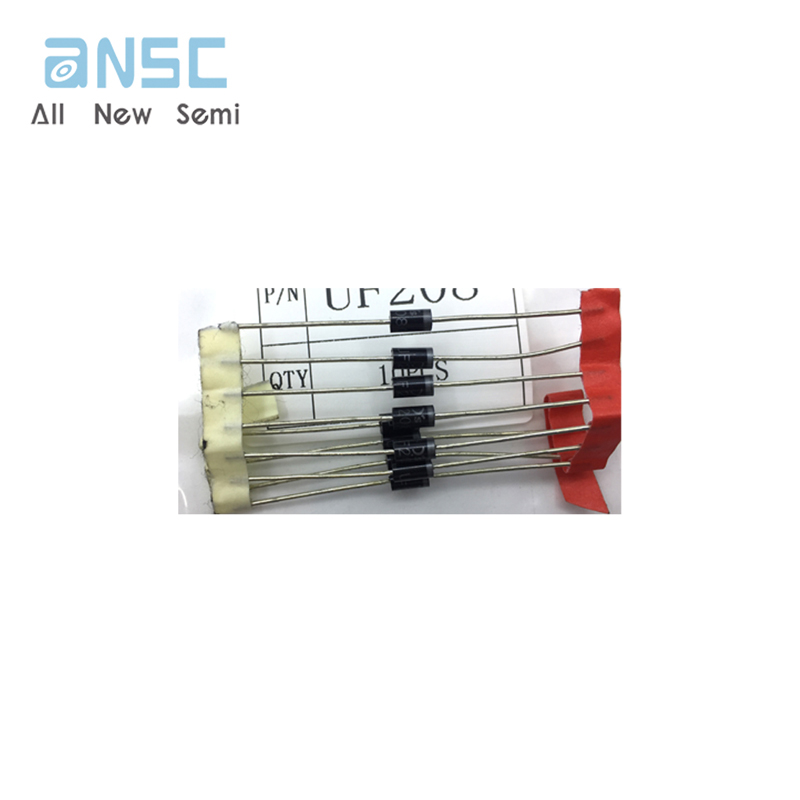

Product Photos
