Product Overview
This device is capable of reading a maximum output current voltage of 8 A.
Product Features
a maximum output current voltage of 8 A
Product Applications
UPS840E3 applications of RF diodes.
· Clamping circuits
· Diode ring mixer
· RF detector
· RF voltage doubler
· Wearables
· Smart metering
· Set top boxes
· RF attenuators and switches
· Low-loss, high-power limiters
· Receiver protectors
Product Description
| Type# | Description |
| ANSC PART# | ANSC- UPS840E3 |
| Manufacturer | Original |
| Additional Feature | FREE WHEELING DIODE, LOW LEAKAGE CURRENT, LOW POWER LOSS |
| Application | EFFICIENCY |
| Case Connection | CATHODE |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 0.49 V |
| JESD-30 Code | R-PSSO-G2 |
| Non-rep Pk Forward Current-Max | 150 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Output Current-Max | 8 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Rep Pk Reverse Voltage-Max | 40 V |
| Reverse Current-Max | 500 µA |
| Surface Mount | YES |
| Technology | SCHOTTKY |
| Terminal Form | GULL WING |
| Terminal Position | SINGLE |

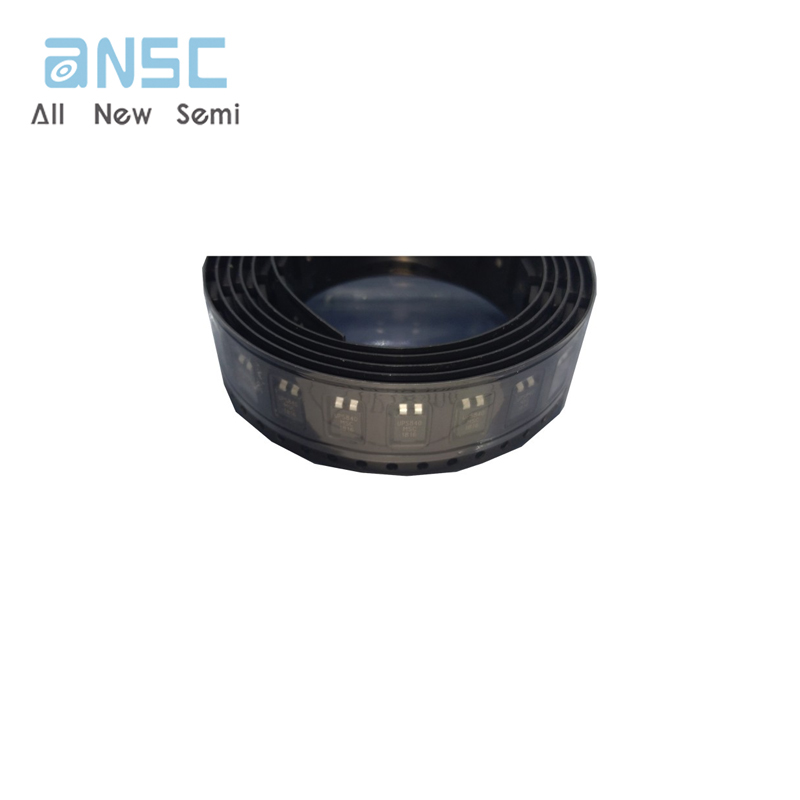

Actual image of the product

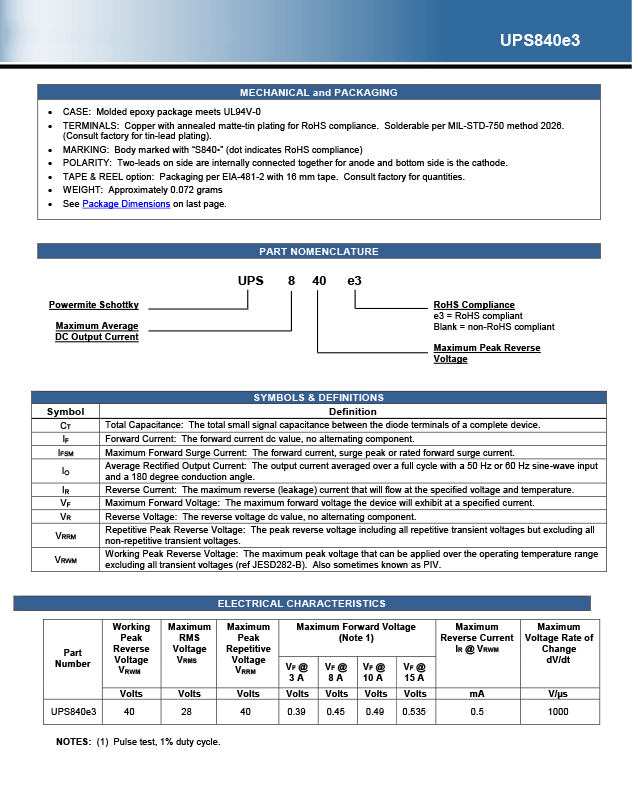

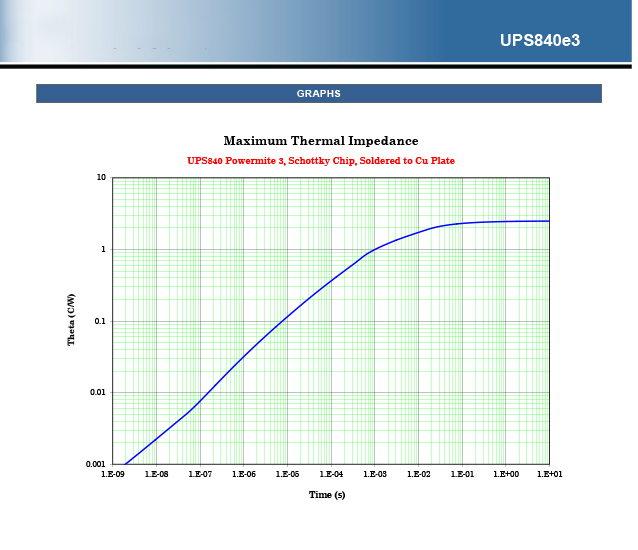

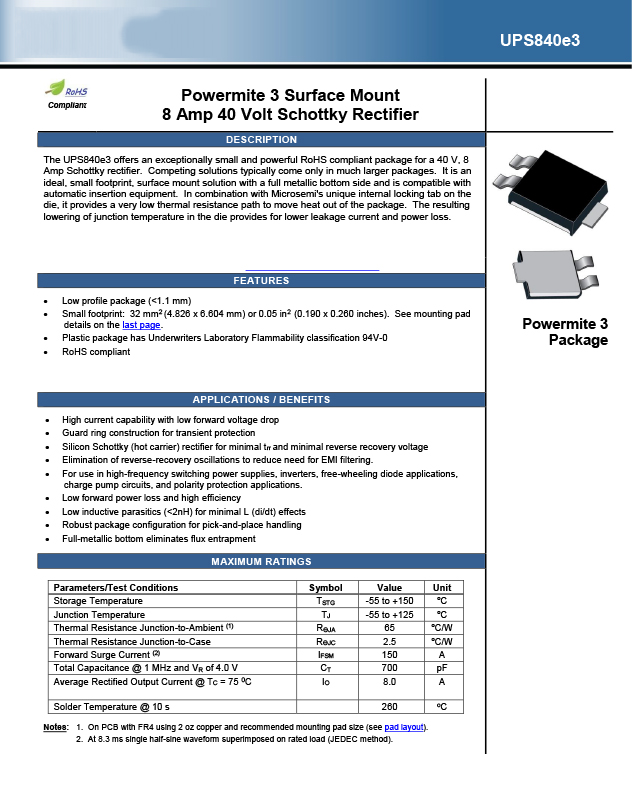

Product datasheet
For more information, please download
