| General Description The MCP16301 is a highly integrated, high-efficiency, fixed frequency, step-down DC-DC converter in a popular 6-pin SOT-23 package that operates from input voltage sources up to 30V. Integrated features include a high side switch, fixed frequency Peak Current Mode Control, internal compensation, peak current limit and overtemperature protection. Minimal external components are necessary to develop a complete step-down DC-DC converter power supply. Features • Up to 96% Typical Efficiency • Input Voltage Range: 4.0V to 30V • Output Voltage Range: 2.0V to 15V • 2% Output Voltage Accuracy • Integrated N-Channel Buck Switch: 460 mΩ • 600 mA Output Current • 500 kHz Fixed Frequency • Adjustable Output Voltage • Low Device Shutdown Current • Peak Current Mode Control • Internal Compensation • Stable with Ceramic Capacitors • Internal Soft-Start • Cycle by Cycle Peak Current Limit • Under Voltage Lockout (UVLO): 3.5V • Overtemperature Protection • Available Package: SOT-23-6 Applications • PIC®/dsPIC Microcontroller Bias Supply • 24V Industrial Input DC-DC Conversion • Set-Top Boxes • DSL Cable Modems • Automotive • Wall Cube Regulation • SLA Battery Powered Devices • AC-DC Digital Control Power Source • Power Meters • D2 Package Linear Regulator Replacement - See Figure 5-2 • Consumer • Medical and Health Care • Distributed Power Supplies |
Product Description
| Type# | Description |

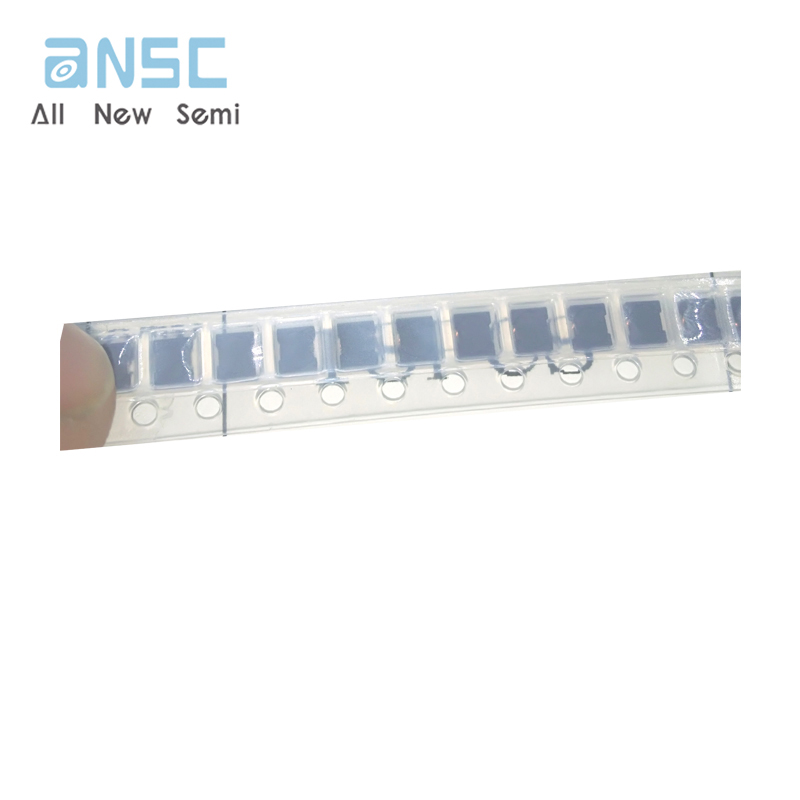

| ANSC PART# | ANSC -VLF302510MT-1R5N |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | / |
| Series | VLF-MT |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.5 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.65 A |
| Current - Saturation (Isat) | 1.65A |
| Shielding | Shielded |
| DC Resistance (DCR) | 66mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.118" L x 0.098" W (3.00mm x 2.50mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
