Product Description
ANSC PART# | ANSC- XAL1010-153MEB |
Part# | XAL1010-153MEB |
Type： | Electronic components |
Manufactor | COILCRAFT |
DC | new |

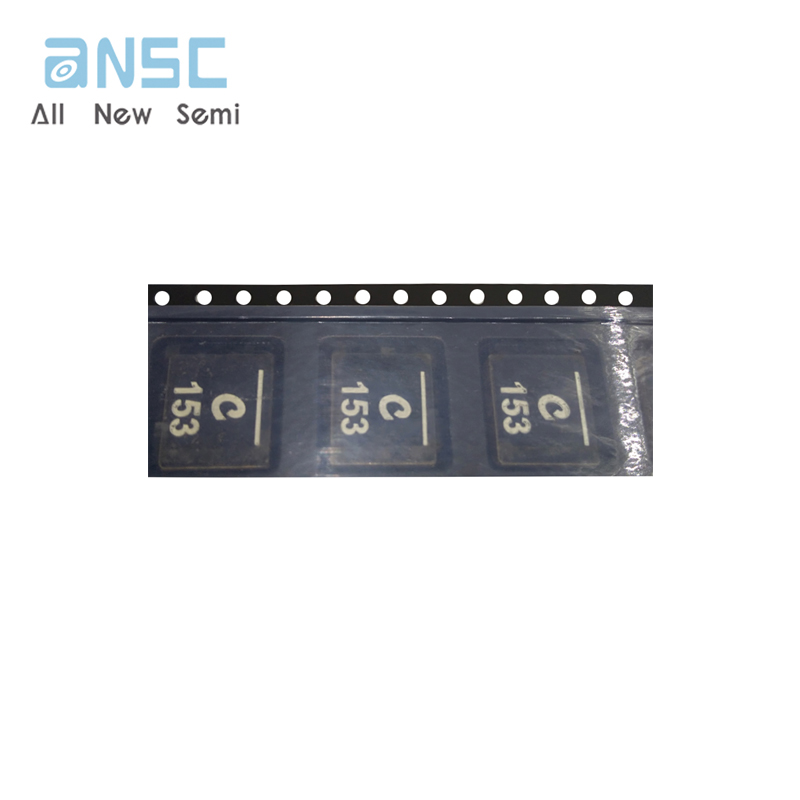

Actual image of the product
| Product Attribute | Attribute Value |
|---|---|
| Manufacturer: | Coilcraft |
| Product Category: | Power Inductors - SMD |
| RoHS: | - |
| Type: | Power Choke |
| Termination Style: | SMD/SMT |
| Package / Case: | 10 mm x 10 mm x 11.3 mm |
| Shielding: | Shielded |
| Inductance: | 15 uH |
| Tolerance: | 20 % |
| Maximum DC Current: | 13.8 A |
| Maximum DC Resistance: | 18.6 mOhms |
| Saturation Current: | 15.5 A |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 125 C |
| Q Minimum: | - |
| Mounting Style: | PCB Mount |
| Length: | 11.3 mm |
| Width: | 10 mm |
| Height: | 10 mm |
| Diameter: | - |
| Core Material: | Composite |
| Qualification: | AEC-Q200 |
| Series: | XAL1010 |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Packaging: | MouseReel |
| Application: | Automotive |
| Brand: | Coilcraft |
| Core Type: | Molded |
| Product: | Power Inductors |
| Product Type: | Power Inductors - SMD |
| Self Resonant Frequency: | 9 MHz |
| Factory Pack Quantity: | 300 |
| Subcategory: | Inductors, Chokes & Coils |
| Termination: | Standard |
| Test Frequency: | 1 MHz |
| Unit Weight: | 0.239299 oz |

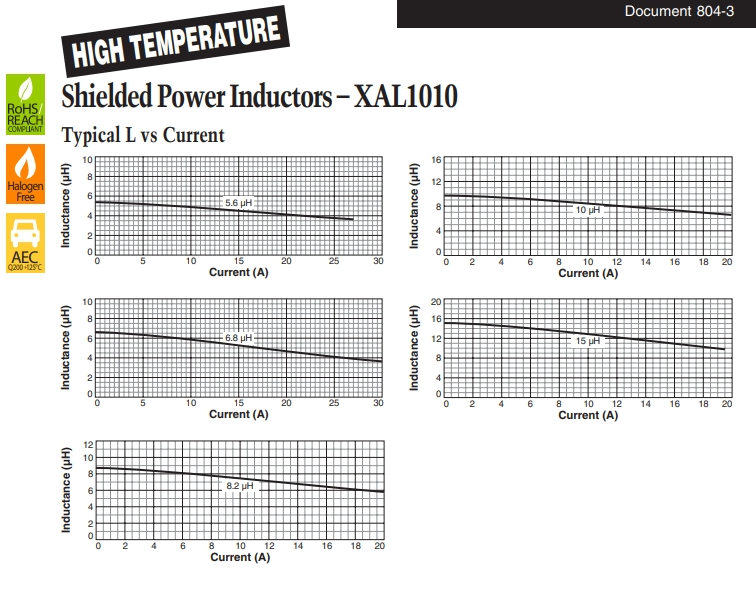

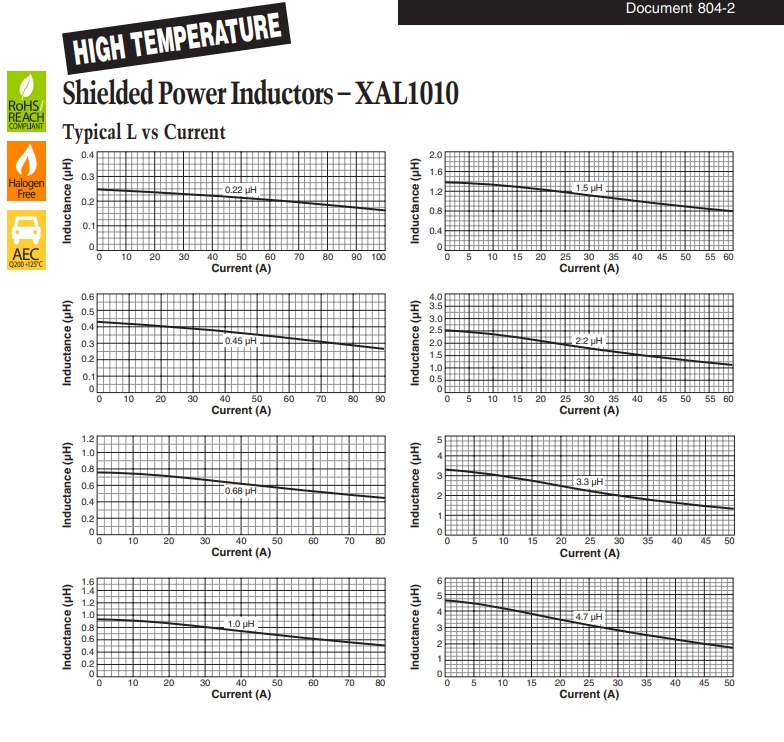

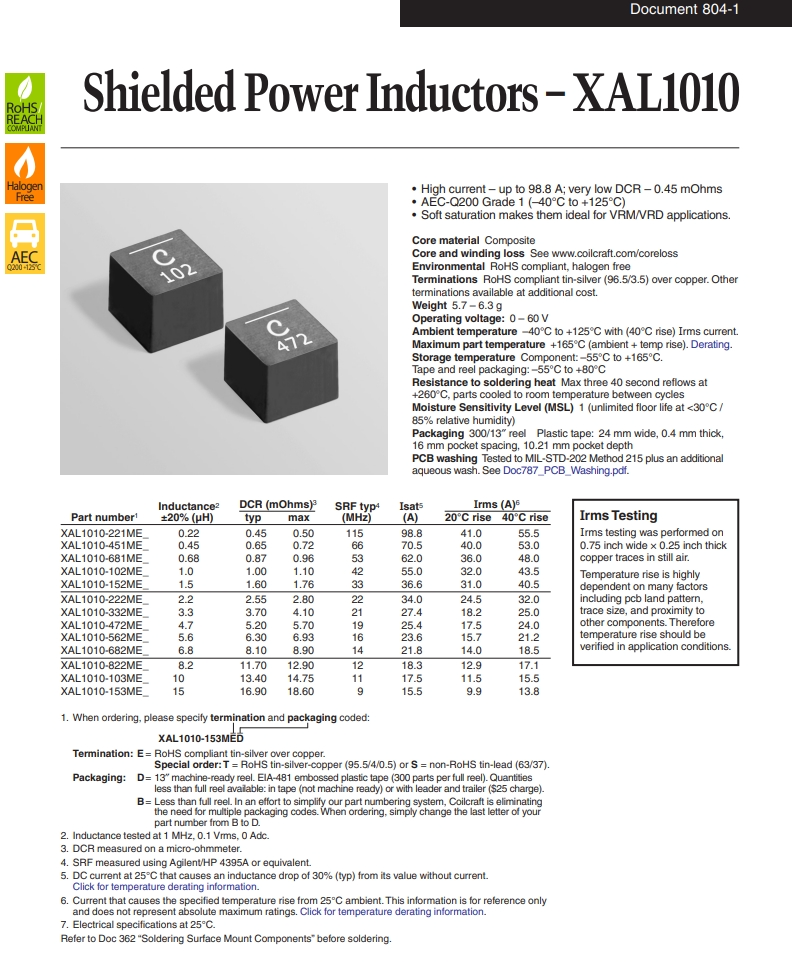

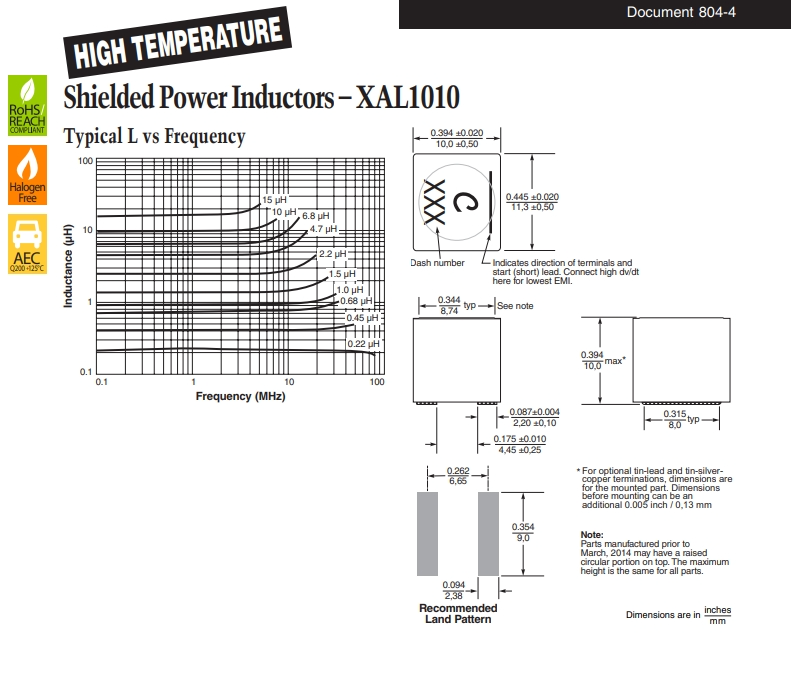

Product datasheet
For more information, please download
