Product Details
| Brief Description: The STB75NF20 is a single N-Channel MOSFET from STMicroelectronics, designed for switching applications. It features a high power dissipation of 190W and a low on-resistance of 34mΩ, making it suitable for high-current and high-voltage applications. Features: High power dissipation: 190W Low on-resistance: 34mΩ High drain current: 75A High gate-to-source voltage: 20V High drain-to-source breakdown voltage: 200V Enhanced mode operation Surface mount package: TO-263-3, D2Pak (2 Leads + Tab) Lead-free and RoHS3 compliant Operating temperature range: -50°C to 150°C TJ Radiation hardening: No Application Grade: The STB75NF20 is designed for high-power switching applications, such as: Power supplies Motor controls Lighting systems Power conversion Applications: Switching power supplies Motor control systems Lighting systems Power conversion systems High-current and high-voltage applications Overall, the STB75NF20 is a high-performance MOSFET that offers excellent switching characteristics, high power dissipation, and low on-resistance, making it suitable for a wide range of high-power switching applications. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC -STB75NF20 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | / |
| Series | STripFET™ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 75A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 34mOhm @ 37A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 84 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3260 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 190W (Tc) |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Base Product Number | STB75 |

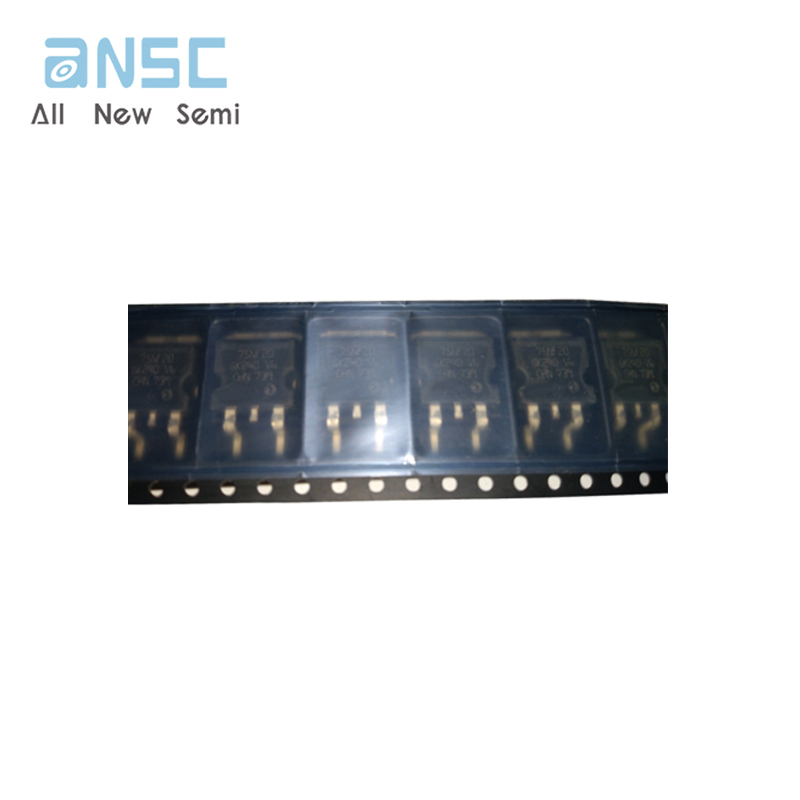

Product Photos

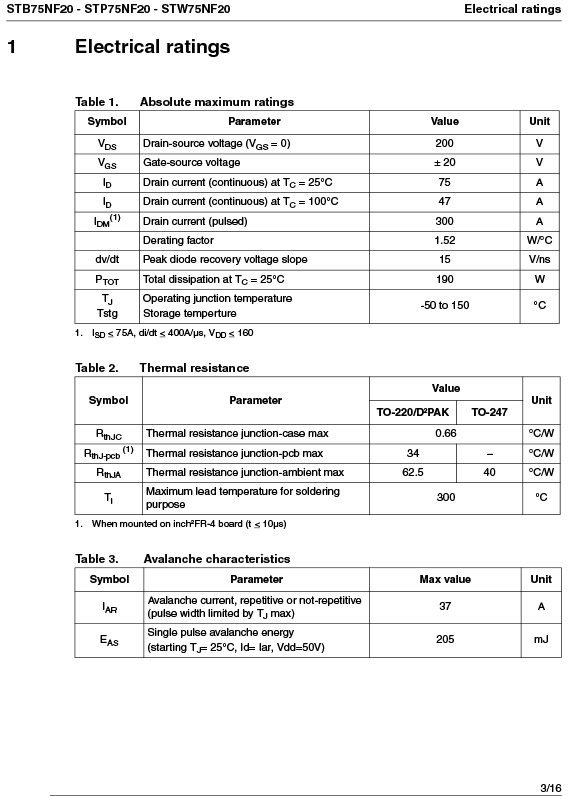

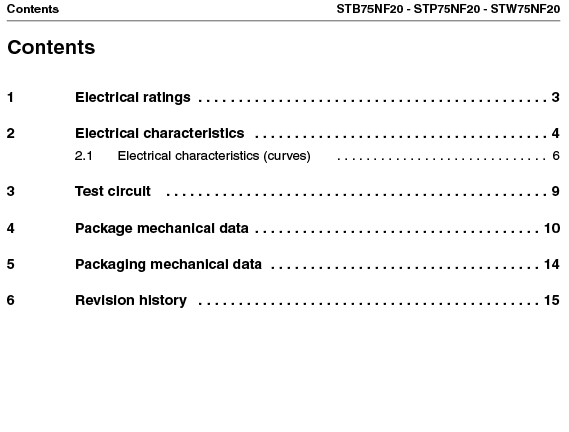

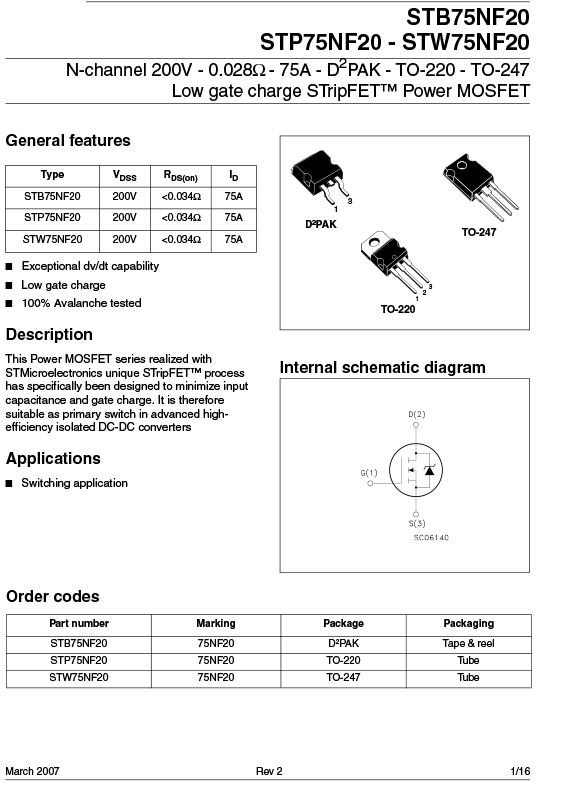

Product datasheet
For more information, please download
