Product Details
FEATURES
• High sensitivity:
2 Form C: 140 mW power consumption (single side stable type)
4 Form C: 280 mW power consumption (single side stable type)
• Surge voltage withstand: 1500 V FCC Part 68
• Sealed construction allows automatic washing
• Self-clinching terminal also available
• M.B.B. contact types available
Product Description
| Type# | Description |
| ANSC PART# | ANSC -TQ4-24V |
| Category | Relays |
| Signal Relays, Up to 2 Amps | |
| Manufacturer | / |
| Series | TQ |
| Packaging | Tube |
| Part Status | Obsolete |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 125VAC, 110VDC - Max |
| Load - Max Switching | 125VA, 110W |
| Coil Current | 11.7 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 3 ms |
| Release Time | 3 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Approval Agency | CSA, UR |
| Relay Type | Telecom |
| Grade | - |
| Qualification | - |
| Coil Resistance | 2.06 kOhms |
| Base Product Number | TQ4-24 |

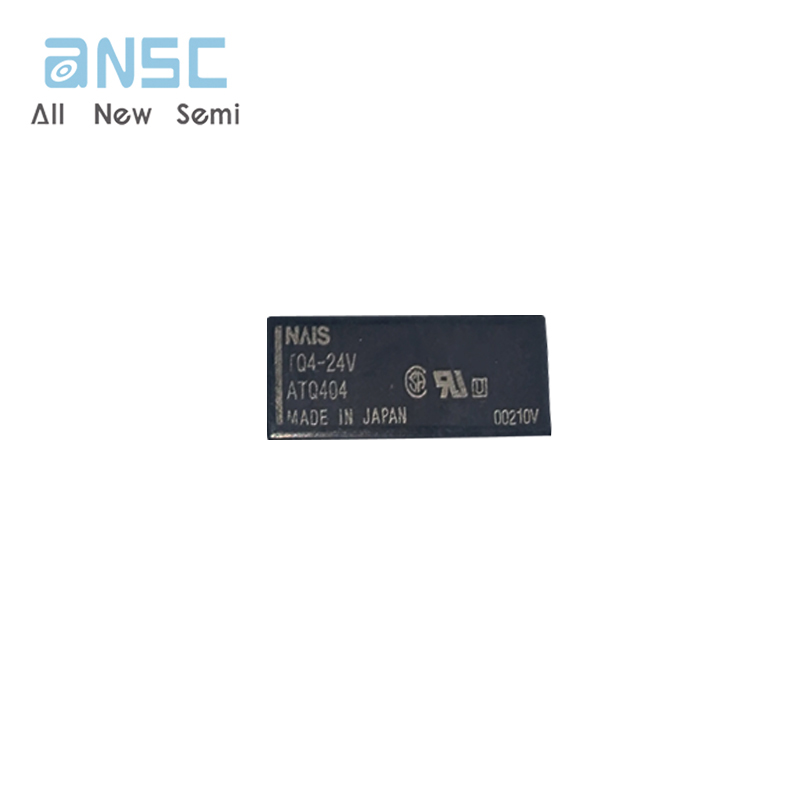

Product Photos

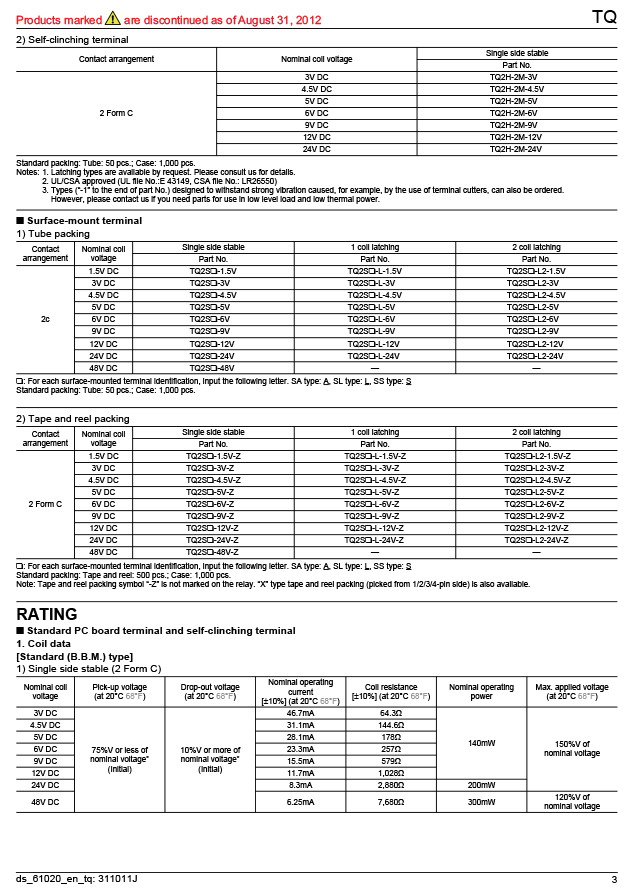

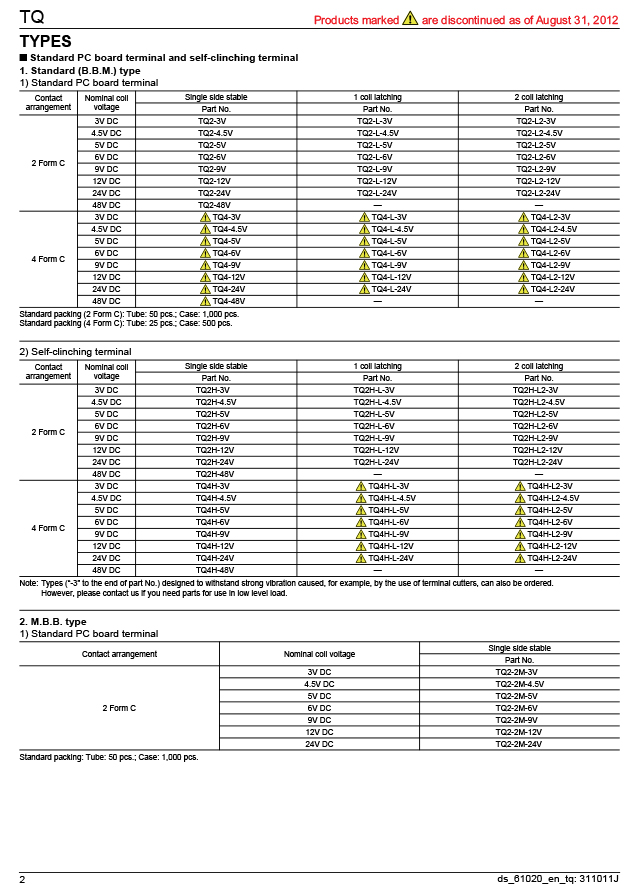

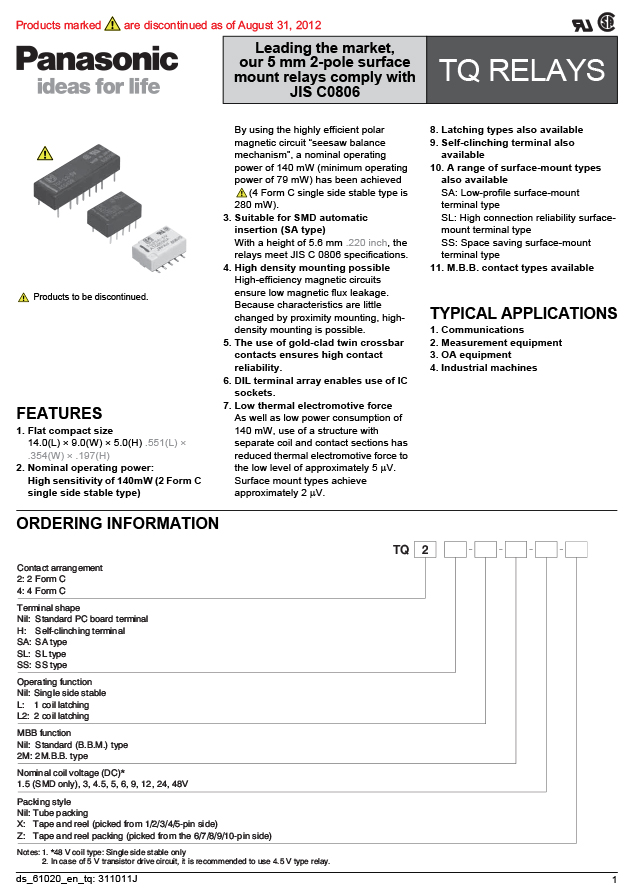

Product datasheet
For more information, please download
