Product Description Taiyo Yuden CBC3225T220MR Fixed Inductor The Taiyo Yuden CBC3225T220MR is a high-performance, fixed inductor designed for a wide range of applications in power electronics. This wound chip inductor features a rectangular package with a metric case code of 3225 and an imperial case code of 1210, making it suitable for surface mount applications. Features High Saturation Current: The CBC3225T220MR can handle a high saturation current of up to 620mA, ensuring reliable performance in demanding power circuits. Low DC Resistance: With a maximum DC resistance (DCR) of 351mOhm, this inductor minimizes power loss and maximizes efficiency. High Inductance: The inductance value is 22μH, providing effective filtering and energy storage capabilities. Halogen-Free and Lead-Free: Compliant with ROHS3 standards, this inductor is environmentally friendly and safe for use in lead-free soldering processes. Operating Temperature Range: The operating temperature range is from -40°C to 105°C, making it suitable for various environmental conditions. Surface Mount Technology (SMT): Designed for easy integration into modern PCBs, the CBC3225T220MR features dual-ended terminals with wraparound shapes for secure connections. Applications Primary Applications: 1. Power Supplies: Ideal for use in power supply circuits where high current handling and low DCR are crucial. 2. Switching Regulators: Effective in switching regulator designs where high inductance values are required. 3. Filtering Circuits: Used in filtering circuits to reduce noise and improve signal quality. Secondary Applications: 1. Motor Control Systems: Can be used in motor control systems where high current handling is necessary. 2. Audio Equipment: Suitable for audio equipment applications where low noise and high efficiency are required. |
Product Description
| TYPE# | DESCRIPTION |
| ANSC PART# |
ANSC - CBC3225T220MR |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | TAIYO |
| Series | CB, C Type |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Not For New Designs |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 780 mA |
| Current - Saturation (Isat) | 620mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 351mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 17MHz |
| Ratings | - |
| Operating Temperature |
-40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 (3225 Metric) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.106" (2.70mm) |
Product Photos

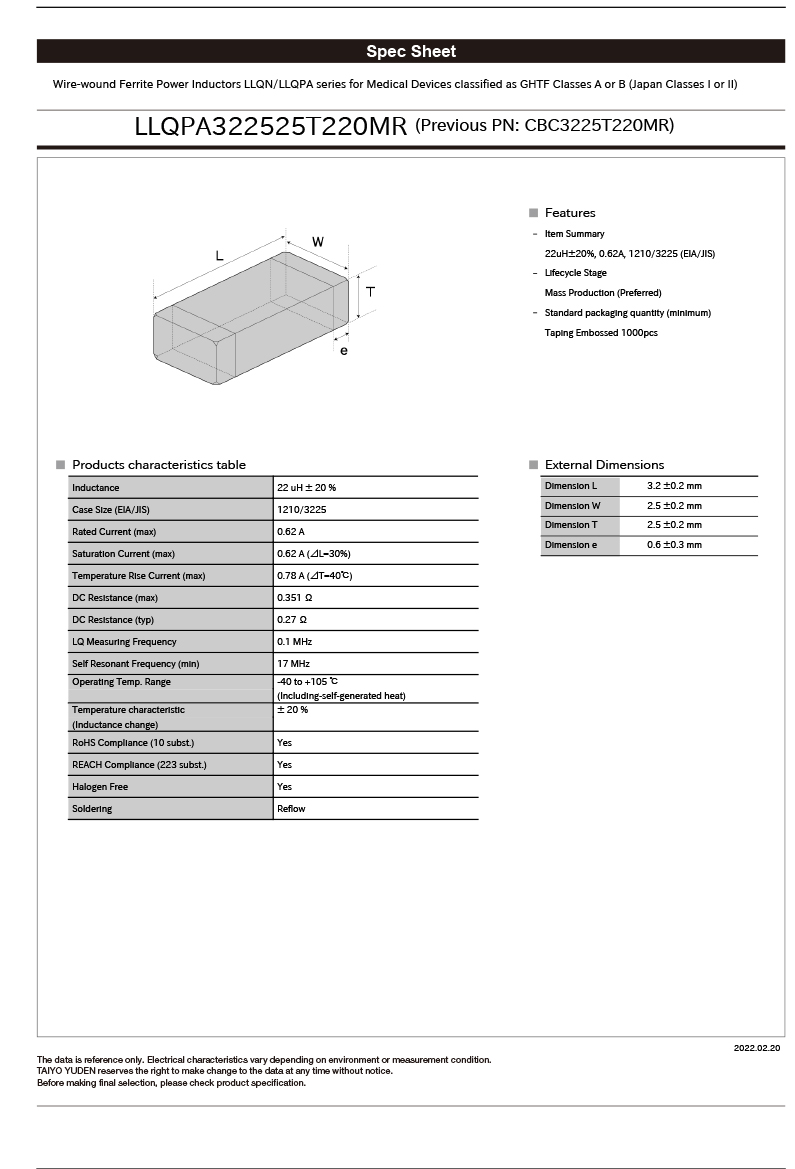

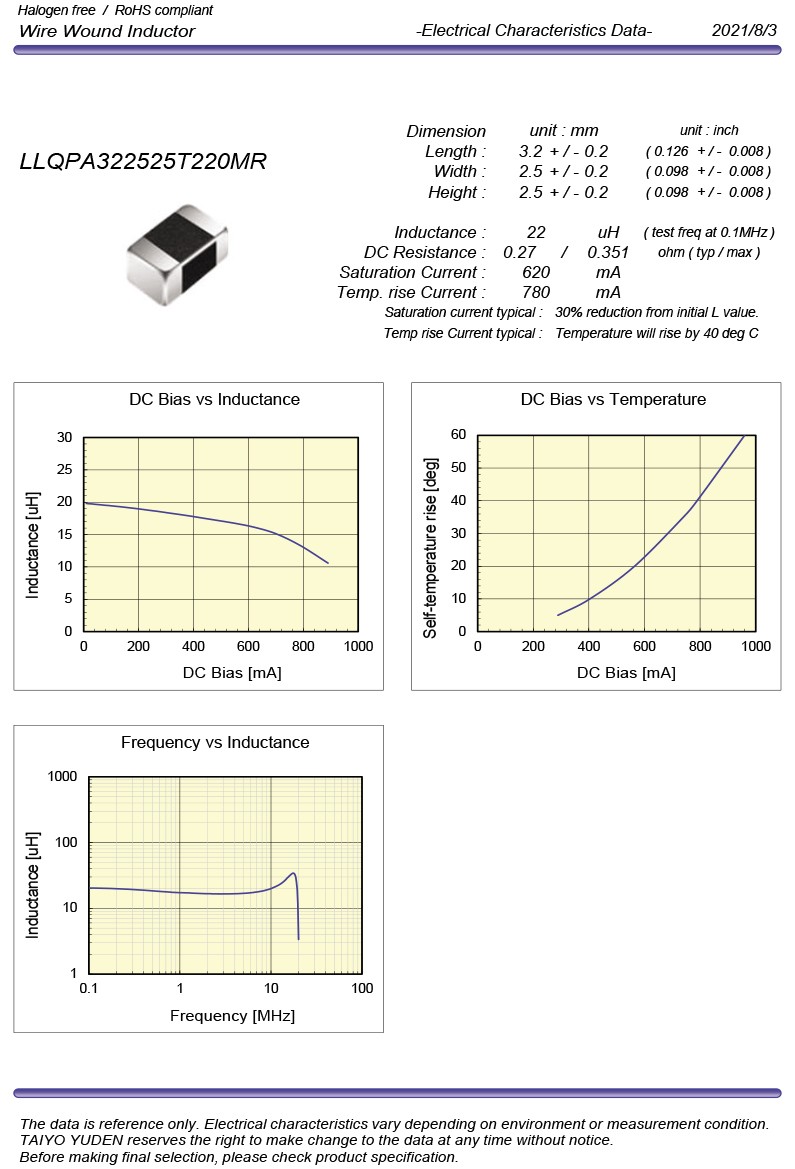

Product datasheet
