Product Details
■ Features
● External dimensions : 4.7 mm x 3.5 mm,
Height : Middle Push Travel 2.5 mm
Short Push Travel 2.1 mm, 2.5 mm
● High operating force and long operational life
● High mountability with J-bent (4 terminals)
■ Recommended Applications
● Operation switches for portable electronic equipment
(Mobile phones, Digital still cameras, Camcorders, Portable audio players, etc.)
● Keyless entry systems (automotive)
● Car audio equipment
Product Description
Light Touch Switches/EVQP6/6P6/7P6/9P6
ANSC PART# | ANSC- EVQP6DB35 |
Part# | EVQP6DB35 |
Type： | Electronic components |
Manufactor | Panasonic |
DC | new |

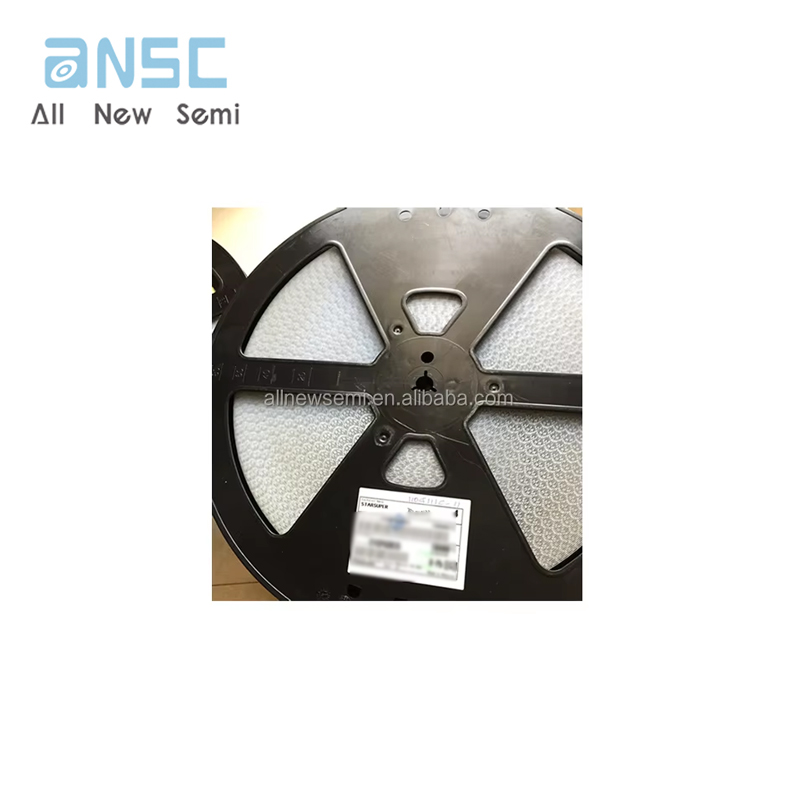

Actual image of the product
Product Attributes
TYPE | DESCRIPTION |
|---|---|
Category | Switches Tactile Switches |
Mfr | Panasonic Electronic Components |
Series | EVQP6 |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Last Time Buy |
Circuit | SPST-NO |
Switch Function | Off-Mom |
Contact Rating @ Voltage | 0.02A @ 15VDC |
Actuator Type | Standard |
Mounting Type | Surface Mount |
Actuator Height off PCB, Vertical | 0.35mm |
Actuator Length, Right Angle | - |
Actuator Orientation | Top Actuated |
Termination Style | J Lead |
Outline | 4.10mm x 4.10mm |
Illumination | Non-Illuminated |
Illumination Type, Color | - |
Illumination Voltage (Nominal) | - |
Operating Force | 160gf |
Ingress Protection | Dust Proof |
Features | - |
Operating Temperature | -20°C ~ 70°C |
Actuator Material | - |
Switch Travel | 0.20mm |
Mechanical Life | 1,000,000 Cycles |
Base Product Number | EVQ-P6 |

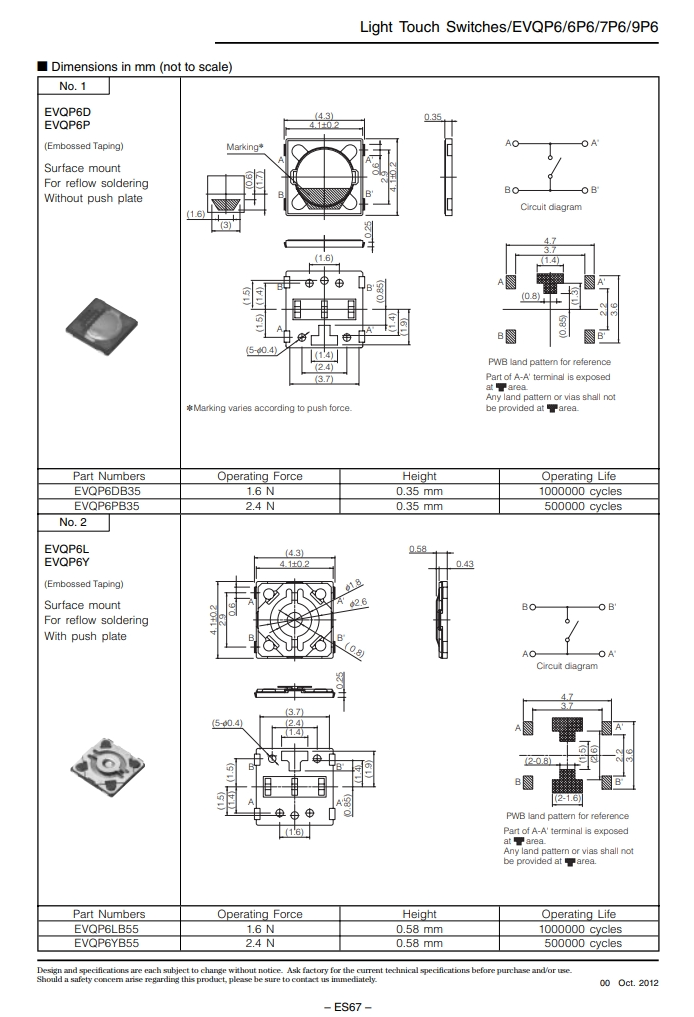

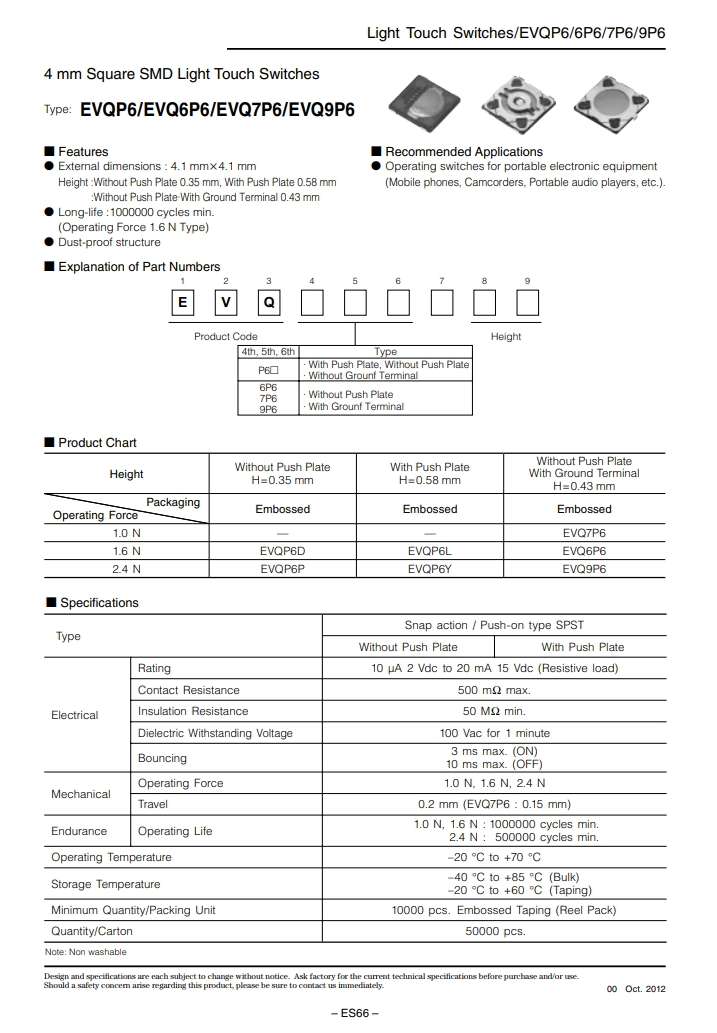

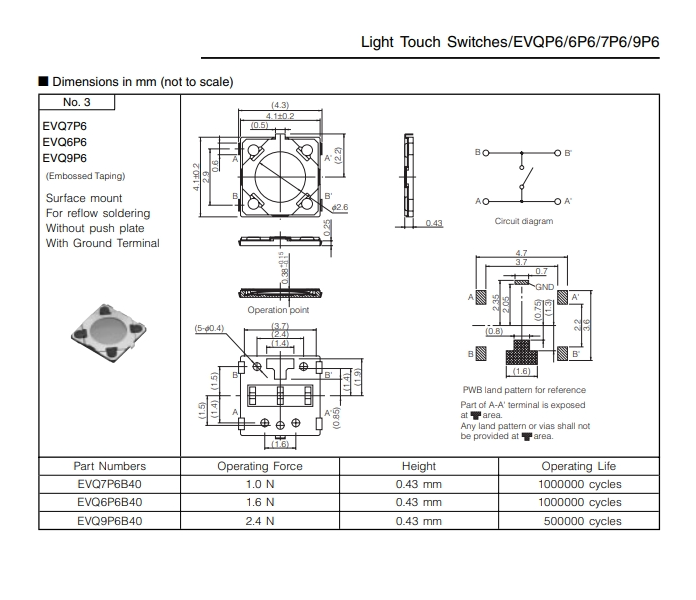

Product datasheet
