Product Details
RoHS peak reflow temperature rating: 245°C
Meets IEEE 802.3 specification
Compact footprint for use in the most space restrictive applications
Product Description
| Product Attribute# | Attribute Value |
| ANSC PART# | ANSC -HX1188NL |
| Category | Transformers |
| Pulse Transformers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Transformer Type | Isolation and Data Interface (Encapsulated) |
| Inductance | - |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |
| Mounting Type | Surface Mount |

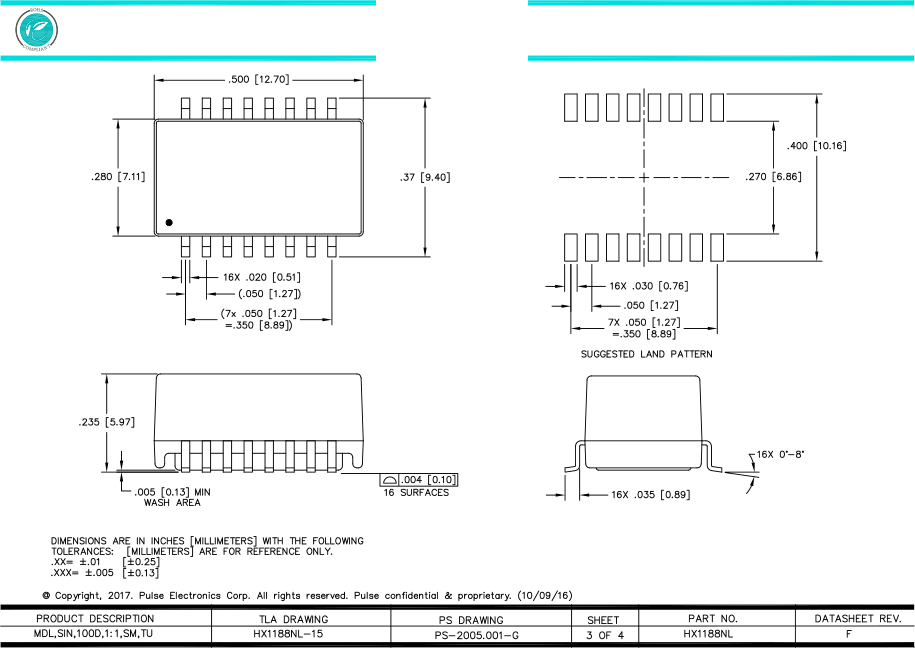

| Size / Dimension | 0.500" L x 0.280" W (12.70mm x 7.11mm) |
| Height - Seated (Max) | 0.245" (6.22mm) |
| Operating Temperature | -40°C ~ 85°C |
| Weight | 0.03 oz (0.85 g) |

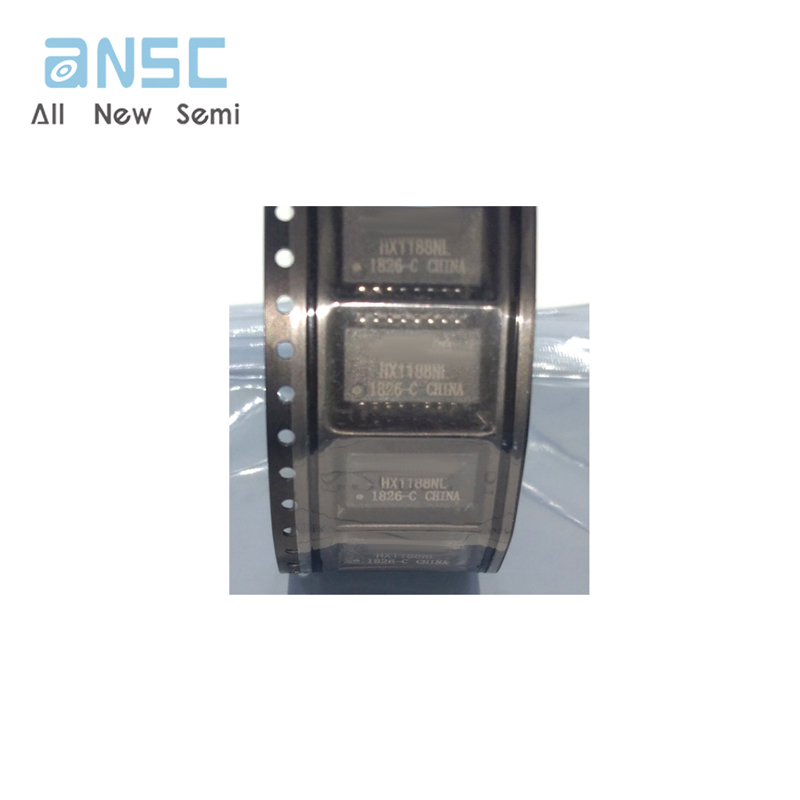

Product Photos

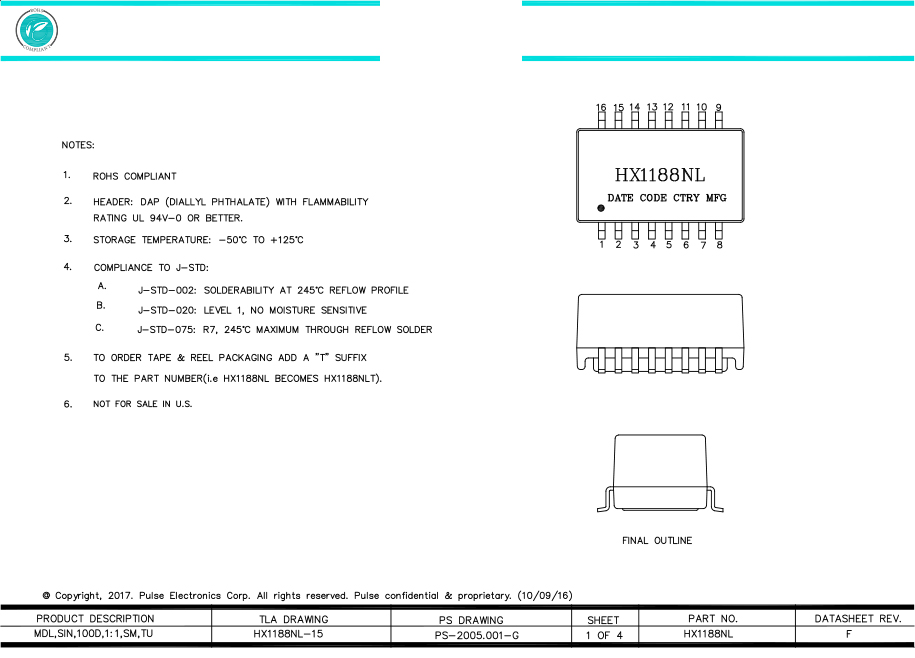

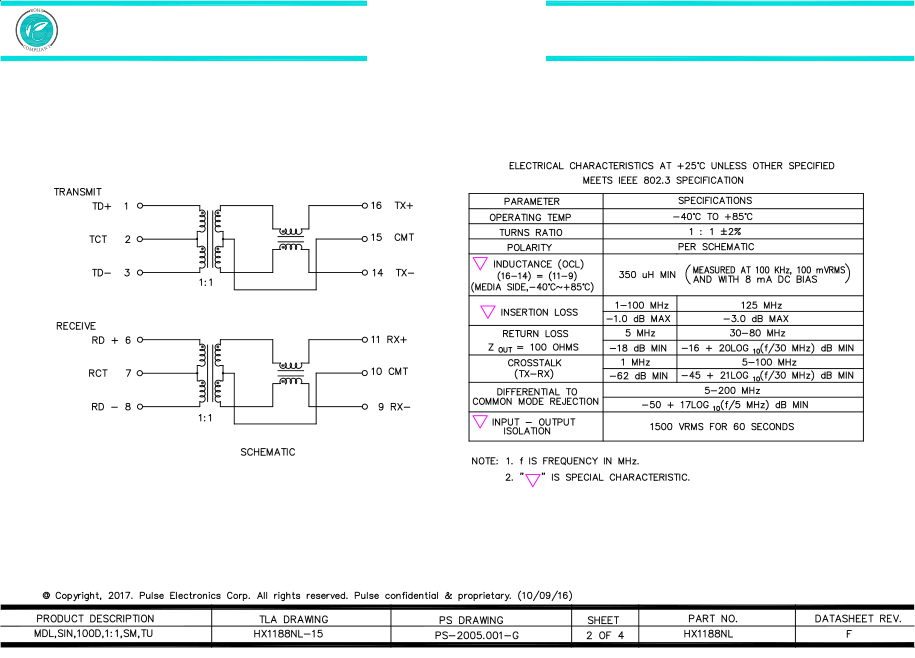

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate

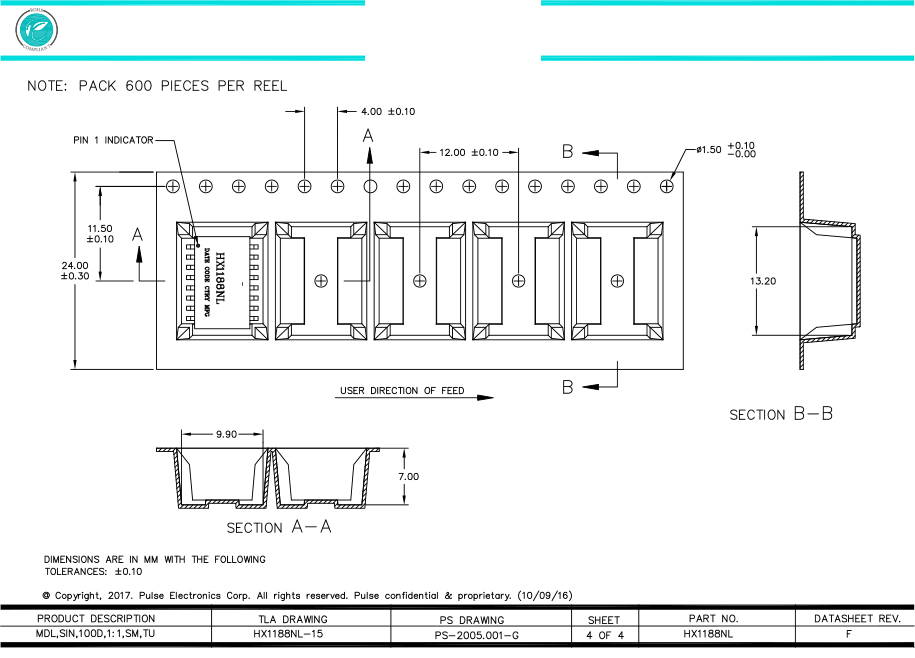

Standard packaging
