Product Details

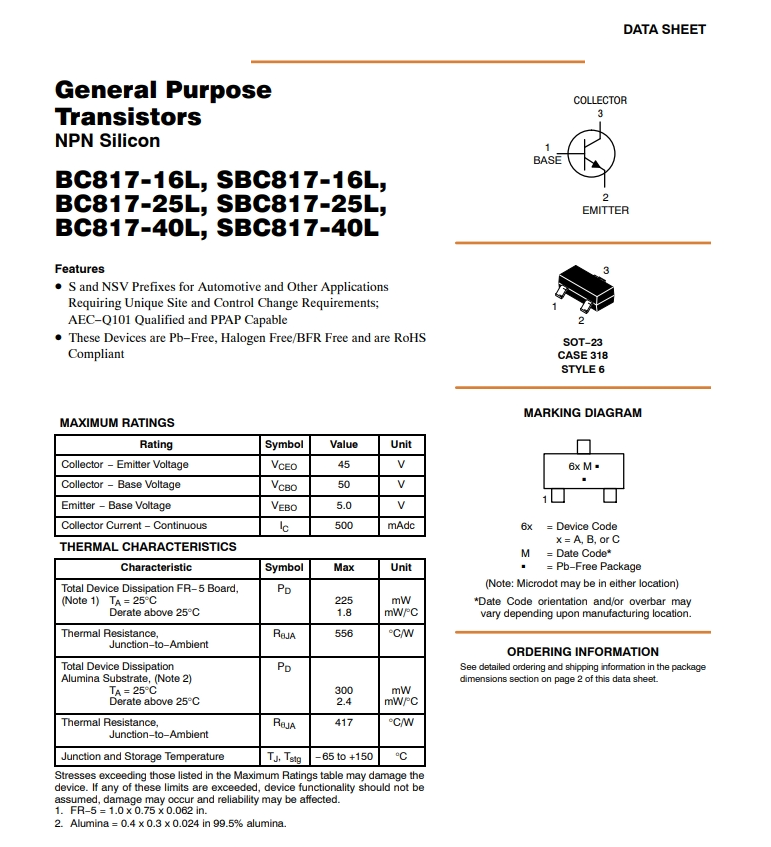

General Purpose Transistors
NPN Silicon
Features
• S and NSV Prefixes for Automotive and Other Applications
Requiring Unique Site and Control Change Requirements;
AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Product Description
ANSC PART# | ANSC- BC817-25LT1G |
Part# | BC817-25LT1G |
Type： | Electronic components |
Manufactor | onsemi |
DC | new |

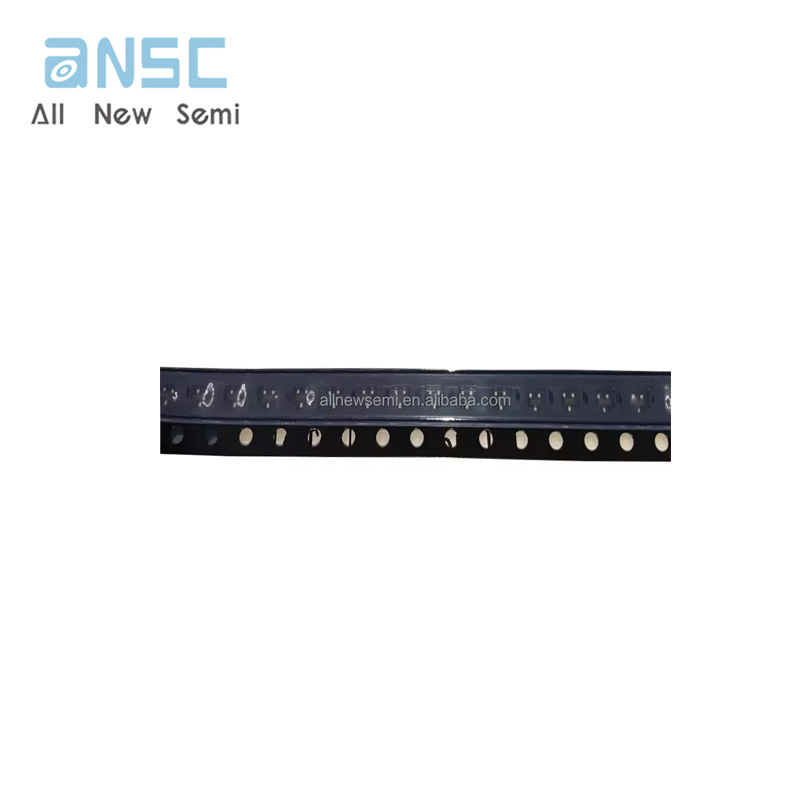

Actual image of the product
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 45 V |
| Vce Saturation (Max) @ Ib, Ic | 700mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 100mA, 1V |
| Power - Max | 300 mW |
| Frequency - Transition | 100MHz |
| Operating Temperature | -65掳C ~ 150掳C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Base Product Number | BC817 |

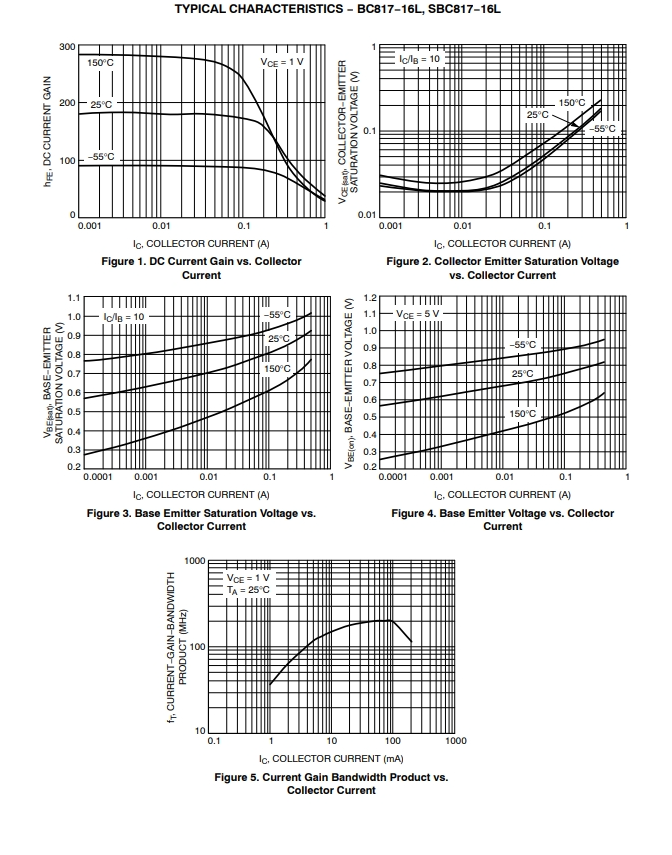

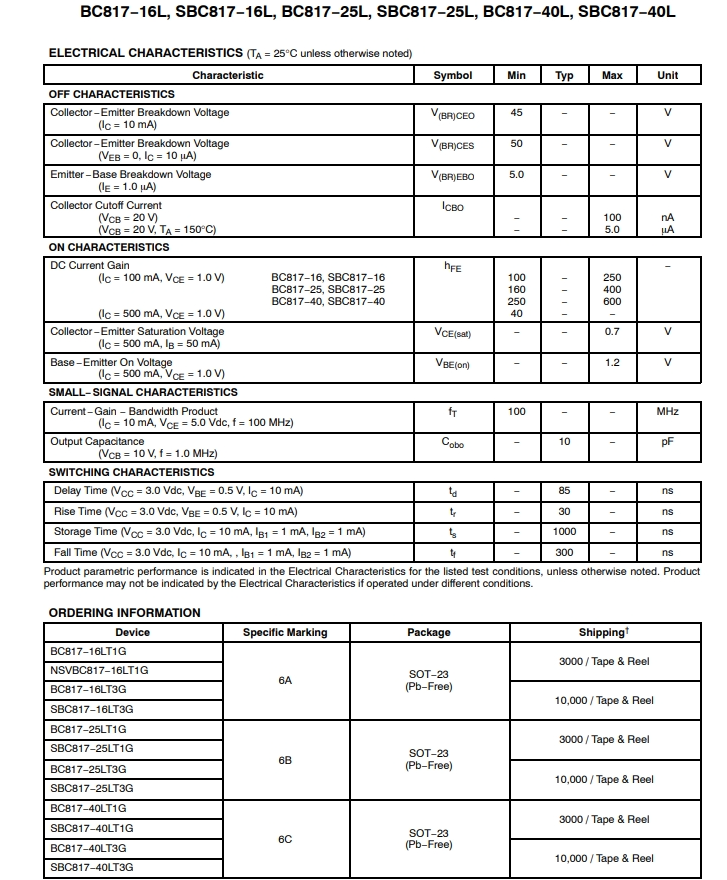

Product datasheet
For more information, please download
