Product Details
| Digital isolators with iCoupler® technology enable designers to implement isolation in designs without the cost, size, power, performance, and reliability constraints found with optocouplers. iCoupler digital isolators also meet the wide range of creepage/clearance requirements and are the industry’s only digital isolators with certifed 8 mm creepage. With more than half a billion channels shipped into the feld, these magnetically isolated products meet the same rigid safety standards as optocouplers. Portfolio Offerings • Single and multichannel data isolators • Digital isolators with isolated power: isoPower® • USB isolators • Isolated gate drivers • I2C® digital isolators • Isolated CAN transceivers • Isolated RS-485 transceivers • Isolated RS-232 transceivers • Isolated Σ-∆ modulators Wide Range of Applications With over 750 million channels of isolation shipped into the feld, iCoupler digital isolators are used in applications such as: • Medical devices • Power supply/regulation systems • Instrumentation devices • Networking equipment • Metering • Battery charging systems • Light and building controls • Industrial process controls • Motor drives • Solar/wind energy • Communications • Industrial feld buses • Automotive systems • All iCoupler devices can undergo AEC-Q100 automotive qualifcation. Please contact your local sales representative for more information. |
Product Description
| Type | Description |
| ANSC PART# | ANSC-ADUM7640CRQZ |
| Category | Isolators |
| Digital Isolators | |
| Mfr | Original |
| Series | iCoupler® |
| Packaging | Tube |
| Part Status | Active |
| Technology | Magnetic Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 6 |
| Inputs - Side 1/Side 2 | 6/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 1000Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Data Rate | 25Mbps |
| Propagation Delay tpLH / tpHL (Max) | 50ns, 50ns |
| Pulse Width Distortion (Max) | 6ns |
| Rise / Fall Time (Typ) | 2ns, 2ns |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-QSOP |
| Base Product Number | ADUM7640 |

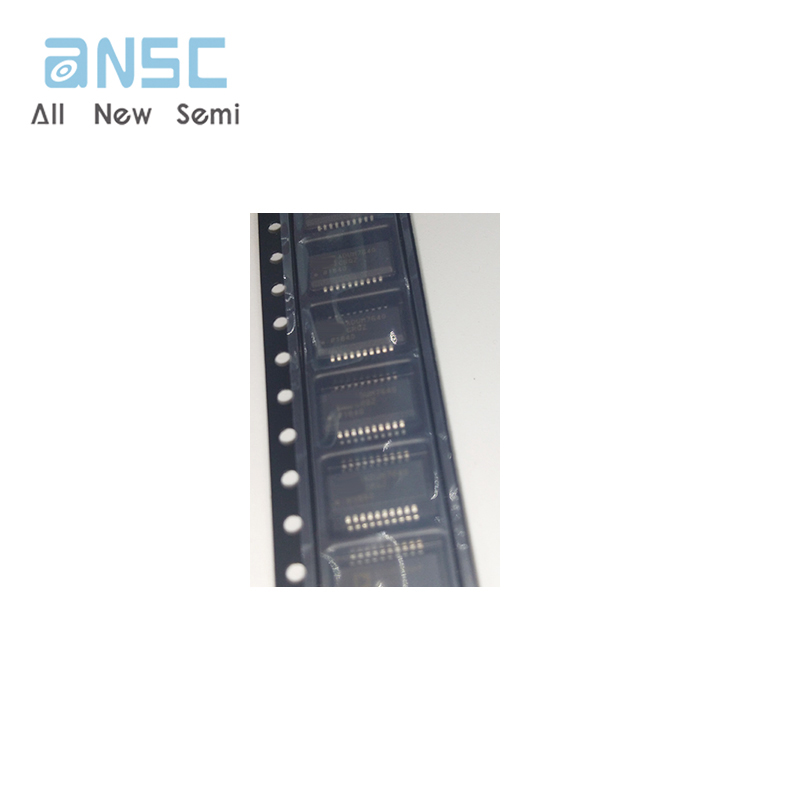

Product Photos

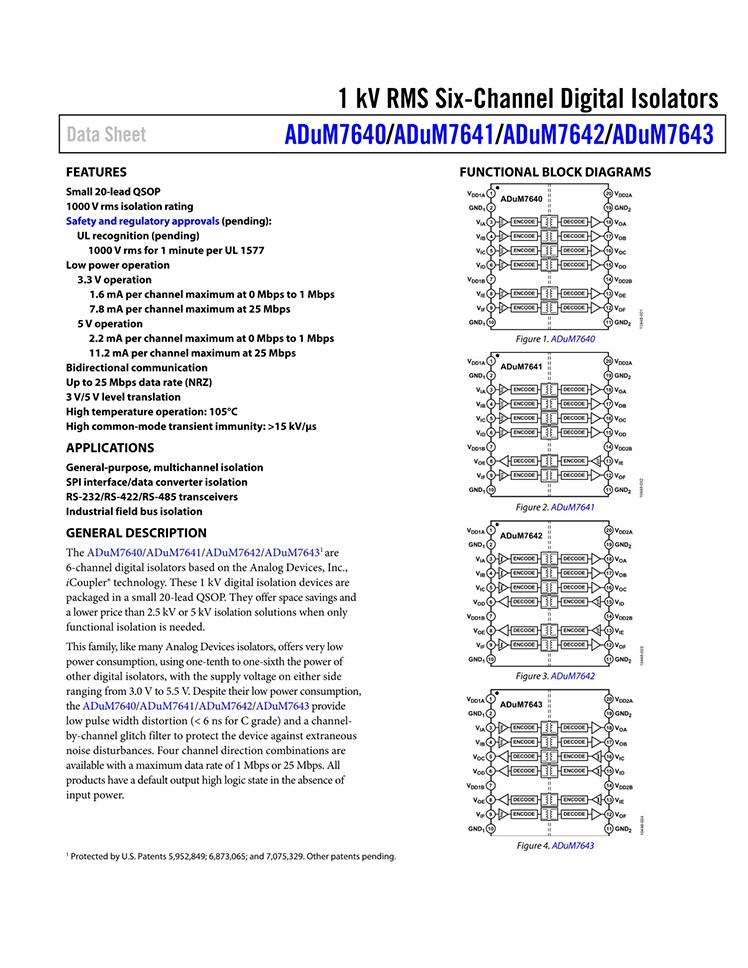

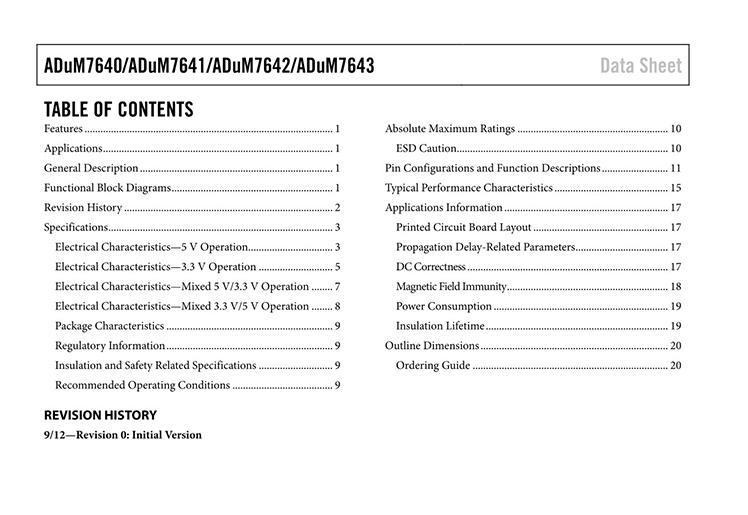

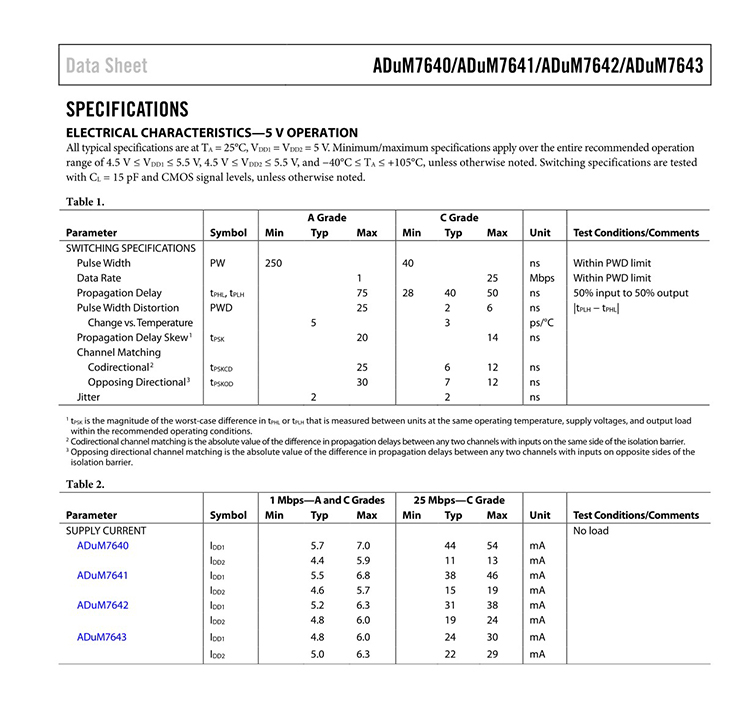

Product datasheet
For more information, please download
