Product Details
| Product Highlights The VI-J00 MiniMod family established a new standard in component-level DC-DC converters. This “junior” size complement to the higher power VI-200 family offers up to 100 W of isolated and regulated power in a board mounted package. With thousands of input/output/power combinations, and with a maximum operating temperature rating of 100˚C, the MiniMod provides nearly unlimited flexibiliy for power system designers to meet demanding time to market requirements. Features • RoHS compliant (VE versions) • Up to 50 Watts per cubic inch • cULus, cTÜVus • CE Marked • Up to 90 efficiency • Size: 2.28" x 2.4" x 0.5" (57,9 x 61,0 x 12,7) • Remote sense and current limit • Logic disable • Wide range output adjust • ZCS power architecture • Low noise FM control • Isolated output |
Product Description
| Type# | Description |
| ANSC PART# | ANSC-VI-JN2-CY |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Original |
| Series | VI-J00™ (50W) |
| Packaging | Bulk |
| Part Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 76V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 3.33A |
| Power (Watts) | 50 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Features | OCP, SCP |
| Operating Temperature | -25°C ~ 100°C |
| Efficiency | 90% |
| Mounting Type | Through Hole |
| Package / Case | Half Brick |
| Size / Dimension | 2.28" L x 2.40" W x 0.50" H (57.9mm x 70.0mm x 12.7mm) |
| Base Product Number | VI-JN2 |

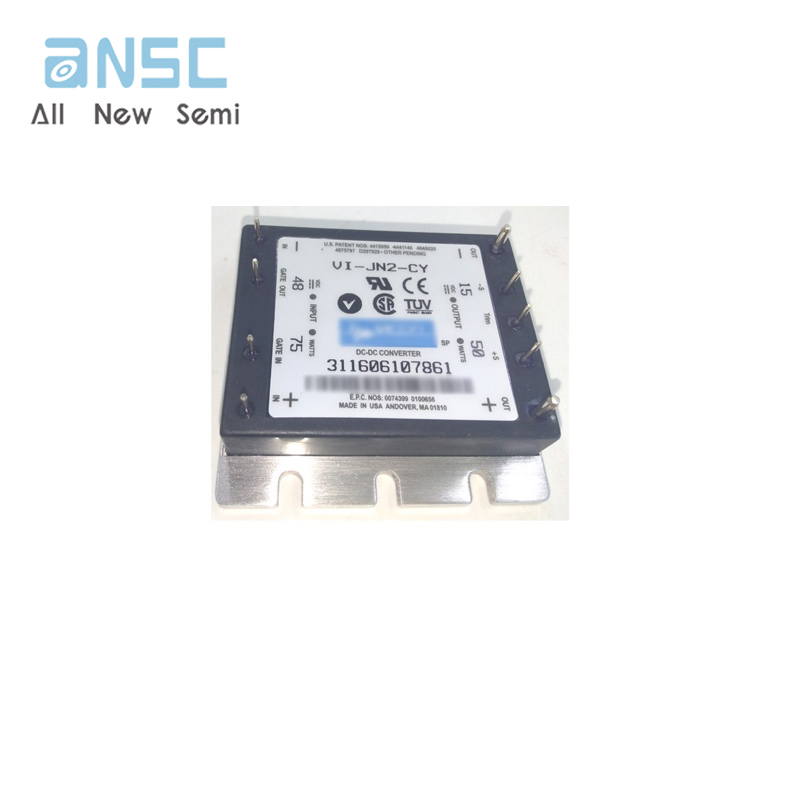

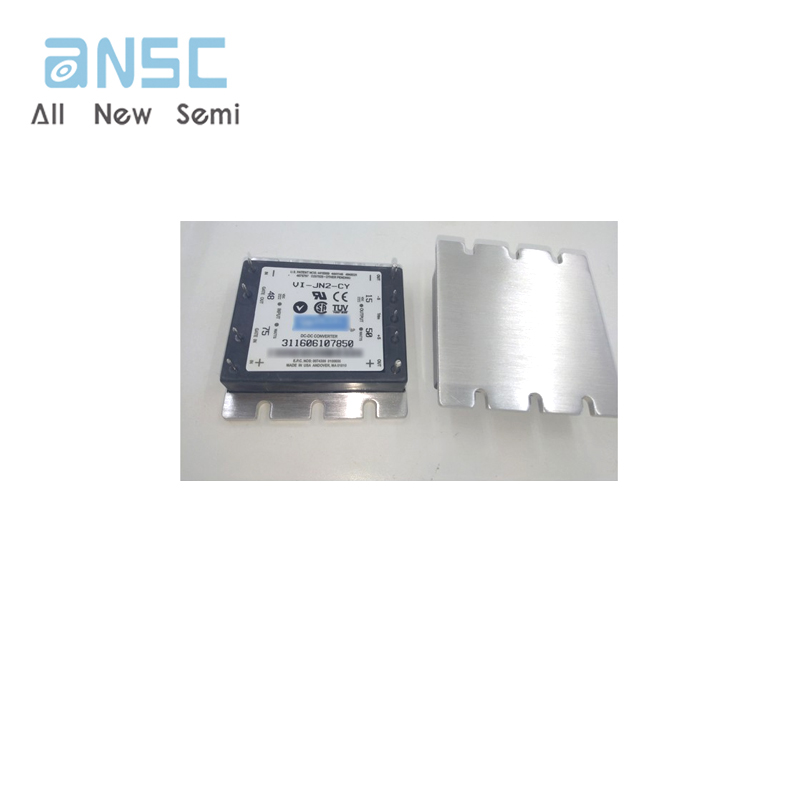

Actual image of the product

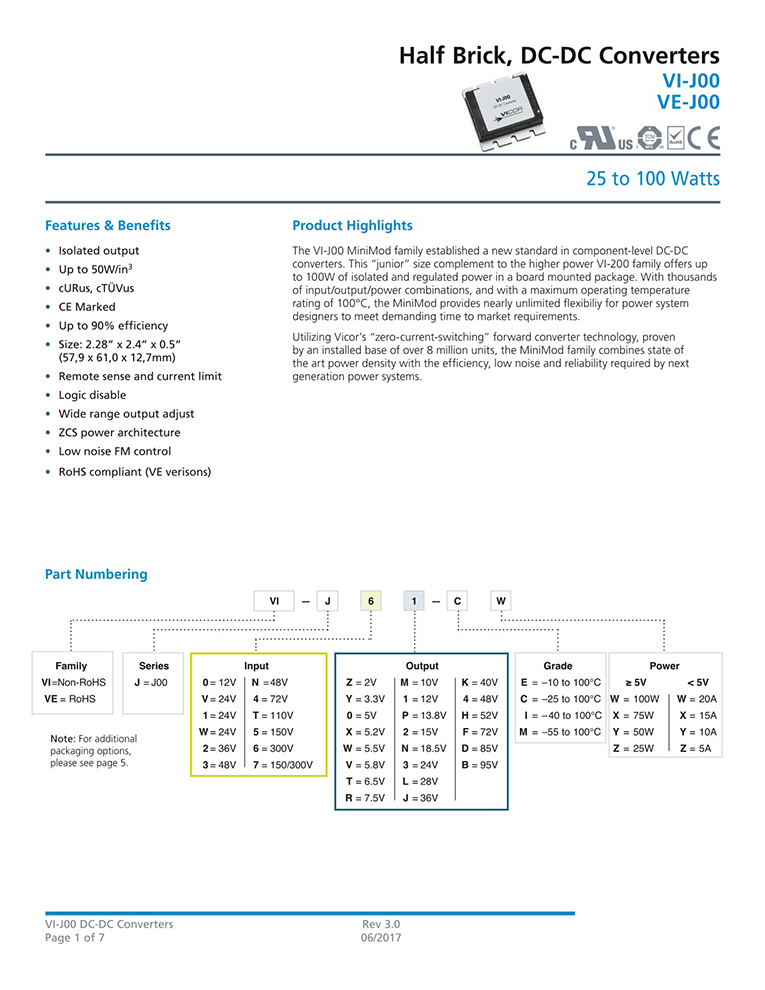

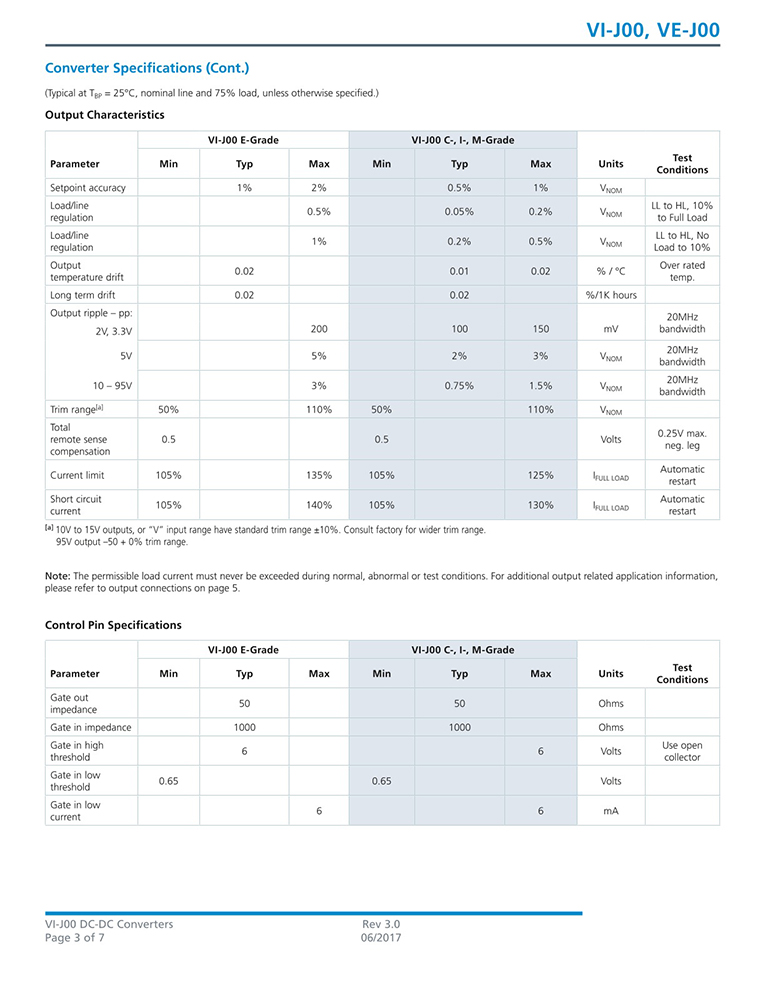

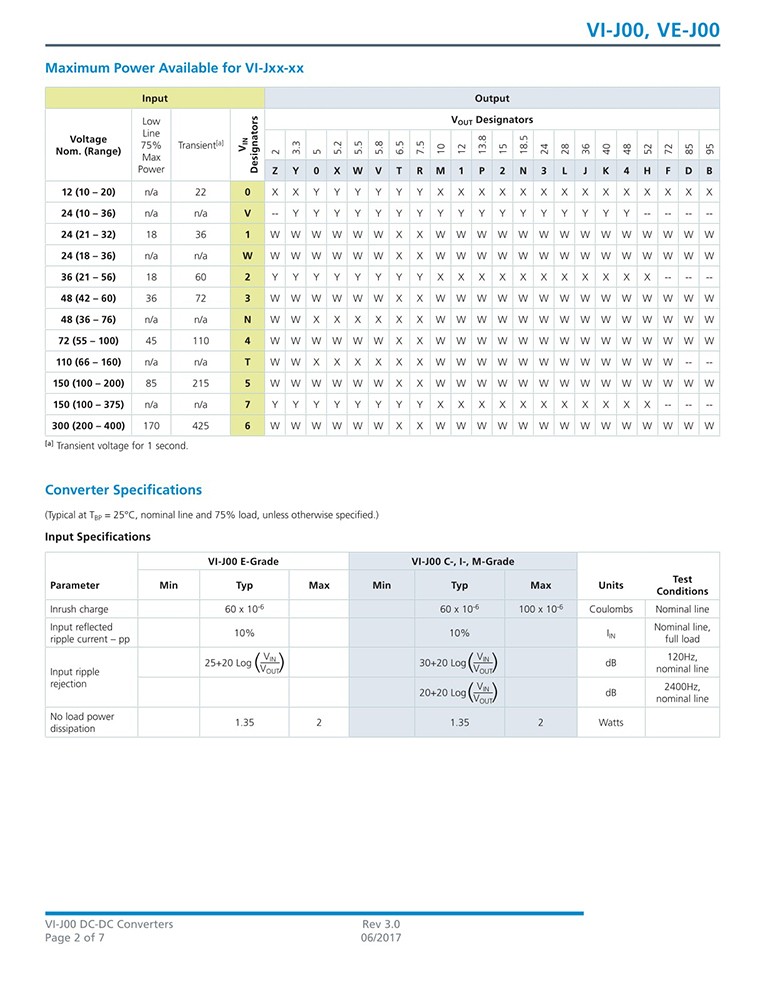

Product datasheet
For more information, please download
