Product Description
ANSC PART# | ANSC- IHLP5050FDER3R3M01 |
Part# | IHLP5050FDER3R3M01 |
Type： | Electronic components |
Manufactor | Vishay |
DC | new |

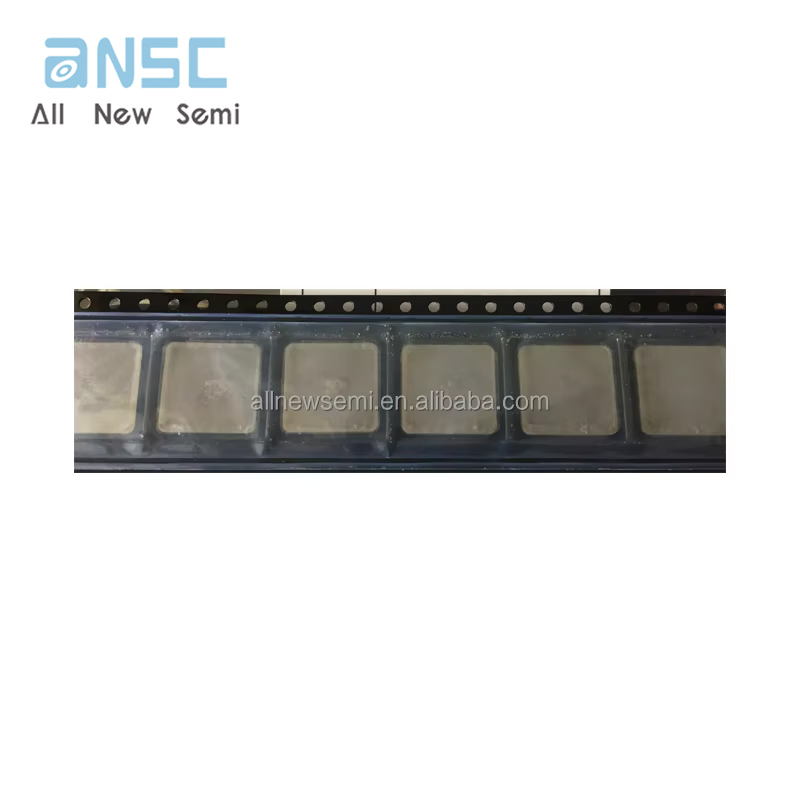

Actual image of the product
TYPE | DESCRIPTION |
|---|---|
Category | Inductors, Coils, Chokes Fixed Inductors |
Mfr | Vishay Dale |
Series | IHLP-5050FD-01 |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Type | Molded |
Material - Core | - |
Inductance | 3.3 µH |
Tolerance | ±20% |
Current Rating (Amps) | 18 A |
Current - Saturation (Isat) | 35A |
Shielding | Shielded |
DC Resistance (DCR) | 6.8mOhm Max |
Q @ Freq | - |
Frequency - Self Resonant | - |
Ratings | - |
Operating Temperature | -55°C ~ 125°C |
Inductance Frequency - Test | 100 kHz |
Mounting Type | Surface Mount |
Package / Case | Nonstandard |
Supplier Device Package | - |
Size / Dimension | 0.520" L x 0.508" W (13.20mm x 12.90mm) |
Height - Seated (Max) | 0.256" (6.50mm) |

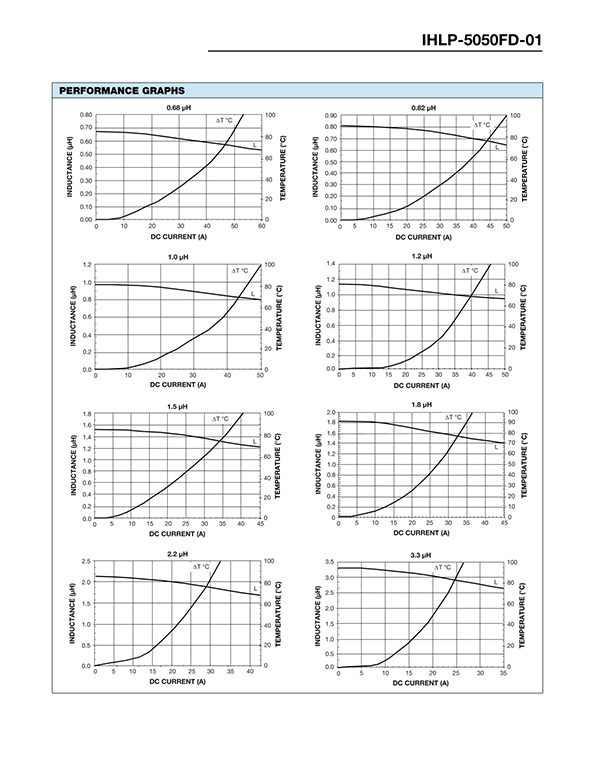

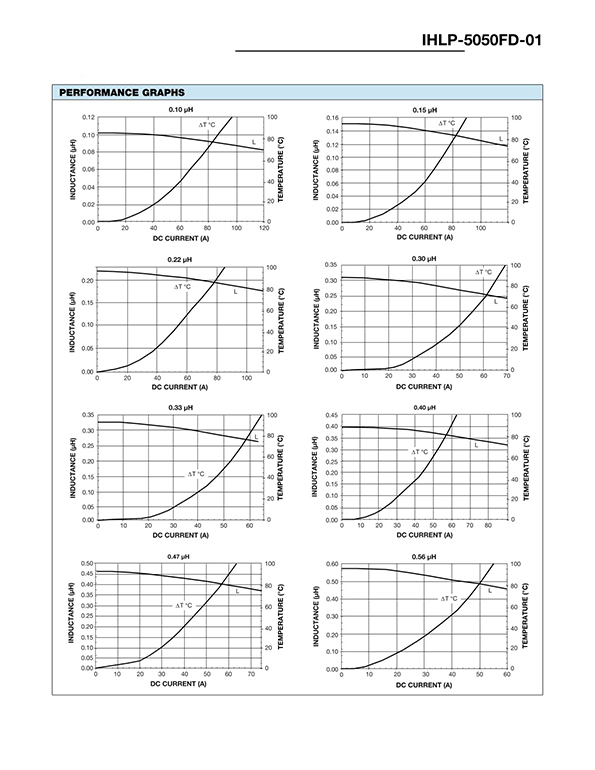

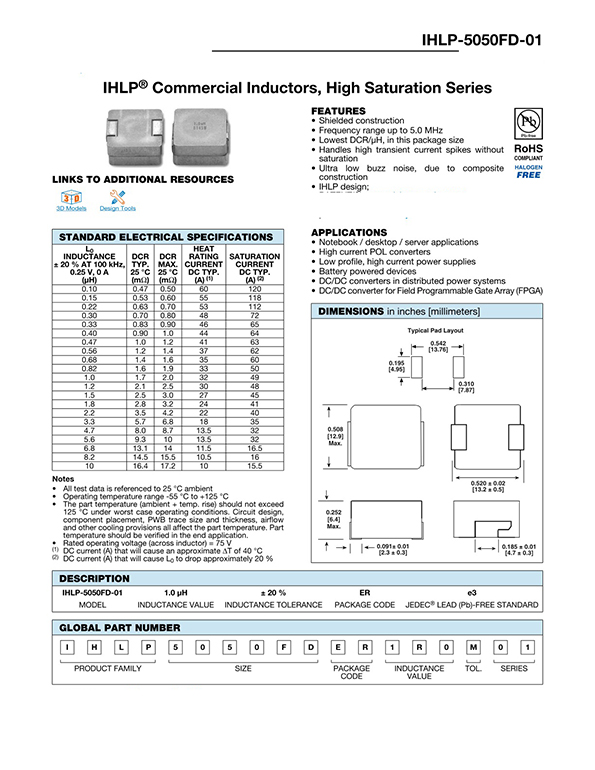

Product datasheet
For more information, please download
