Product Description
ANSC PART# | ANSC- BRT13-H |
Part# | BRT13-H |
Type： | Electronic components |
Manufactor | Vishay |
DC | new |

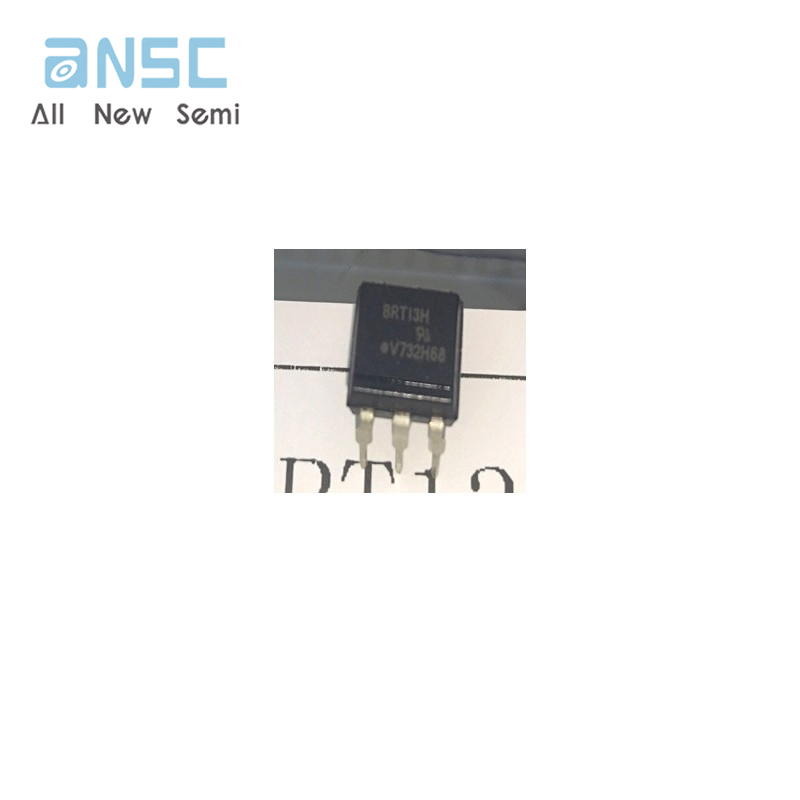

Actual image of the product
TYPE | DESCRIPTION |
|---|---|
Category | Isolators Optoisolators Triac, SCR Output Optoisolators |
Manufacturer | Vishay Semiconductor Opto Division |
Series | - |
Packaging | Tube |
Part Status | Obsolete |
Output Type | Triac |
Zero Crossing Circuit | No |
Number of Channels | 1 |
Voltage - Isolation | 5300Vrms |
Voltage - Off State | 800 V |
Static dV/dt (Min) | 10kV/µs |
Current - LED Trigger (Ift) (Max) | 2mA |
Current - On State (It (RMS)) (Max) | 300 mA |
Current - Hold (Ih) | 500µA |
Turn On Time | - |
Voltage - Forward (Vf) (Typ) | 1.1V |
Current - DC Forward (If) (Max) | 20 mA |
Operating Temperature | -40°C ~ 100°C |
Mounting Type | Through Hole |
Package / Case | 6-DIP (0.300", 7.62mm) |
Supplier Device Package | 6-DIP |
Approval Agency | CQC, UL |
Base Product Number | BRT13 |

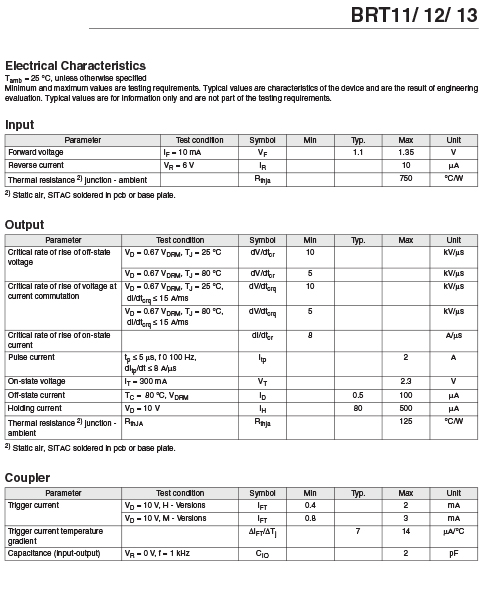

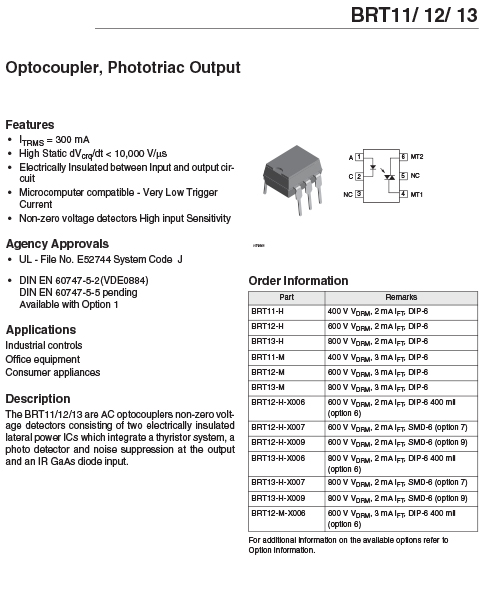

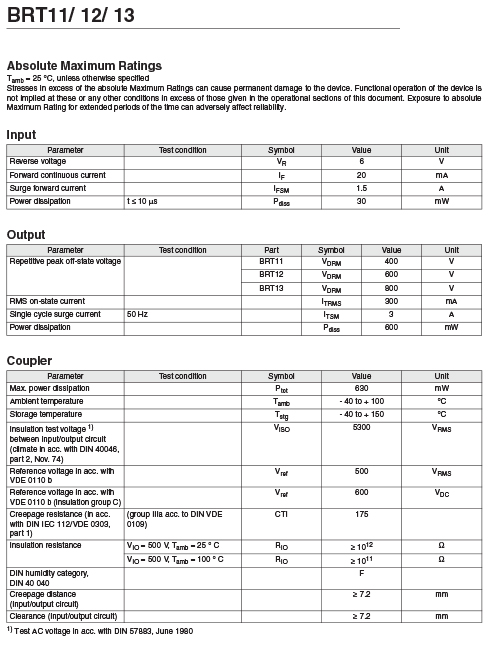

Product datasheet
For more information, please download
