LT1963AEST-3.3#PBF Overview
In the case of Tube cases, the regulater IC is delivered. Packaging of the Liner regulator IC takes the form of a TO-261-4, TO-261AA case. The PMIC chip has 3 terminations. Fixed is the Voltage Regulator Chip's output type. Linear IC consists of 1 battery regulators. The range of operating temperatures of Surface Mount are programmable in the Voltage Regulator Chip, so that the temperature can be varied as desired. Keeping the temperature at -40°C~125°C degrees is necessary for this regulator to function. There is an output function of Positive configured for this regulator. The sum of the pins in this unit is 3. The part includes 1 outputs in order to ensure that the voltage regulator IC performs effectively and in a timely manner. This voltage regulator IC has a dropout voltage of 10 volts. On the chip, there are pins for the 3 axis. Here's the basic part number for this IC regulator: LT1963. Upon reaching its maximal output current, 1.5A, it is able to satisfy the operation requirements. It operates in the 1mA Quiescent Current state. This regulator IC is operated by a 1mA-volt supply current.
LT1963AEST-3.3#PBF Features
340mV dropout voltage
LT1963AEST-3.3#PBF Applications
There are a lot of Linear Technology/Analog Devices
LT1963AEST-3.3#PBF Linear Voltage Regulators applications.
Switching regulator
Multiple-power supply system
Digital audio player
Digital TV
Smartcard
Industrial equipment
DVD and CD-ROM drive
Quick charge protocols
Measurement and control euipment
Aging system
Product Description
ANSC PART# | ANSC- LT1963AEST-3.3#PBF |
Part# | LT1963AEST-3.3#PBF |
Type： | Integrated Circuits |
Manufactor | Linear Technology/Analog Devices |
DC | new |

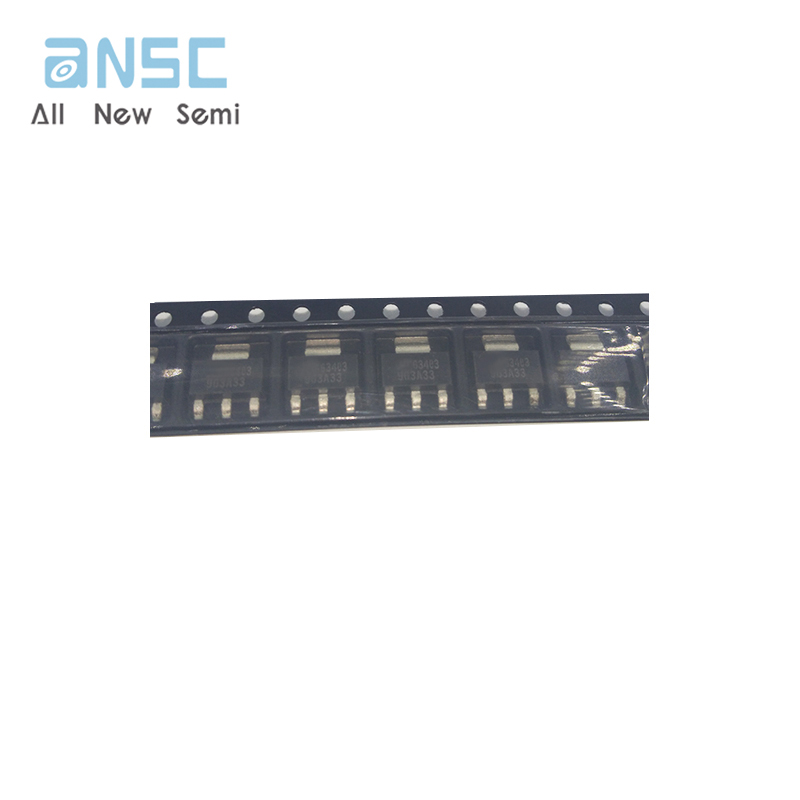

Actual image of the product
Product Attributes
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators |
Mfr | Analog Devices Inc. |
Series | - |
Packaging | Tube |
Part Status | Active |
Output Configuration | Positive |
Output Type | Fixed |
Number of Regulators | 1 |
Voltage - Input (Max) | 20V |
Voltage - Output (Min/Fixed) | 3.3V |
Voltage - Output (Max) | - |
Voltage Dropout (Max) | 0.55V @ 1.5A |
Current - Output | 1.5A |
Current - Quiescent (Iq) | 1.5 mA |
Current - Supply (Max) | 120 mA |
PSRR | 63dB (120Hz) |
Control Features | Enable |
Protection Features | Over Current, Over Temperature, Reverse Polarity |
Operating Temperature | -40°C ~ 125°C |
Mounting Type | Surface Mount |
Package / Case | TO-261-4, TO-261AA |
Supplier Device Package | SOT-223-3 |
Base Product Number | LT1963 |

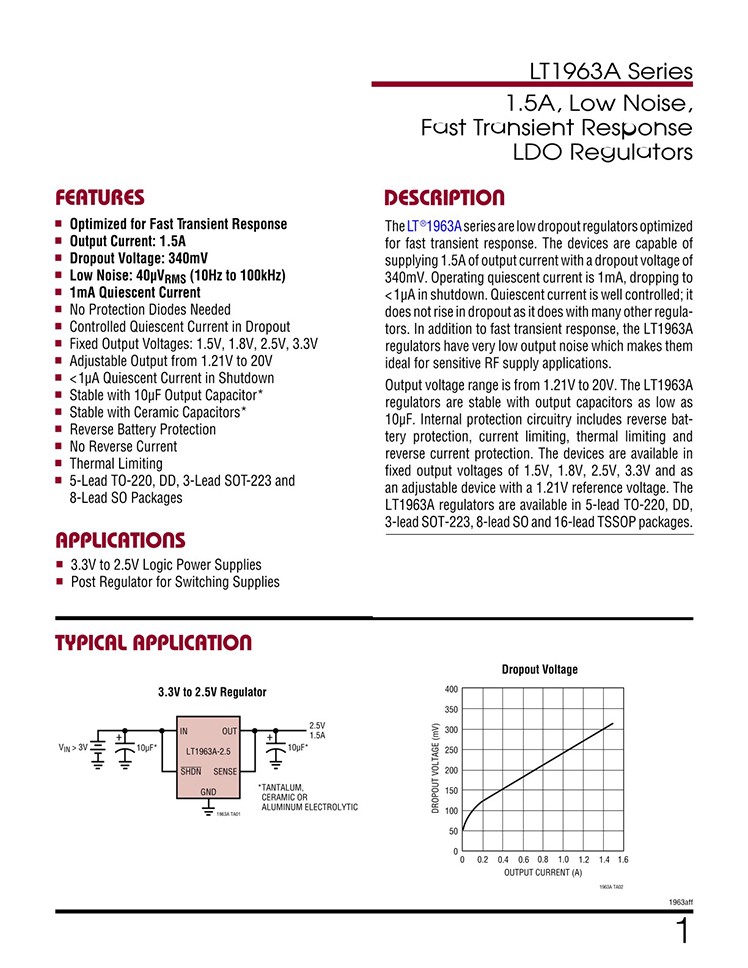

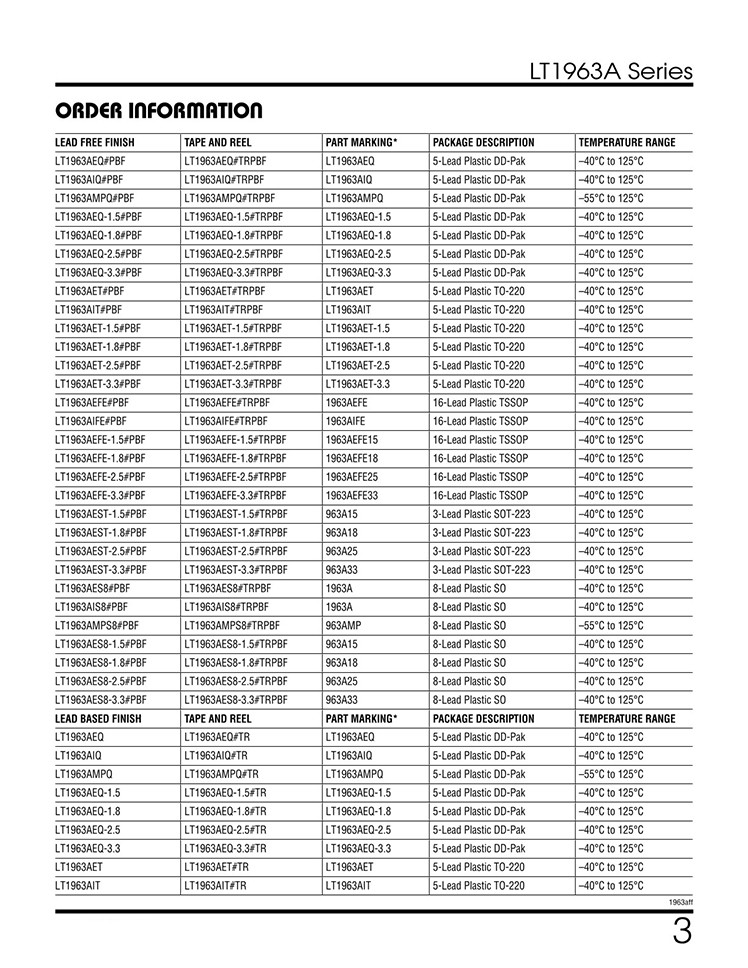

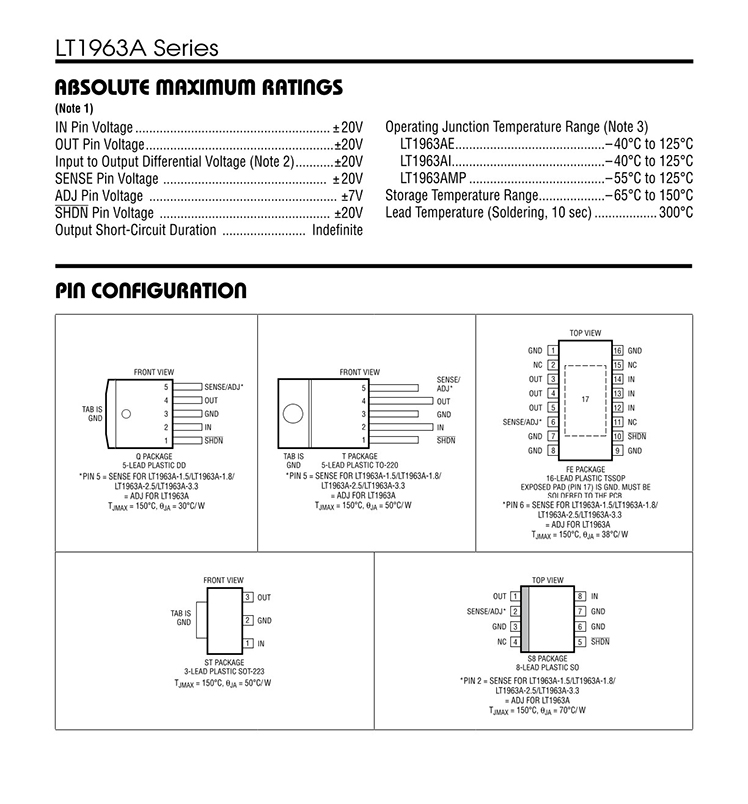

Product datasheet
For more information, please download
