Product Details
| Brief Description: The FSAB20PH60 is a 1-phase power driver module , designed for high-power applications. It features a 600V IGBT (Insulated Gate Bipolar Transistor) and is suitable for through-hole mounting. Features: 1-phase configuration 11A current rating 600V voltage rating 2500Vrms voltage isolation 16.5V operating supply voltage 27-pin PowerDIP module package Through-hole mounting Lead-free and RoHS compliant Operating temperature range: -20°C to 125°C Moisture sensitivity level (MSL): 1 (unlimited) Application Grade: The FSAB20PH60 is designed for high-power applications, such as: Motor drives Power supplies Industrial automation Renewable energy systems Applications: Motor control systems Power conversion systems Industrial automation systems Renewable energy systems Power supplies for industrial equipment Overall, the FSAB20PH60 is a robust and reliable power driver module suitable for high-power applications that require a 1-phase configuration and a high voltage rating. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- FSAB20PH60 |
| Ihs Manufacturer | Original |
| Package Description | Module-27 |
| Analog IC - Other Type | DC-DC UNREGULATED POWER SUPPLY MODULE |
| Input Voltage-Max | 276 V |
| Input Voltage-Min | 187 V |
| JESD-30 Code | R-XDMA-T27 |
| Number of Functions | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 27 |
| Output Voltage-Max | 400 V |
| Output Voltage-Nom | 280 V |
| Package Body Material | UNSPECIFIED |
| Package Code | DMA |
| Package Shape | RECTANGULAR |
| Package Style | MICROELECTRONIC ASSEMBLY |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Technology | HYBRID |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Trim/Adjustable Output | NO |

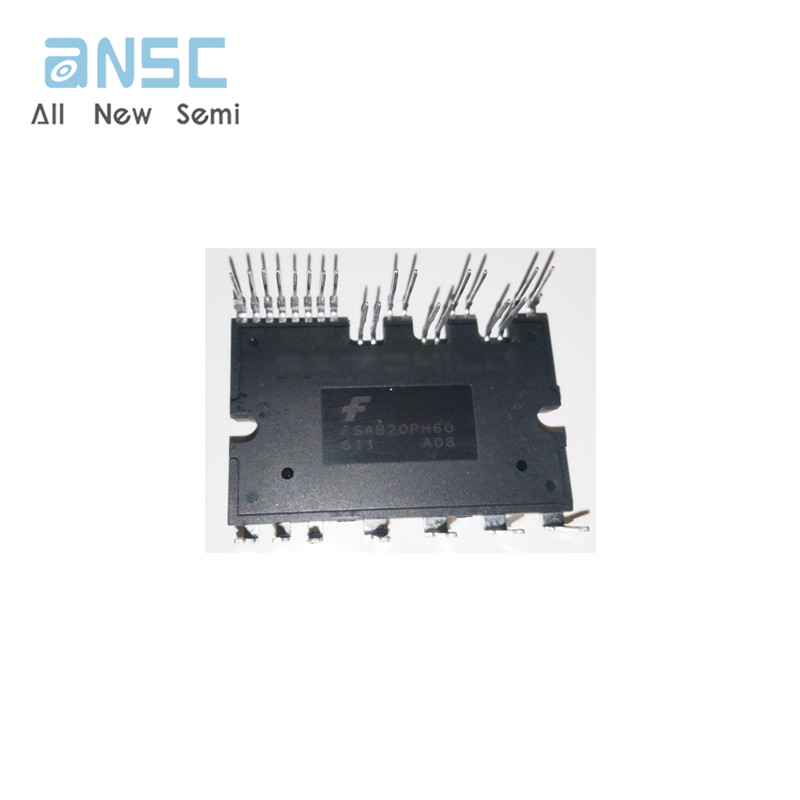

Actual image of the product

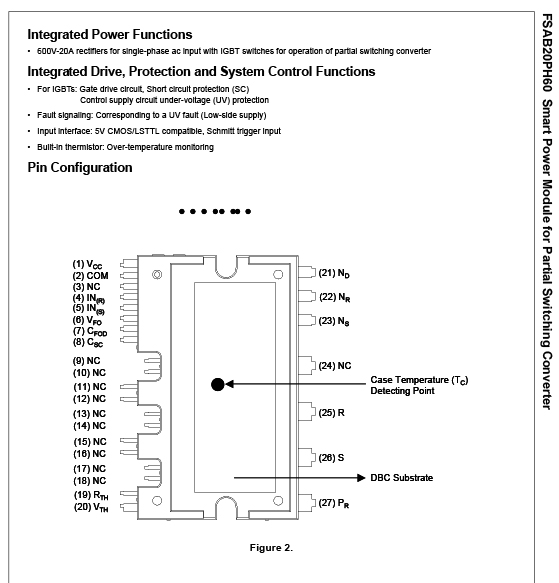

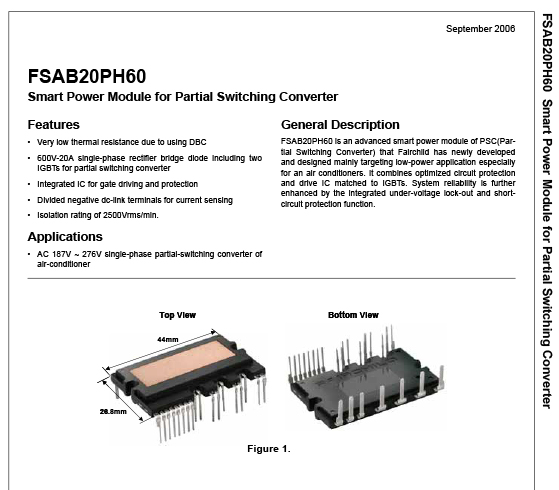

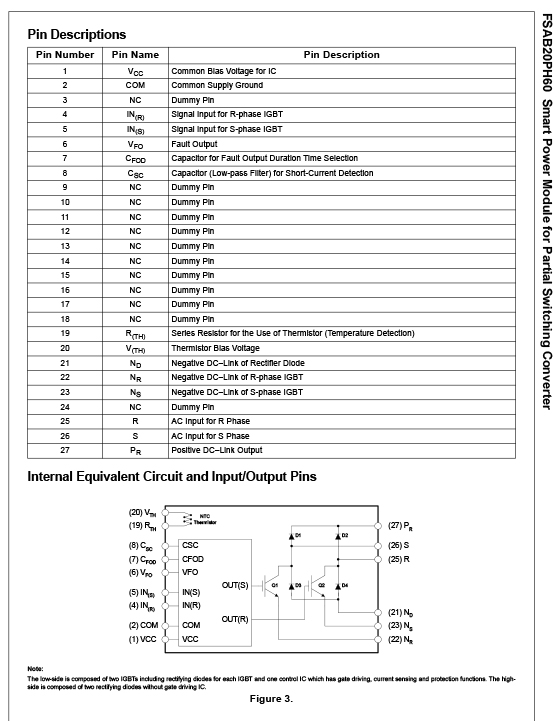

Product datasheet
For more information, please download
