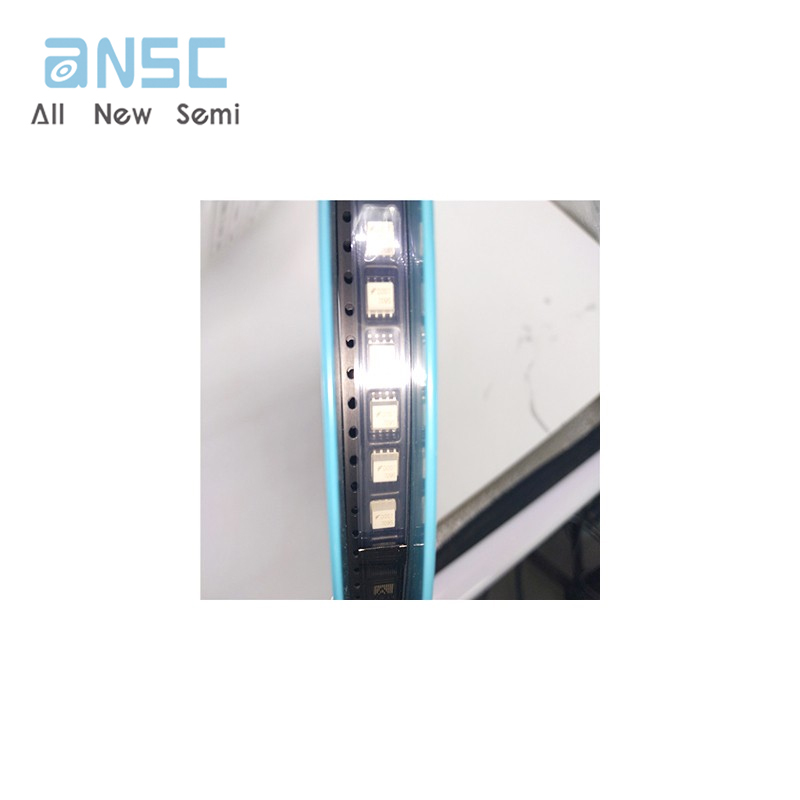

Hot sale original electronics MOCD207R1M OPTOISO 2.5KV 2CH TRANS 8SOIC Optoisolator Transistor Output 2500Vrms 2 Channel 8-SOIC_Electronic components & Bom

Product Details

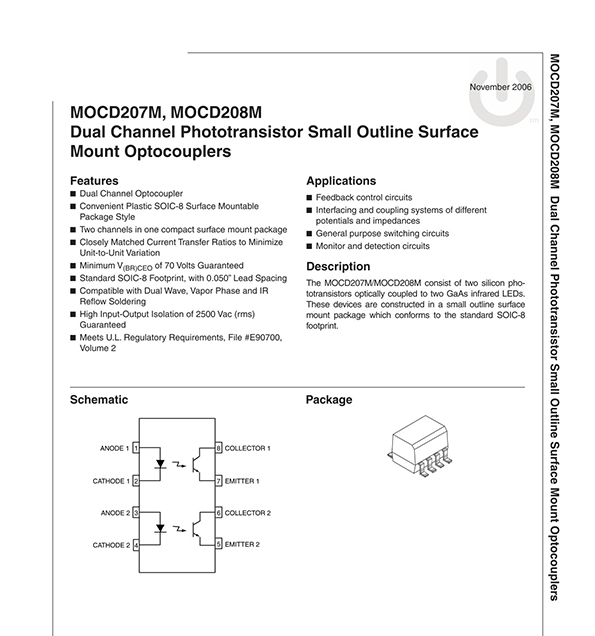

Features

■ Dual Channel Optocoupler

■ Convenient Plastic SOIC-8 Surface Mountable

Package Style

■ Two channels in one compact surface mount package

■ Closely Matched Current Transfer Ratios to Minimize

Unit-to-Unit Variation

■ Minimum V(BR)CEO of 70 Volts Guaranteed

■ Standard SOIC-8 Footprint, with 0.050” Lead Spacing

■ Compatible with Dual Wave, Vapor Phase and IR

Reflow Soldering

■ High Input-Output Isolation of 2500 Vac (rms)

Guaranteed

■ Meets U.L. Regulatory Requirements, File #E90700,

Volume 2

Applications

■ Feedback control circuits

■ Interfacing and coupling systems of different

potentials and impedances

■ General purpose switching circuits

■ Monitor and detection circuits

Description

The MOCD207M/MOCD208M consist of two silicon pho

totransistors optically coupled to two GaAs infrared LEDs.

These devices are constructed in a small outline surface

mount package which conforms to the standard SOIC-8

footprint

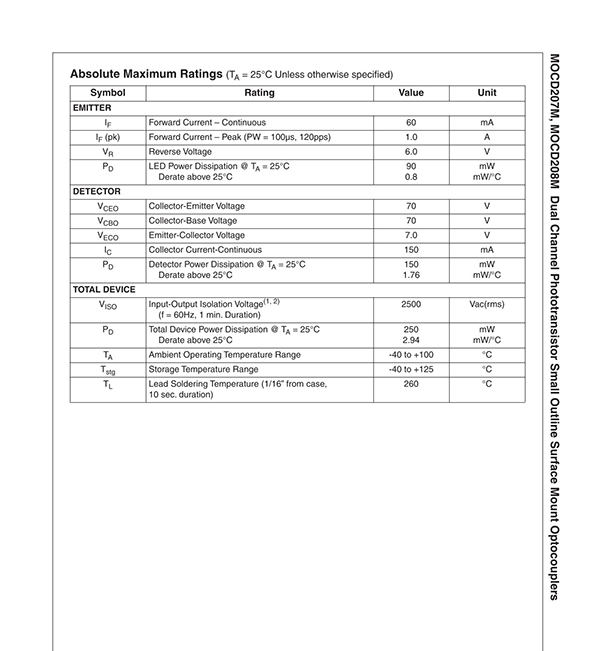

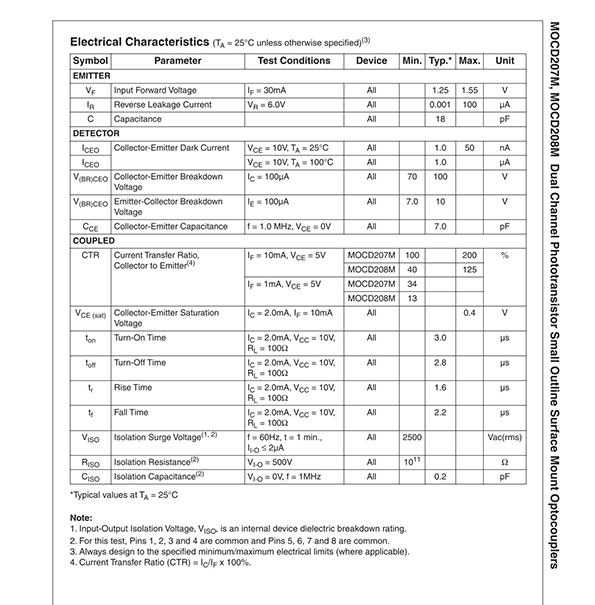

TYPE	DESCRIPTION
ANSC PART#	ANSC- MOCD207R1M
Category	Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer	onsemi
Series	-
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Obsolete
Number of Channels	2
Voltage - Isolation	2500Vrms
Current Transfer Ratio (Min)	100% @ 10mA
Current Transfer Ratio (Max)	200% @ 10mA
Turn On / Turn Off Time (Typ)	3µs, 2.8µs
Rise / Fall Time (Typ)	1.6µs, 2.2µs
Input Type	DC
Output Type	Transistor
Voltage - Output (Max)	70V
Current - Output / Channel	150mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
Base Product Number	MOCD20
