Product Details

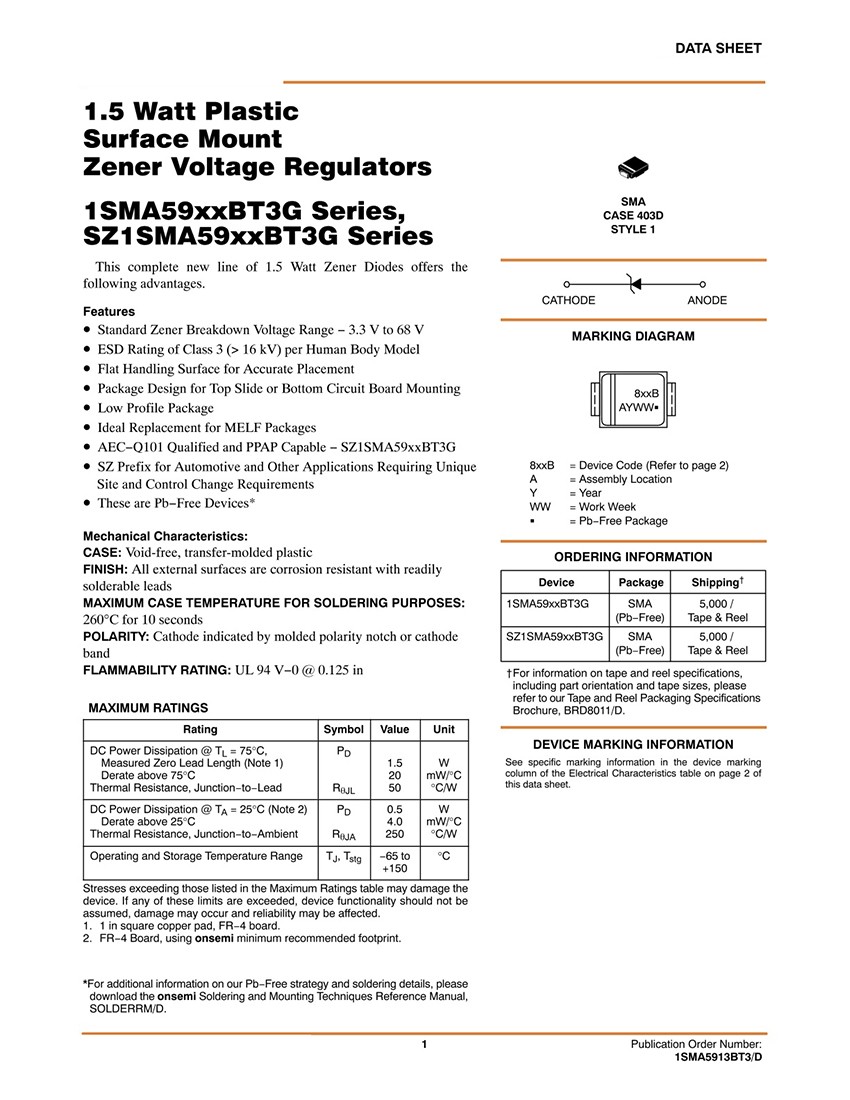

Features

• Standard Zener Breakdown Voltage Range − 3.3 V to 68 V

• ESD Rating of Class 3 (> 16 kV) per Human Body Model

• Flat Handling Surface for Accurate Placement

• Package Design for Top Slide or Bottom Circuit Board Mounting

• Low Profile Package

• Ideal Replacement for MELF Packages

• AEC−Q101 Qualified and PPAP Capable − SZ1SMA59xxBT3G

• SZ Prefix for Automotive and Other Applications Requiring Unique

Site and Control Change Requirements

• These are Pb−Free Devices*

Mechanical Characteristics:

CASE: Void-free, transfer-molded plastic

FINISH: All external surfaces are corrosion resistant with readily

solderable leads

MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES:

260°C for 10 seconds

POLARITY: Cathode indicated by molded polarity notch or cathode

band

FLAMMABILITY RATING: UL 94 V−0 @ 0.125 in

TYPE	DESCRIPTION

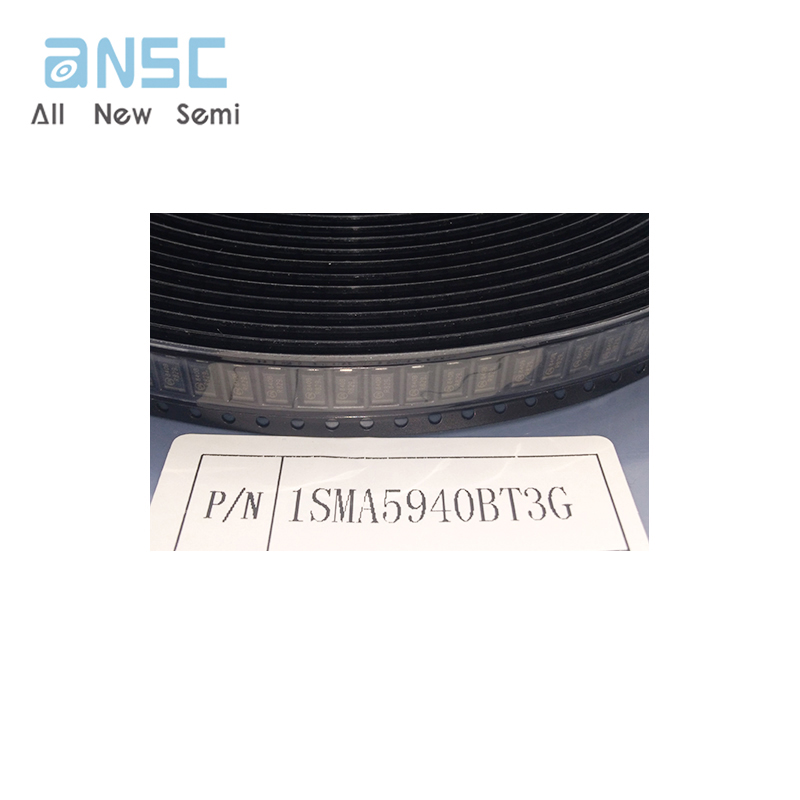

ANSC PART#	ANSC -1SMA5940BT3G
Category	Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Mfr	onsemi
Series	-
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
Voltage - Zener (Nom) (Vz)	43 V
Tolerance	±5%
Power - Max	1.5 W
Impedance (Max) (Zzt)	53 Ohms
Current - Reverse Leakage @ Vr	500 nA @ 32.7 V
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 200 mA
Operating Temperature	-65°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	SMA
Base Product Number	1SMA5940

For more information, please download
