Product Description
ANSC PART# | ANSC- FDD3682 |
Part# | FDD3682 |
Type： | Transistors |
Manufactor | Original |
DC | new |

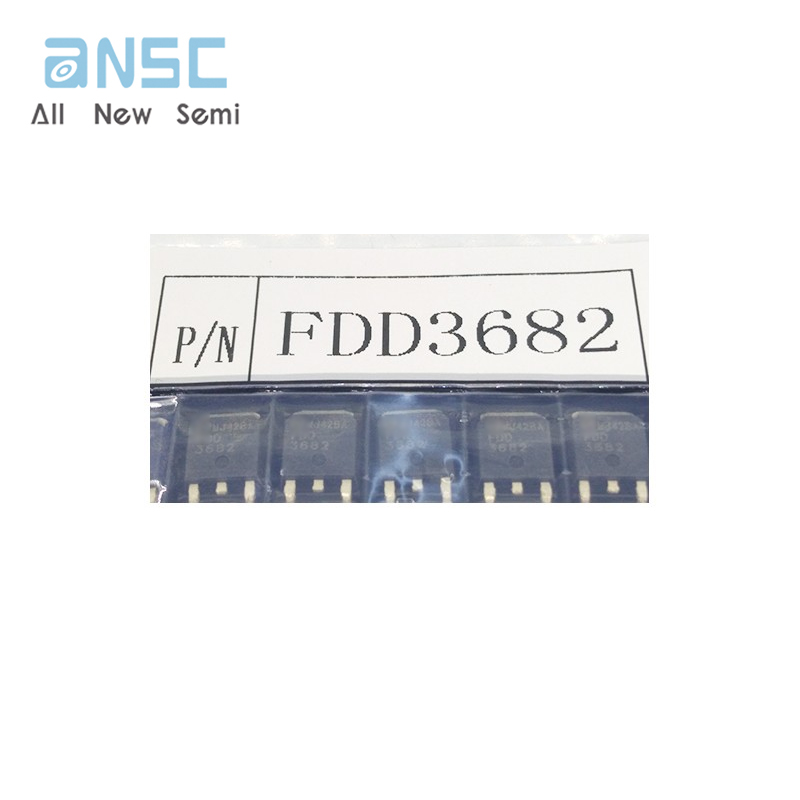

Actual image of the product
TYPE | DESCRIPTION |
|---|---|
Category | Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
Mfr | onsemi |
Series | PowerTrench® |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Not For New Designs |
FET Type | N-Channel |
Technology | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss) | 100 V |
Current - Continuous Drain (Id) @ 25°C | 5.5A (Ta), 32A (Tc) |
Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
Rds On (Max) @ Id, Vgs | 36mOhm @ 32A, 10V |
Vgs(th) (Max) @ Id | 4V @ 250µA |
Gate Charge (Qg) (Max) @ Vgs | 28 nC @ 10 V |
Vgs (Max) | ±20V |
Input Capacitance (Ciss) (Max) @ Vds | 1250 pF @ 25 V |
FET Feature | - |
Power Dissipation (Max) | 95W (Tc) |
Operating Temperature | -55°C ~ 175°C (TJ) |
Mounting Type | Surface Mount |
Supplier Device Package | TO-252AA |
Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
Base Product Number | FDD368 |

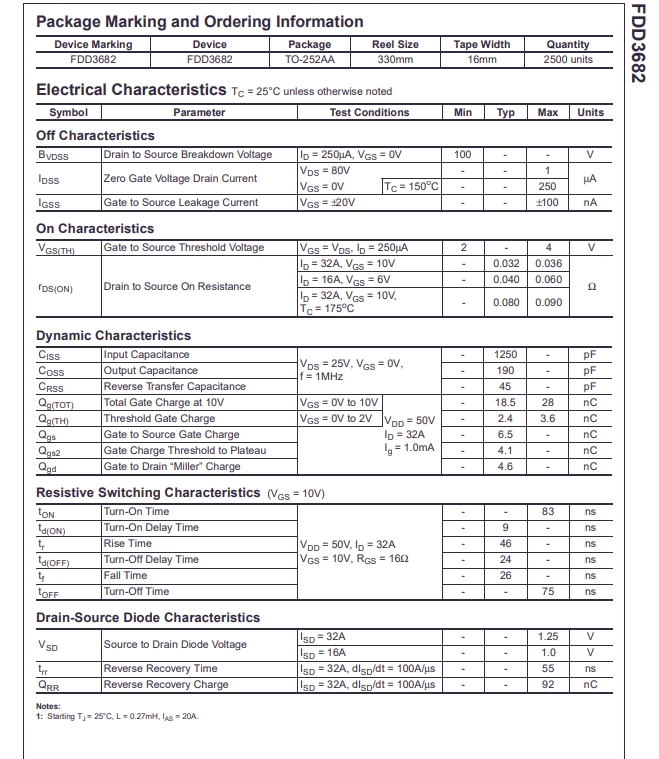

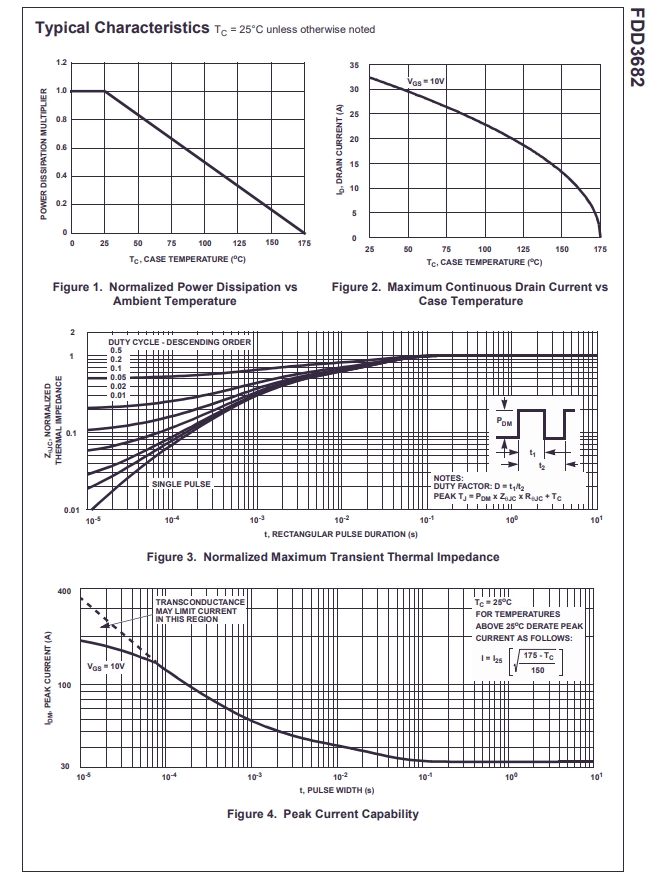

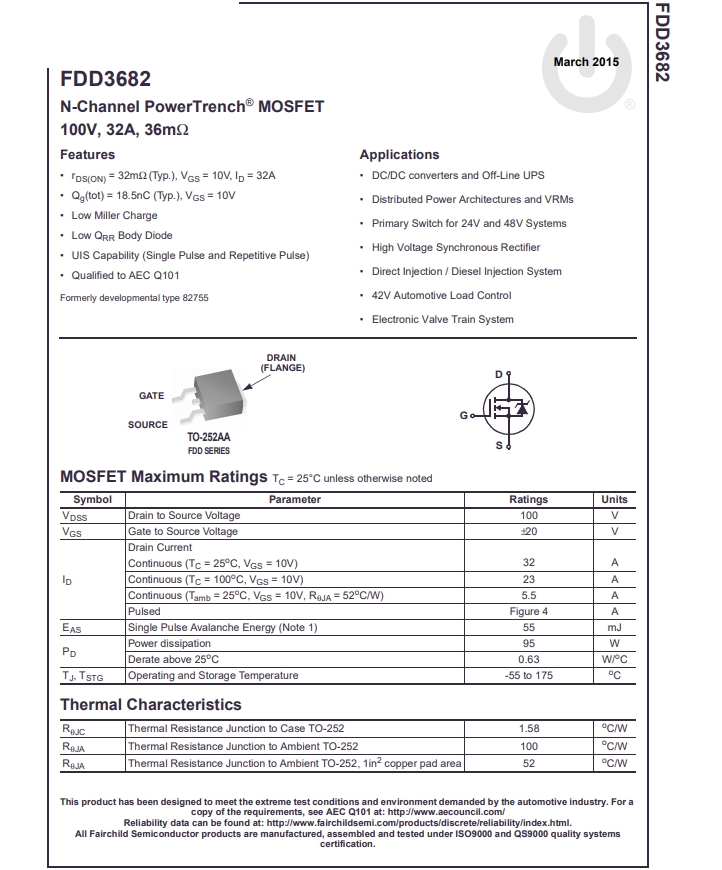

Product datasheet
