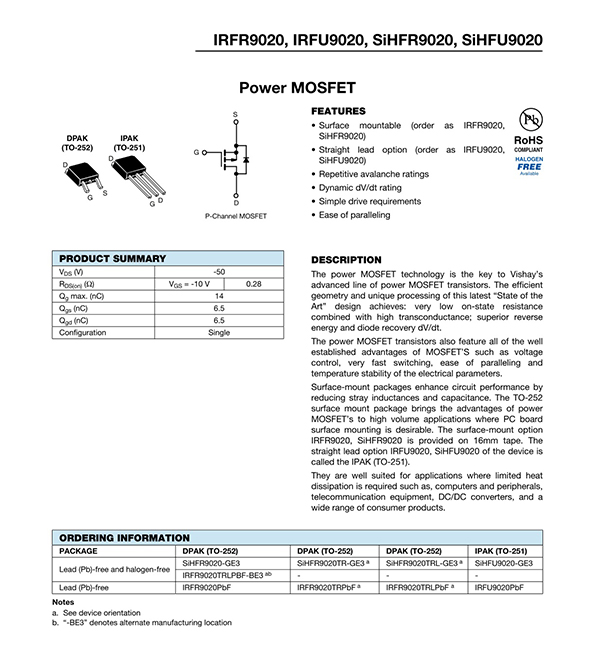

DESCRIPTION The Power MOSFET technology is the key to Vishay’s advanced line of Power MOSFET transistors. The efficient geometry and unique processing of this latest “State of the Art” design achieves: very low on-state resistance combined with high transconductance; superior reverse energy and diode recovery dV/dt. The Power MOSFET transistors also feature all of the well established advantages of MOSFET’S such as voltage control, very fast switching, ease of paralleling and temperature stability of the electrical parameters. Surface mount packages enhance circuit performance by reducing stray inductances and capacitance. The TO-252 surface mount package brings the advantages of Power MOSFET’s to high volume applications where PC Board surface mounting is desirable. The surface mount option IRFR9020/SiHFR9020 is provided on 16mm tape. The straight lead option IRFR9020/SiHFR9020 of the device is called the IPAK (TO-251). They are well suited for applications where limited heat dissipation is required such as, computers and peripherals, telecommunication equipment, DC/DC converters, and a wide range of consumer products. FEATURES • Surface Mountable (Order As IRFR9020/SiHFR9020) • Straight Lead Option (Order As IRFU9020/SiHFU9020) • Repetitive Avalanche Ratings • Dynamic dV/dt Rating • Simple Drive Requirements • Ease of Paralleling • Lead (Pb)-free Available |
Product Description
| Type | Description |
| ANSC PART# |
ANSC-IRFR9020TRPBF |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 50 V |
|
Current - Continuous Drain (Id) @ 25°C |
9.9A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 280mOhm @ 5.7A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 14 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 490 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 42W (Tc) |
| Operating Temperature |
-55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | DPAK |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | IRFR9020 |

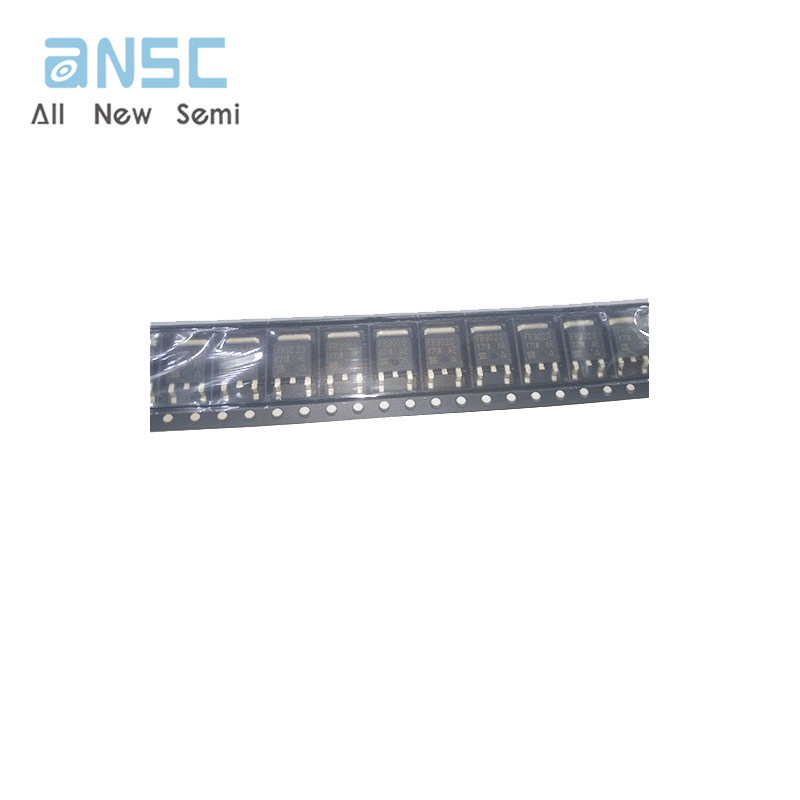

Actual image of the product
