Product Details
|
Brief Description: The SI4288DY-T1-GE3 is a dual N-channel metal-oxide-semiconductor (MOSFET) array , designed for switching applications. It features a logic-level gate and operates in enhancement mode. Features: Dual N-channel MOSFET array Logic-level gate Metal-oxide-semiconductor (MOS) technology Enhancement mode operation Continuous drain current (ID) up to 7.4A Current - continuous drain (Id) up to 9.2A at 25°C Drain to source breakdown voltage of 40V Gate to source voltage (Vgs) of 20V Input capacitance (Ciss) of 580pF at 20V Gate charge (Qg) of 15nC at 10V Fall time of 8ns Turn-on delay time of 7ns Turn-off delay time of 16ns Threshold voltage (Vgs(th)) of 1.2V at 250μA Rds(on) of 20mΩ at 10A and 10V Operating temperature range of -55°C to 150°C Maximum power dissipation of 3.1W Surface mount package with 8 pins Application Grade: The SI4288DY-T1-GE3 is designed for high-frequency switching applications, such as power supplies, motor control, and LED lighting. Applications: Power supplies Motor control LED lighting Switching applications requiring high-frequency operation Applications requiring low Rds(on) and high current handling capability |
Product Description
| Type | Description |
| ANSC PART# | ANSC-SI4288DY-T1-GE3 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| FET, MOSFET Arrays | |
| Manufacturer | Original |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 9.2A |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 580pF @ 20V |
| Power - Max | 3.1W |
| Operating Temperature |
-55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | SI4288 |

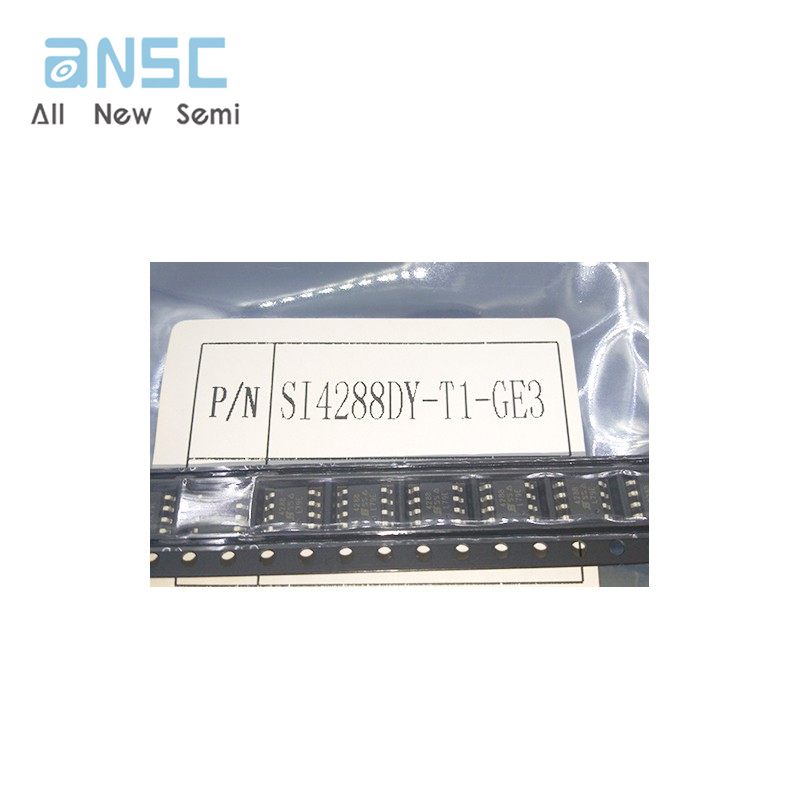

Actual image of the product

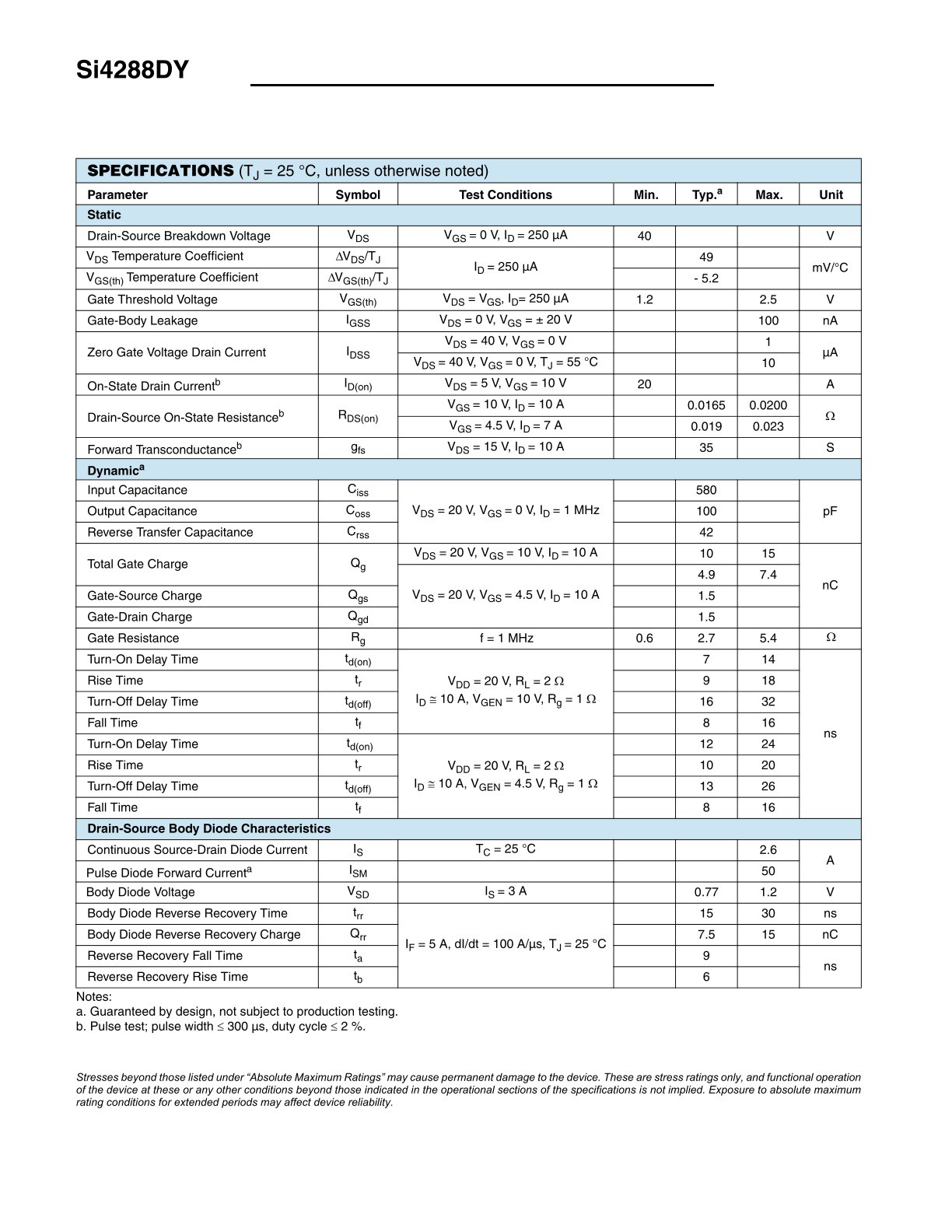

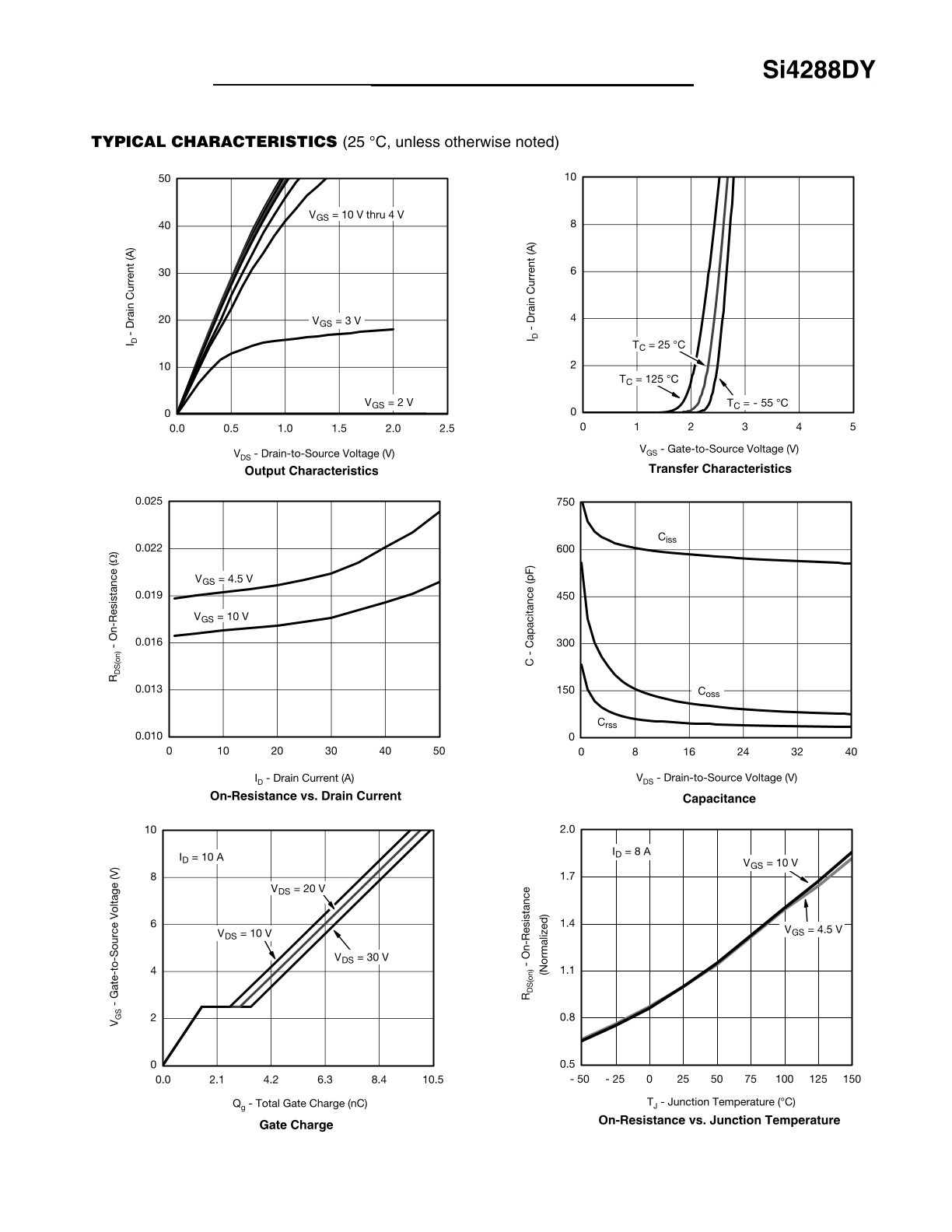

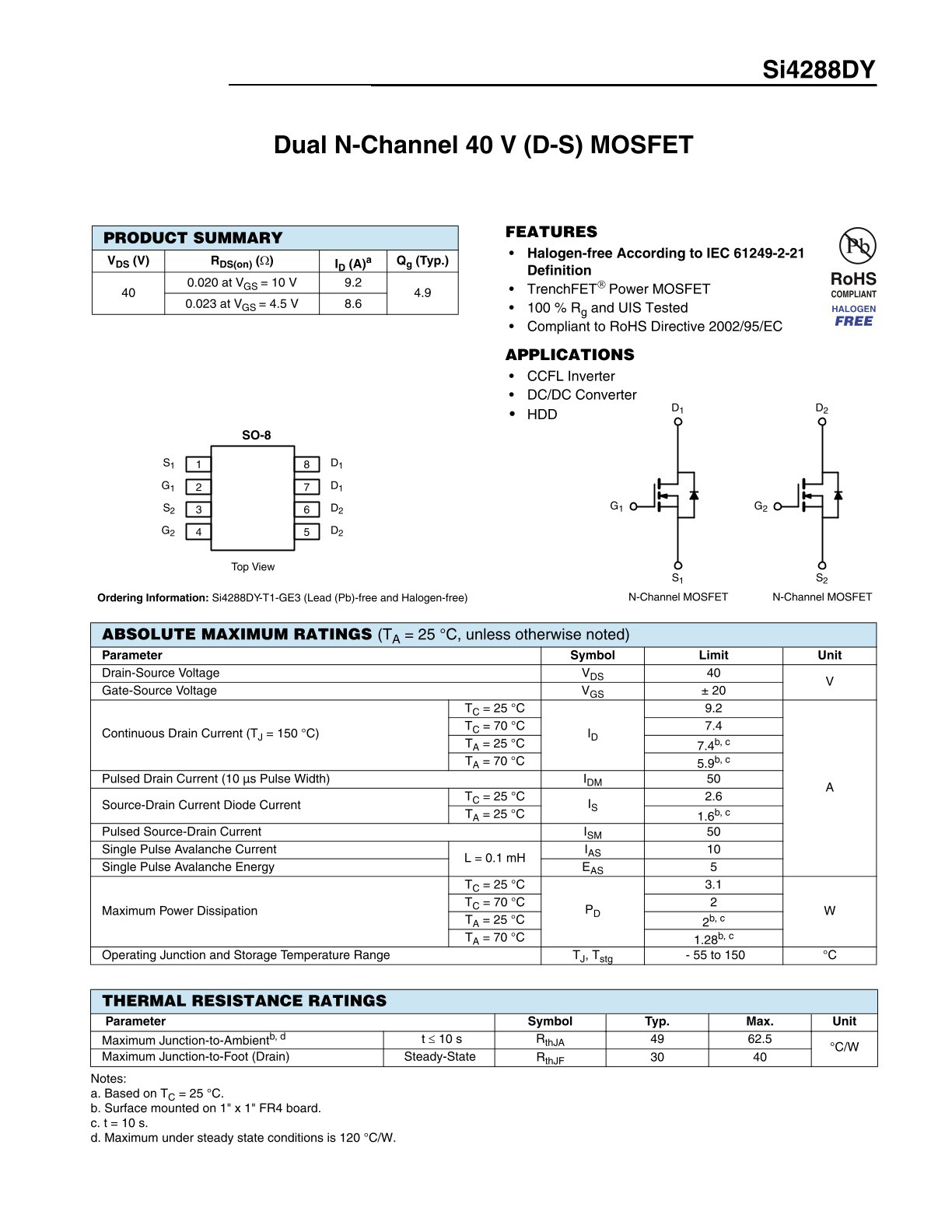

Product datasheet
For more information, please download
