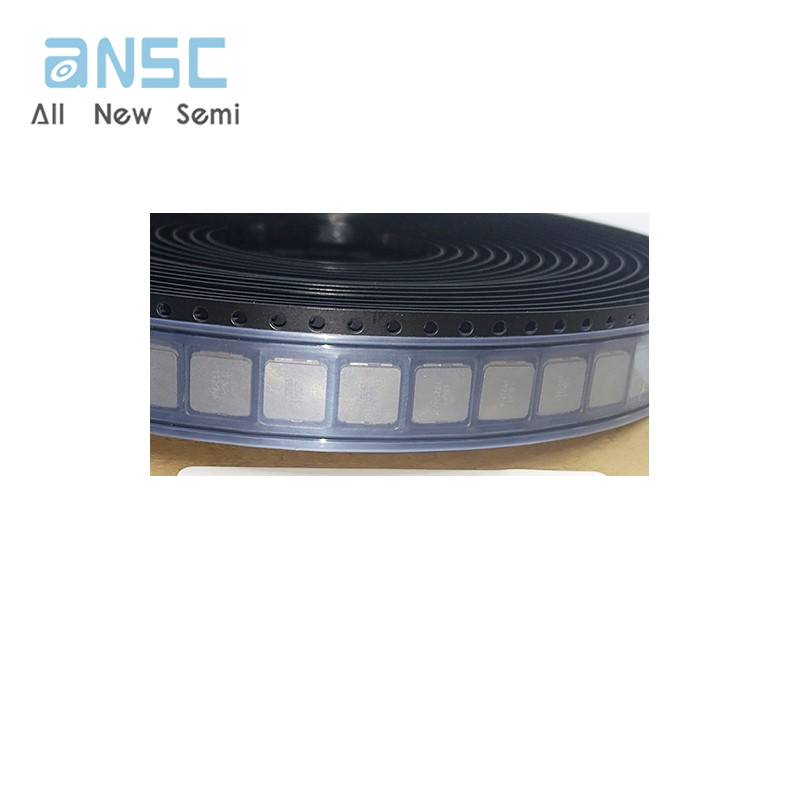

Hot sale original electronics IHLP2525CZER1R0M01 FIXED IND 1UH 11A 10 MOHM SMD 1 µH Shielded Molded Inductor 11 A 10mOhm Max Nonstandard_Electronic components & Bom

Product Details

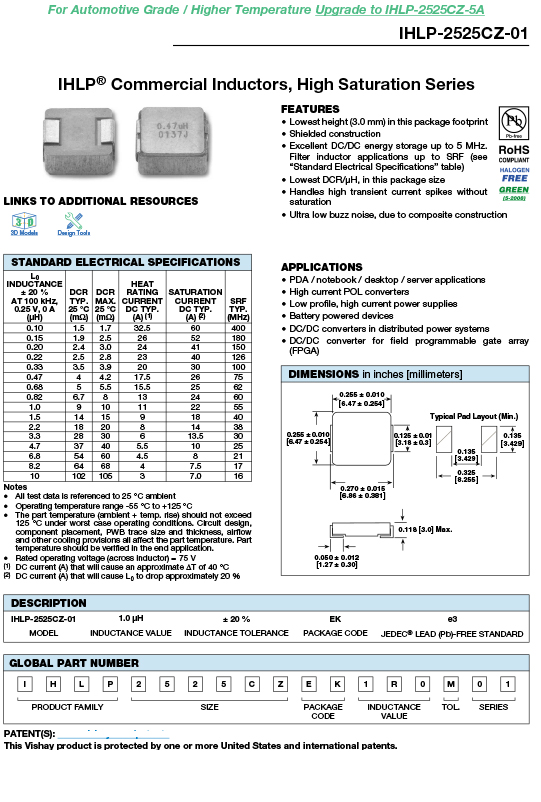

FEATURES

• Lowest height (3.0 mm) in this package footprint

• Shielded construction

• Excellent DC/DC energy storage up to 5 MHz.

Filter inductor applications up to SRF (see

“Standard Electrical Specifications” table)

• Lowest DCR/μH, in this package size

• Handles high transient current spikes without

saturation

• Ultra low buzz noise, due to composite construction

APPLICATIONS

• PDA / notebook / desktop / server applications

• High current POL converters

• Low profile, high current power supplies

• Battery powered devices

• DC/DC converters in distributed power systems

• DC/DC converter for field programmable gate array

(FPGA)

TYPE	DESCRIPTION
Category	Inductors, Coils, Chokes Fixed Inductors
Mfr	Original
Series	IHLP-2525CZ-01

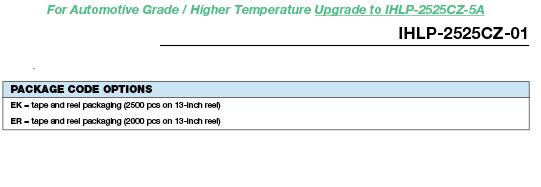

Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
Type	Molded
Material - Core	-
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	11 A
Current - Saturation (Isat)	22A
Shielding	Shielded
DC Resistance (DCR)	10mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.270" L x 0.255" W (6.86mm x 6.47mm)
Height - Seated (Max)	0.118" (3.00mm)

For more information, please download
