Product Details
FEATURES
• Lowest height (3.0 mm) in this package footprint
• Shielded construction
• Excellent DC/DC energy storage up to 5 MHz. Filter inductor applications up to SRF (see “Standard Electrical Specifications” table)
• Lowest DCR/μH, in this package size
• Handles high transient current spikes without saturation
• Ultra low buzz noise, due to composite construction
APPLICATIONS
• PDA / notebook / desktop / server applications
• High current POL converters
• Low profile, high current power supplies
• Battery powered devices
• DC/DC converters in distributed power systems
• DC/DC converter for Field Programmable Gate Array (FPGA)
Product Description
Type | Description |
|---|---|
Category | Inductors, Coils, Chokes Fixed Inductors |
Mfr | / |
Series | IHLP-2525AH-01 |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Type | Molded |
Material - Core | - |
Inductance | 1 µH |
Tolerance | ±20% |
Current Rating (Amps) | 7 A |
Current - Saturation (Isat) | 14A |
Shielding | Shielded |
DC Resistance (DCR) | 18.3mOhm Max |
Q @ Freq | - |
Frequency - Self Resonant | - |
Ratings | - |
Operating Temperature | -55°C ~ 125°C |
Inductance Frequency - Test | 100 kHz |
Mounting Type | Surface Mount |
Package / Case | Nonstandard |
Supplier Device Package | - |
Size / Dimension | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
Height - Seated (Max) | 0.071" (1.80mm) |

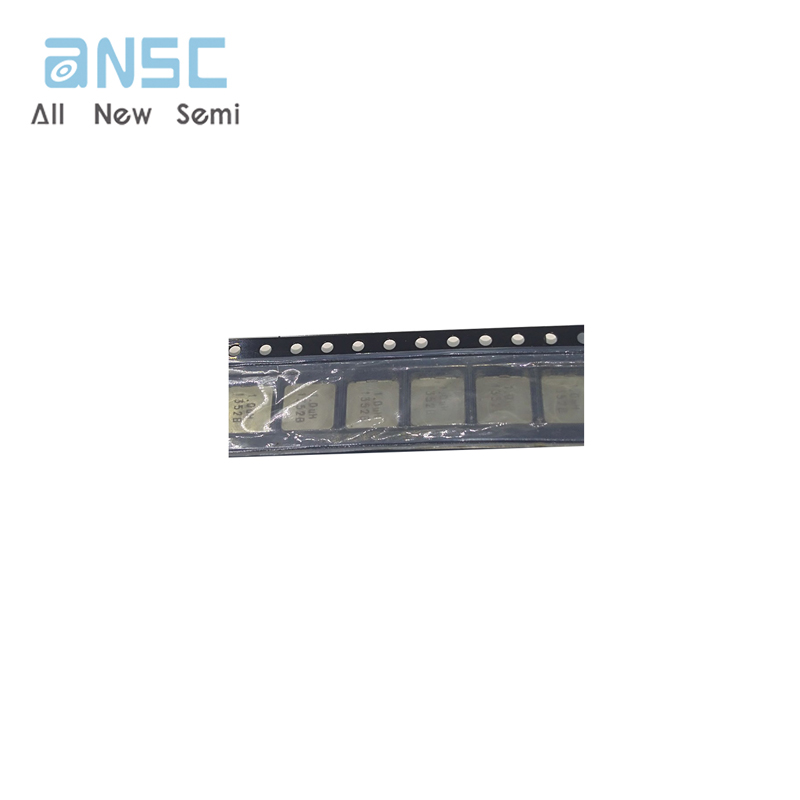

Actual image of the product
