Product Details
■ Features
● High reliability ...............Stable at high temperature and humidity
(85 °C 85 %RH rated load, Category temperature range : –55 to +155 °C)
● High accuracy...............Small resistance tolerance and Temperature Coeffi cient of Resistance
● High performance.........Low current noise, excellent linearity
● Reference Standard......IEC 60115-8, JIS C 5201-8, EIAJ RC-2133B
● RoHS compliant
■ Packaging Methods, Land Pattern, Soldering Conditions and Safety Precautions Please see Data Files
Product Description
| Type | Description |
| ANSC PART# | ANSC - ERA-3AEB104V |
| Category | Resistors |
| Chip Resistor - Surface Mount | |
| Mfr | Panasonic |
| Series | ERA-3A |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Resistance | 100 kOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.1W, 1/10W |
| Composition | Thin Film |
| Features | Automotive AEC-Q200 |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 603 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | ERA-3AEB |

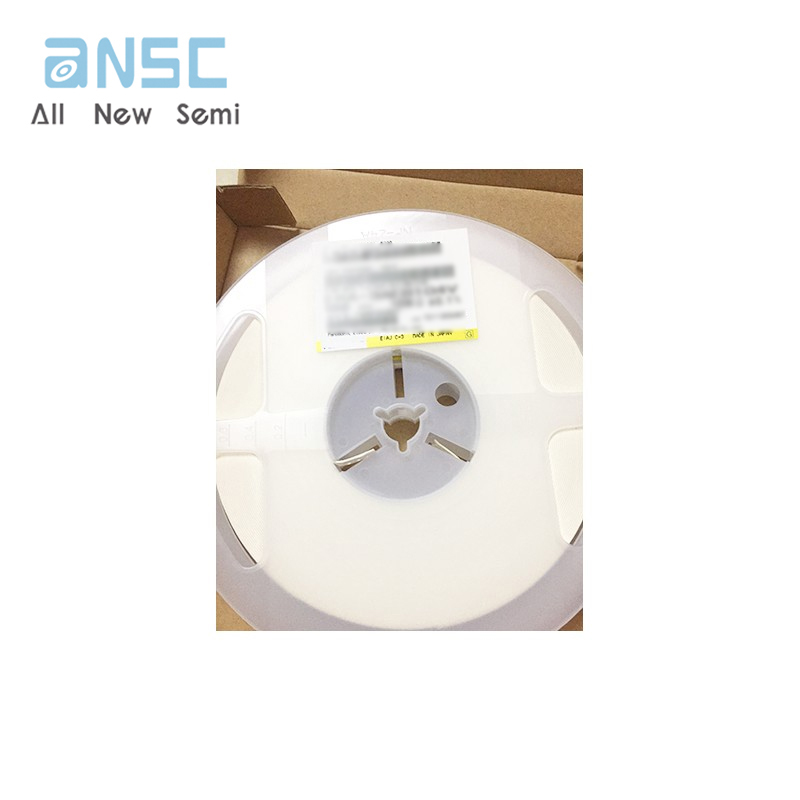

Product Photos

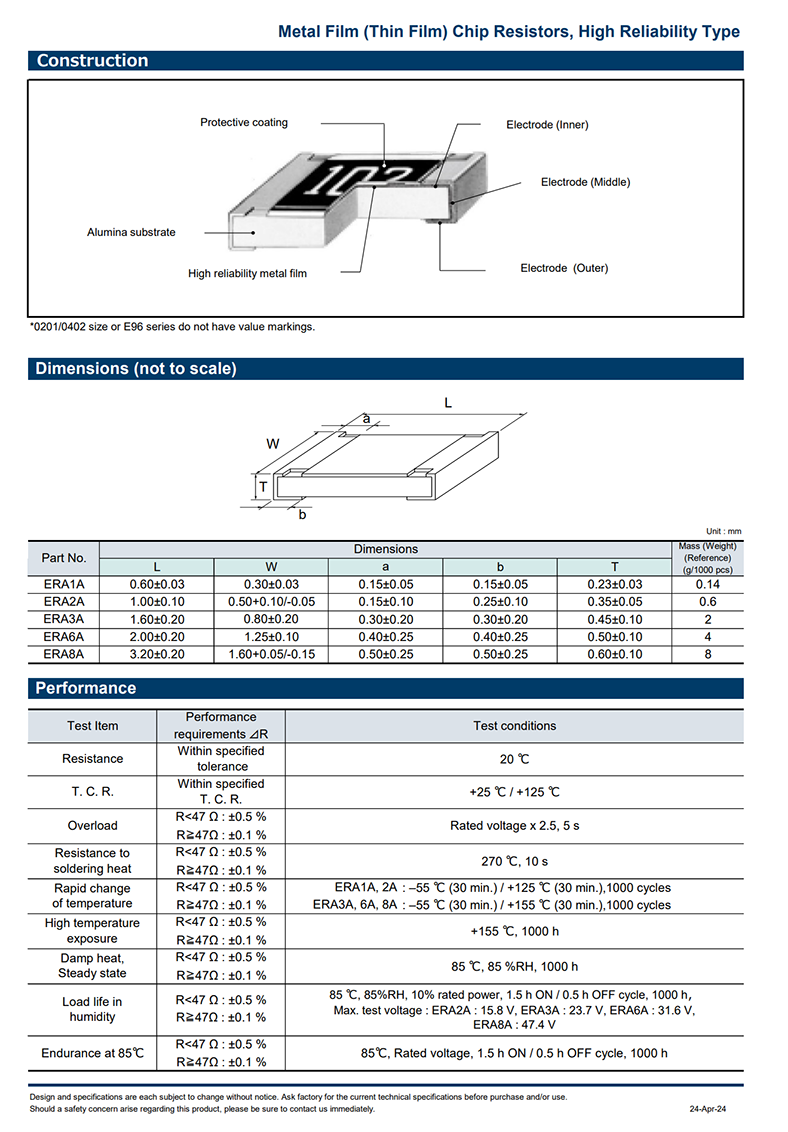

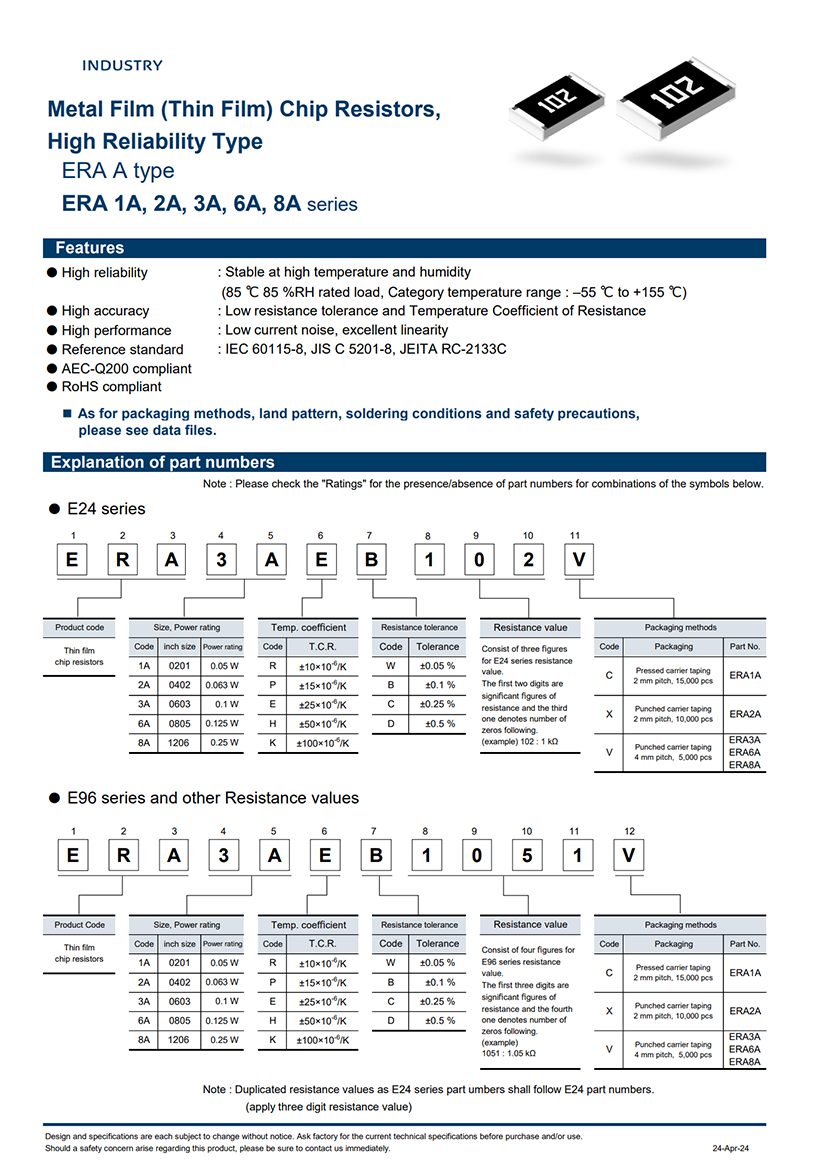

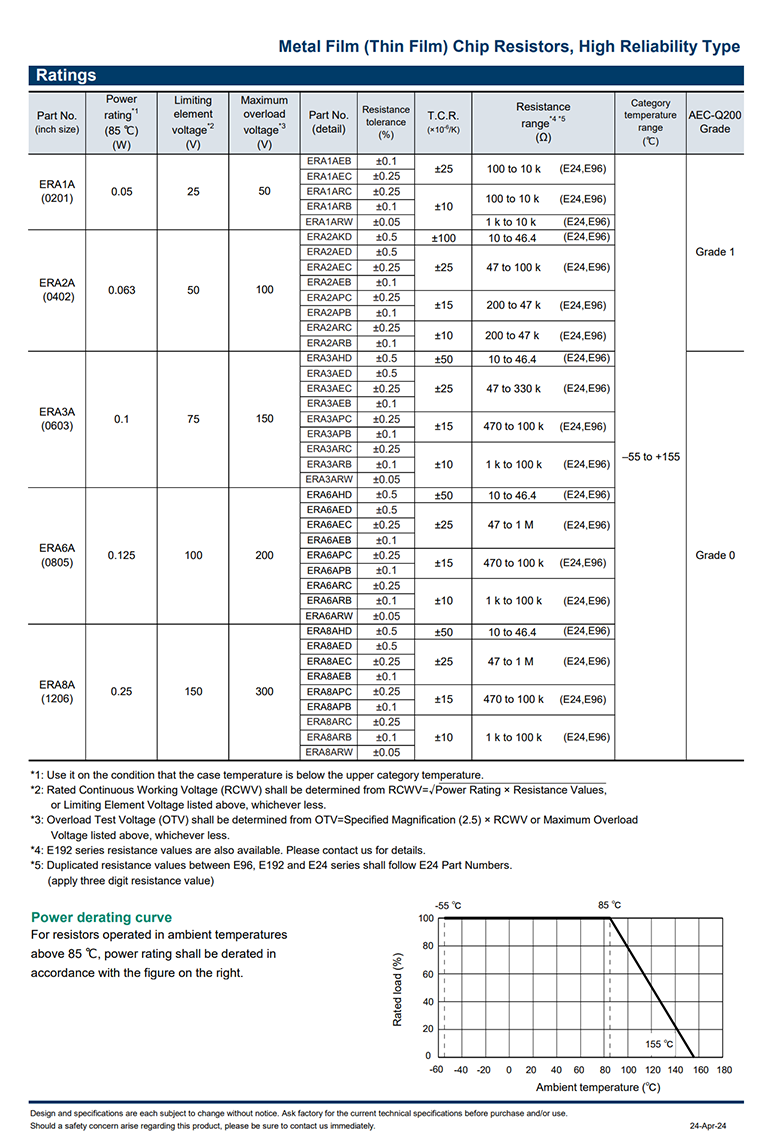

Product datasheet
For more information, please download
