Product Details
Description
This specification describes RC0603 series chip resistors with lead-free terminations made by thick film process.
Features
● RoHS compliant
- Products with lead free terminations meet RoHS requirements
- Pb-glass contained in electrodes, resistor element and glass are exempted by RoHS
● Reducing environmentally hazardous wastes
● High component and equipment reliability
● Saving of PCB space
● None forbidden-materials used in products/production
● Halogen Free Epoxy
Application
● All general purpose application
Product Description
Type | Description |
|---|---|
ANSC PART# | ANSC - RC0603FR-07100KL |
Category | Resistors Chip Resistor - Surface Mount |
Mfr | - |
Series | RC_L |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Resistance | 100 kOhms |
Tolerance | ±1% |
Power (Watts) | 0.1W, 1/10W |
Composition | Thick Film |
Features | Moisture Resistant |
Temperature Coefficient | ±100ppm/°C |
Operating Temperature | -55°C ~ 155°C |
Package / Case | 0603 (1608 Metric) |
Supplier Device Package | 0603 |
Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
Height - Seated (Max) | 0.022" (0.55mm) |
Number of Terminations | 2 |
Failure Rate | - |

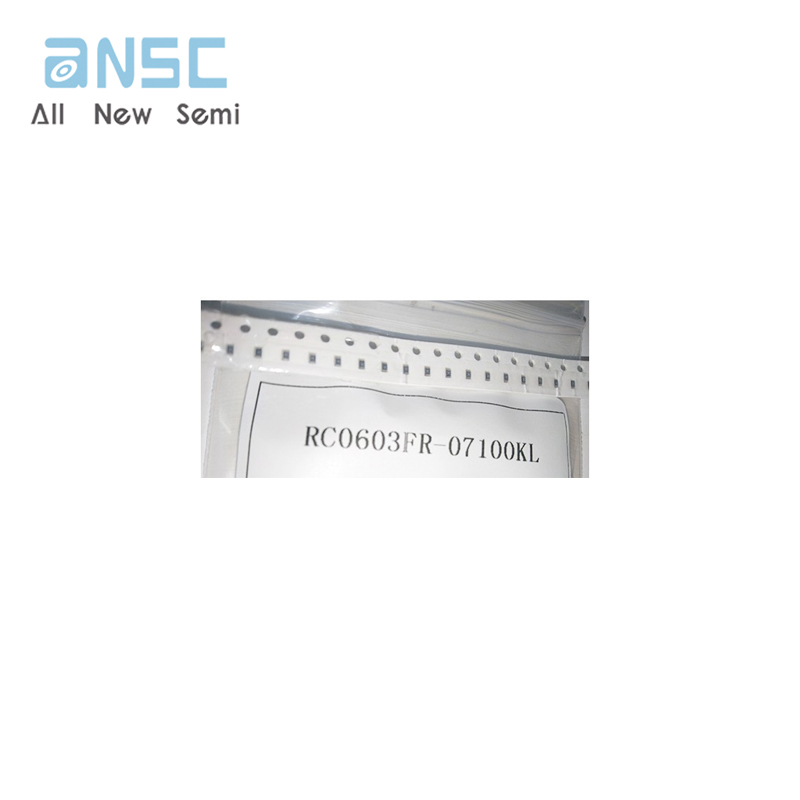

Actual image of the product

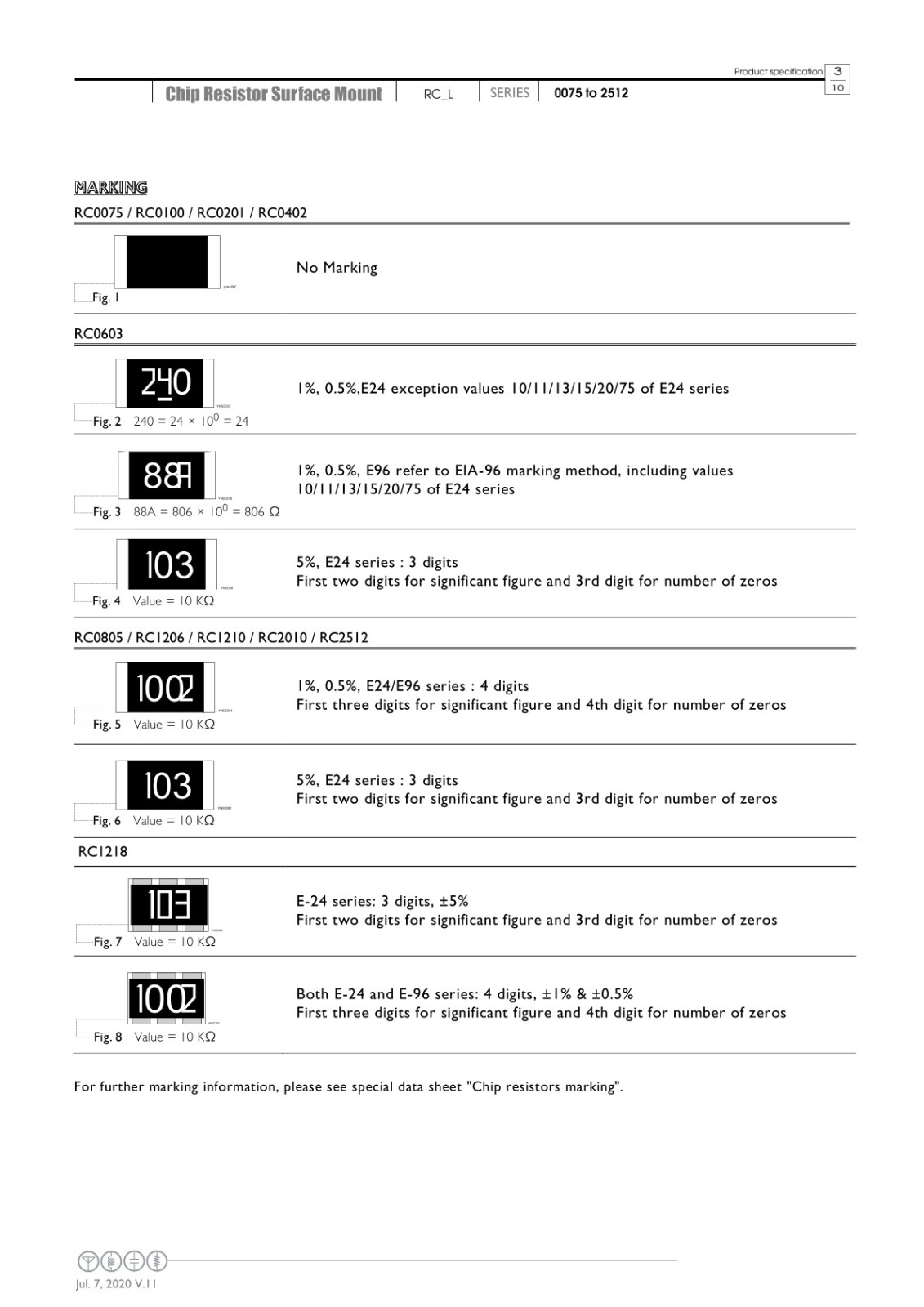

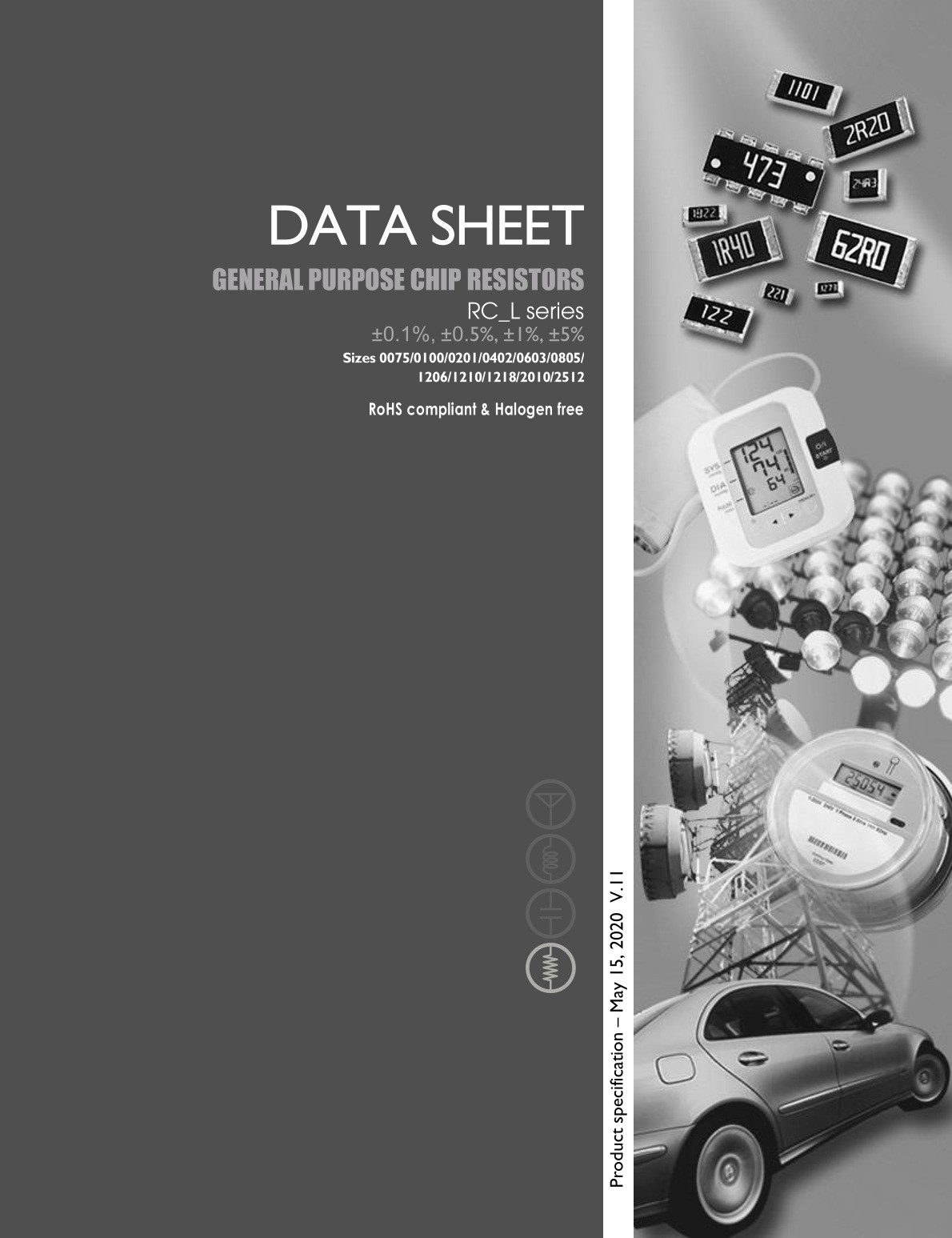

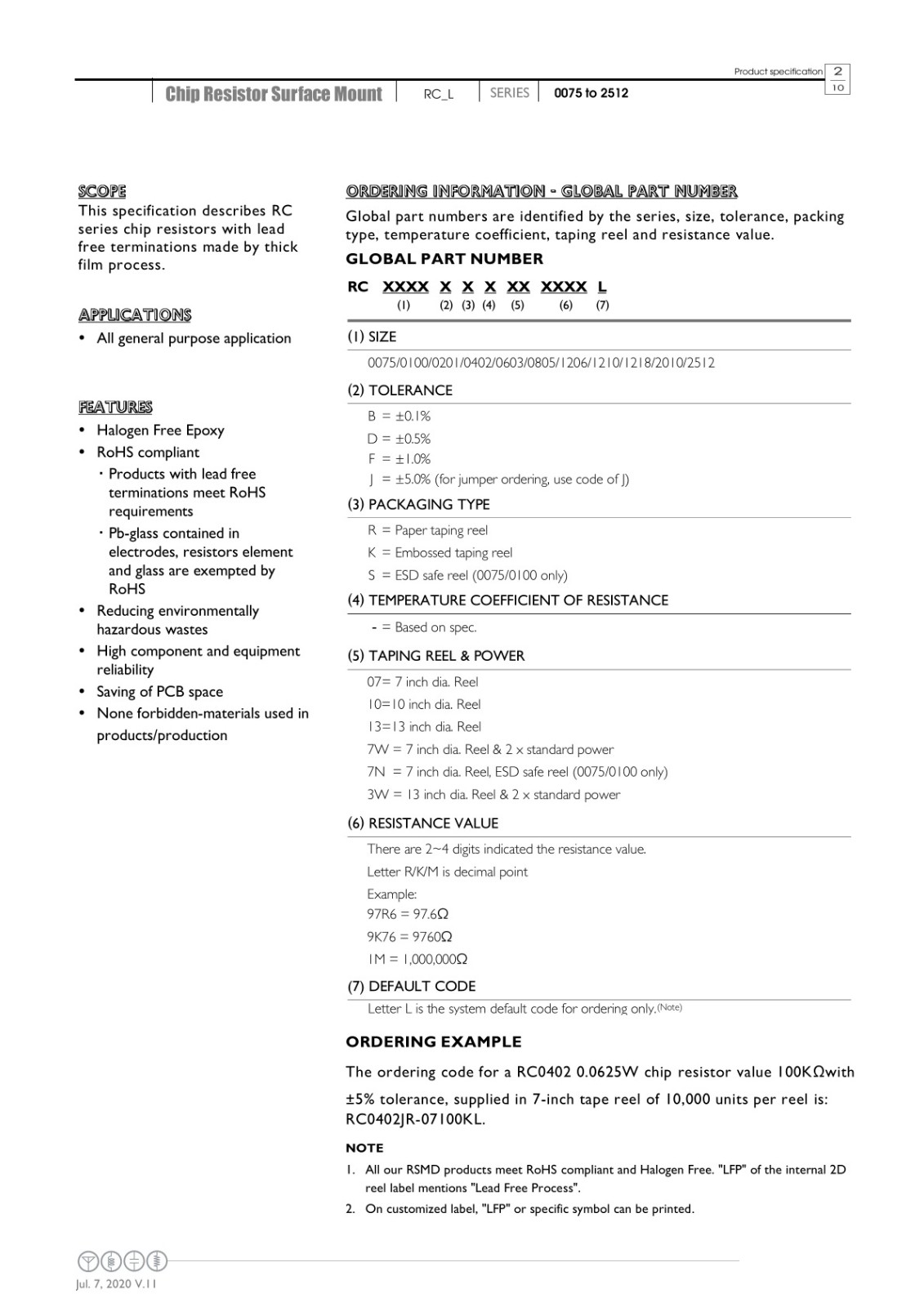

Product datasheet
For more information, please download
