Product Details
|
Transistor Technology (InGaP HBT) Broadband High Linearity Amplifier The MMG3003NT1 is a general purpose amplifier that is internally input matched and internally output prematched. It is designed for a broad range of Class A, small-signal, high linearity, general purpose applications. It is suitable for applications with frequencies from 40 to 3600 MHz such as cellular, PCS, BWA, WLL, PHS, CATV, VHF, UHF, UMTS and general small-signal RF. Features • Frequency: 40-3600 MHz • P1dB: 24 dBm @ 900 MHz • Small-Signal Gain: 20 dB @ 900 MHz • Third Order Output Intercept Point: 40.5 dBm @ 900 MHz • Single Voltage Supply • Internally Matched to 50 Ohms • Cost-effective SOT-89 Surface Mount Plastic Package • In Tape and Reel. T1 Suffix = 1,000 Units, 12 mm Tape Width, 7-inch Reel. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- 06035A151JAT2A |
| Ihs Manufacturer | Original |
| Part Package Code | 603 |
| Package Description | CHIP |
| Factory Lead Time | 12 Weeks |
| Samacsys Manufacturer | Original |
| Capacitance | 0.00015 µF |
| Capacitor Type | CERAMIC CAPACITOR |
| Dielectric Material | CERAMIC |
| Height | 0.9 mm |
| JESD-609 Code | e3 |
| Length | 1.6 mm |
| Mounting Feature | SURFACE MOUNT |
| Multilayer | Yes |
| Negative Tolerance | 5% |
| Number of Terminals | 2 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Package Shape | RECTANGULAR PACKAGE |
| Package Style | SMT |
| Packing Method | TR, PAPER, 7 INCH |
| Positive Tolerance | 5% |
| Rated (DC) Voltage (URdc) | 50 V |
| Size Code | 603 |
| Surface Mount | YES |
| Temperature Characteristics Code | C0G |
| Temperature Coefficient | 30ppm/Cel ppm/°C |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier |
| Terminal Shape | WRAPAROUND |
| Width | 0.81 mm |

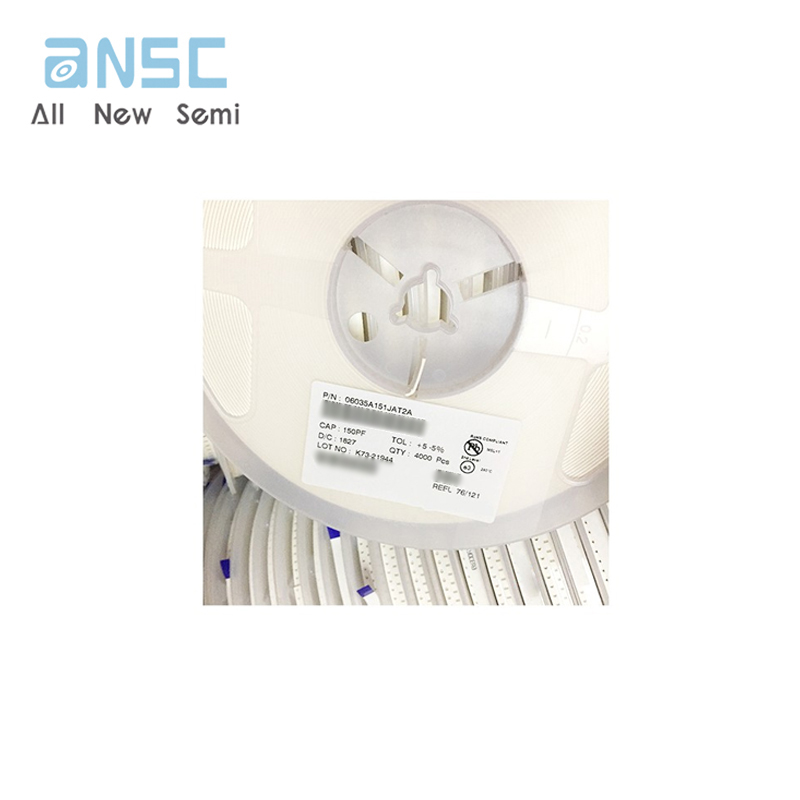

Actual image of the product

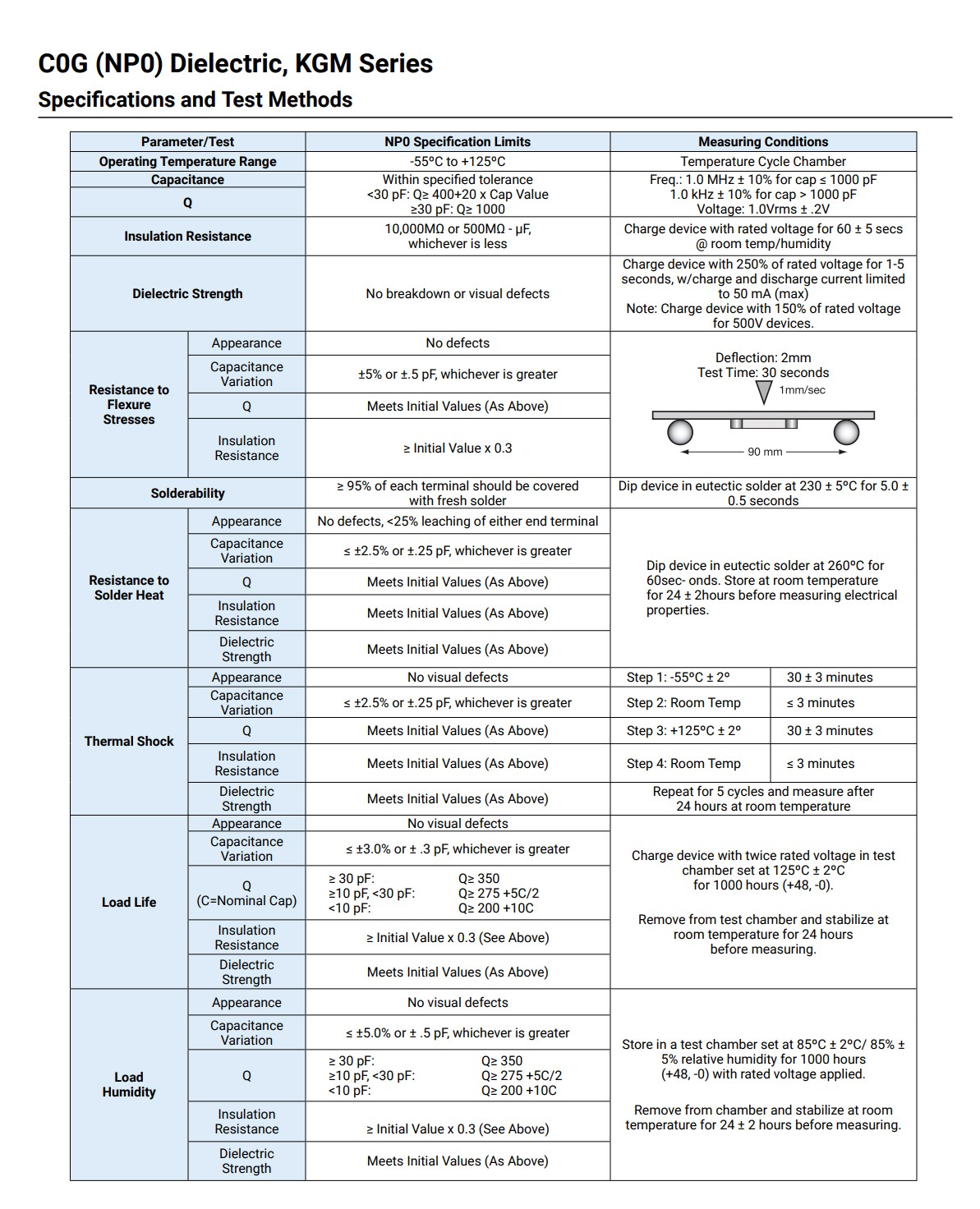

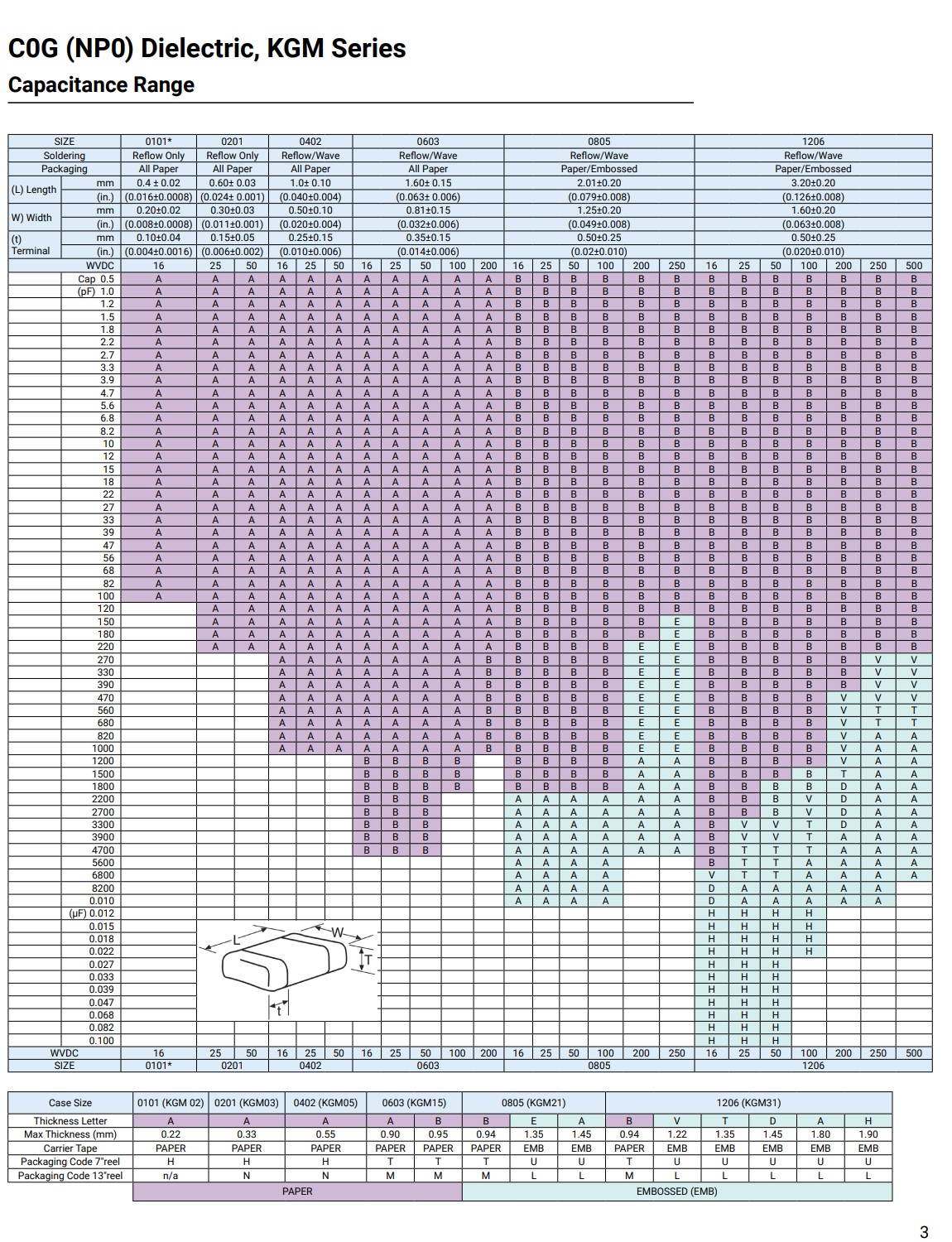

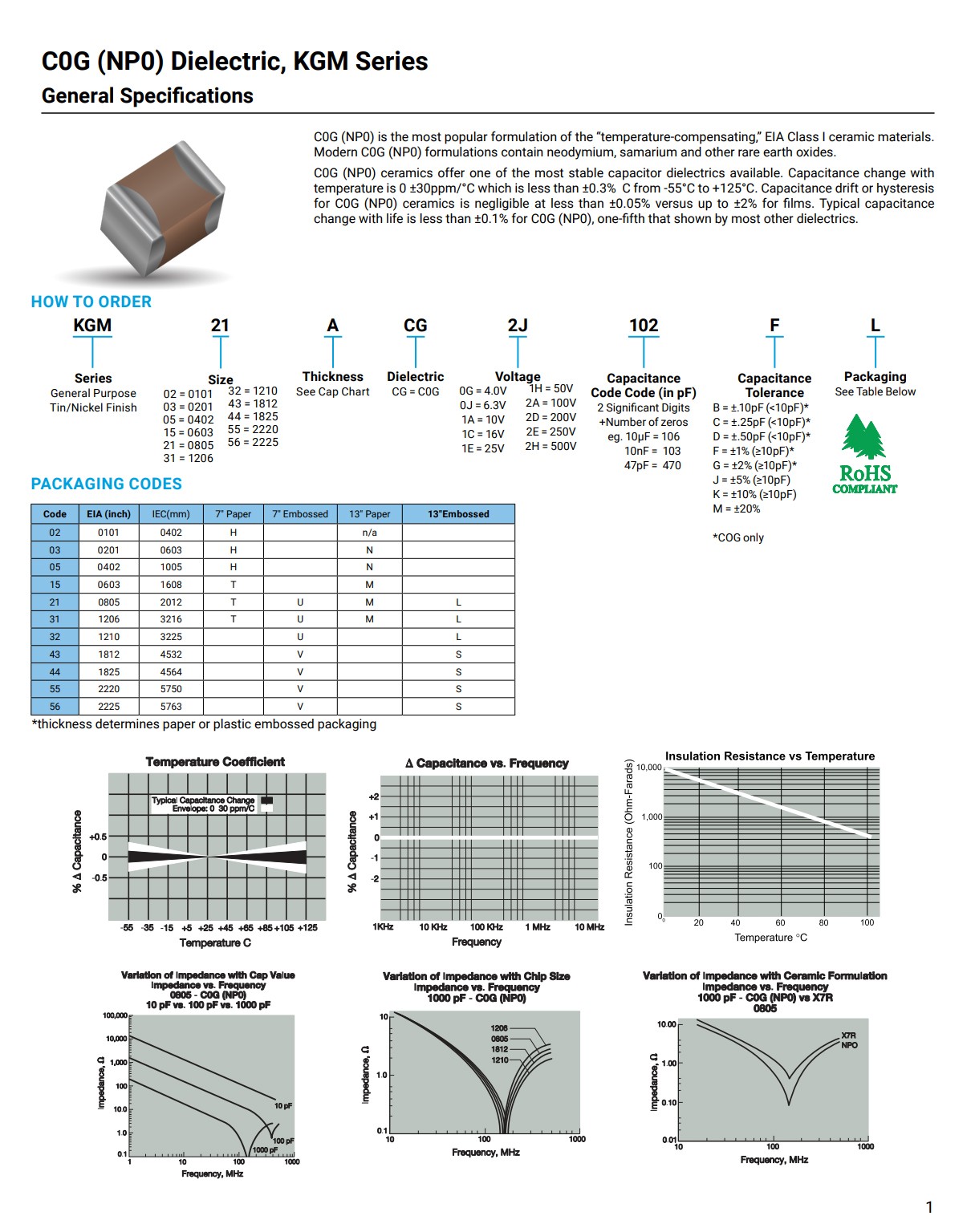

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
