Product Details
5.0V HCMOS Surface Mount Crystal Clock Oscillator
The Connor-Winfield models 6115, 6125, and 6135 are a 6 x 3.5mm, 5.0V HCMOS, Ceramic, Surface Mount,
Fixed Frequency Crystal Oscillators (XO) designed for use in all applictions requiring precision clocks.
The RoHS compliant, surface mount package is designed for high-density mounting and is optimum for mass production.
Features:
1.8 to 50 MHz
5.0V Operation
RoHS Compliant
Tri-State Enable / Disable Function
Overall Frequency Tolerance:
6115 ± 25 ppm
6125 ± 50 ppm
6135 ± 100 ppm
Temperature Range: 0 to 70°C
Ceramic Surface Mount Package
Tape and Reel Packaging
Product Description
| TYPE# | DESCRIPTION |

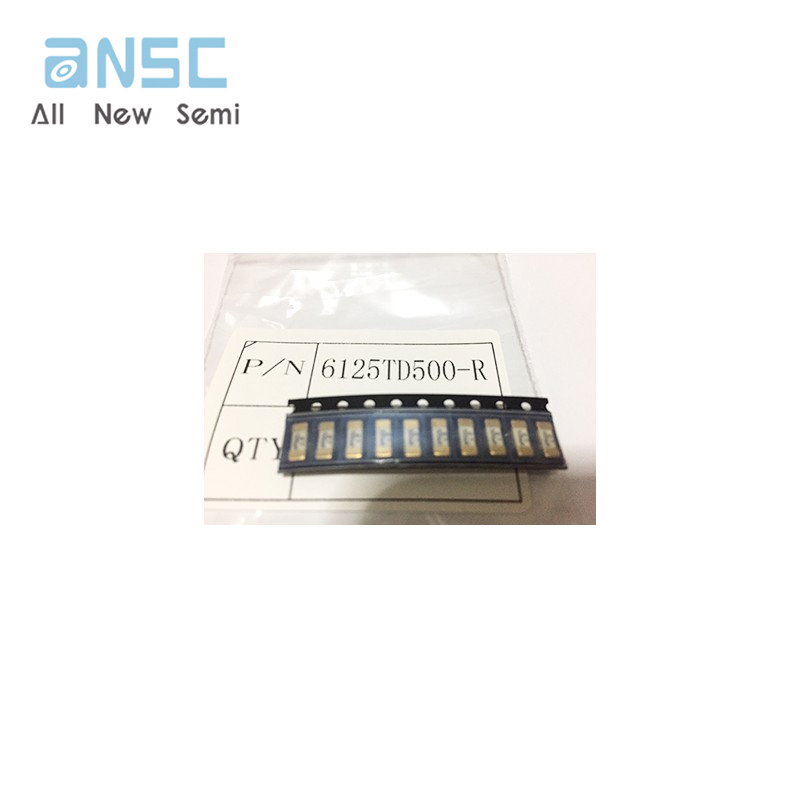

| ANSC PART# | ANSC- 6125TD500-R |
| Manufacturer | EATON |
| Blow Characteristic | TIME DELAY |
| Body Breadth | 2.72 mm |
| Body Height | 2.72 mm |
| Body Length or Diameter | 6.1 mm |
| Circuit Protection Type | ELECTRIC FUSE |
| Fuse Size | 2410 |
| Joule Integral-Nom | / |
| Mounting Feature | SURFACE MOUNT |
| Rated Breaking Capacity | 50 A |
| Rated Current | 0.5 A |
| Rated Voltage(AC) | 125 V |
| Rated Voltage(DC) | 60 V |
| Reference Standard | CSA; UL |
| Surface Mount | YES |
| Terminal Shape | WRAPAROUND |
| Trip Time or Delay | 1 s |
