Product Details
Description:
The FMM5059VF is a MMIC amplifier that contains a three-stage amplifier, internally matched, for standard communications in the 13.75 to 14.5GHz frequency range. This product is well suited for VSAT applications as it offers high power, high gain, and low VSWR. Sumitomo Electric's stringent Quality Assurance Program assures the highest reliability and consistent performance.
Features:
High Output Power: 35.0dBm (typ.)
High Linear Gain: 29.0dB (typ.)
Low Input VSWR
Broad Band: 13.75 to 14.5GHz
Impedance Matched Zin/Zout=50Ω
Small Hermetic Metal-Ceramic Package(VF-pkg)
Product Description
ANSC PART# | ANSC- FMM5059VF |
Part# | FMM5059VF |
Type： | - |
Manufactor | Original |
DC | new |

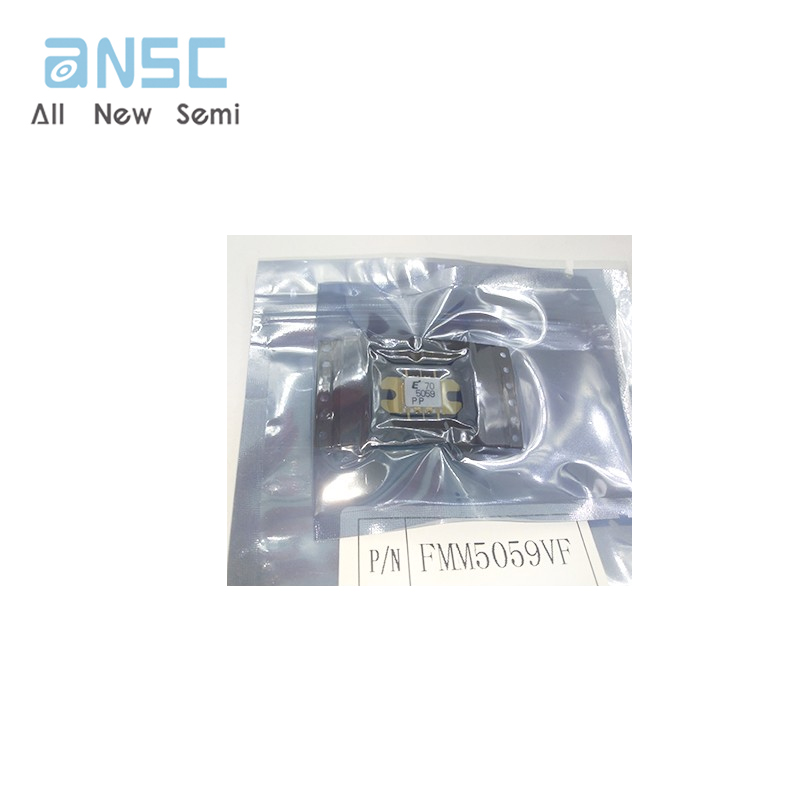

Actual image of the product
| Product Details | |
| Part Number | FMM5059VF |
| Manufacturer | Sumitomo Electric Device Innovations |
| Description | 13.75 to 14.5 GHz, C Band, Ka Band, Ku Band, Power Amplifier MMIC |
| General Parameters | |
| Type | Power Amplifier |
| Configuration | IC/MMIC/SMT |
| Application | Radio |
| Standards Supported | C Band, Ka Band, Ku Band |
| Industry Application | Broadcast |
| Frequency | 13.75 to 14.5 GHz |
| Gain | 29 dB |
| Power Gain | 26 to 28 dB |
| Gain Flatness | ±1.5 to 2 dB |
| Output Power | 34 to 35 dBm |
| Output Power | 2.51 to 3.16 W |
| P1dB | 34 to 35 dBm |
| P1dB | 2.511 to 3.16 W |
| IM3 | -29 to -26 dBc |
| IP3 | 40 dBm |
| IP3 | 10 W |
| Input Power | 26 dBm |
| Input Power | 0.39 W |
| Impedance | 50 Ohms |
| Pulsed/CW | CW |
| Input Return Loss | -10 to -6 dB |
| Output Return Loss | -14 to -8 dB |
| Supply Voltage | 7 V |
| Current Consumption | 1300 mA |
| Package Type | Surface Mount, Ceramic, Hermetic |
| Operating Temperature | -40 to 85 Degree C |
| Storage Temperature | -55 to 125 Degree C |
| Technical Documents | |
| Datasheet | |

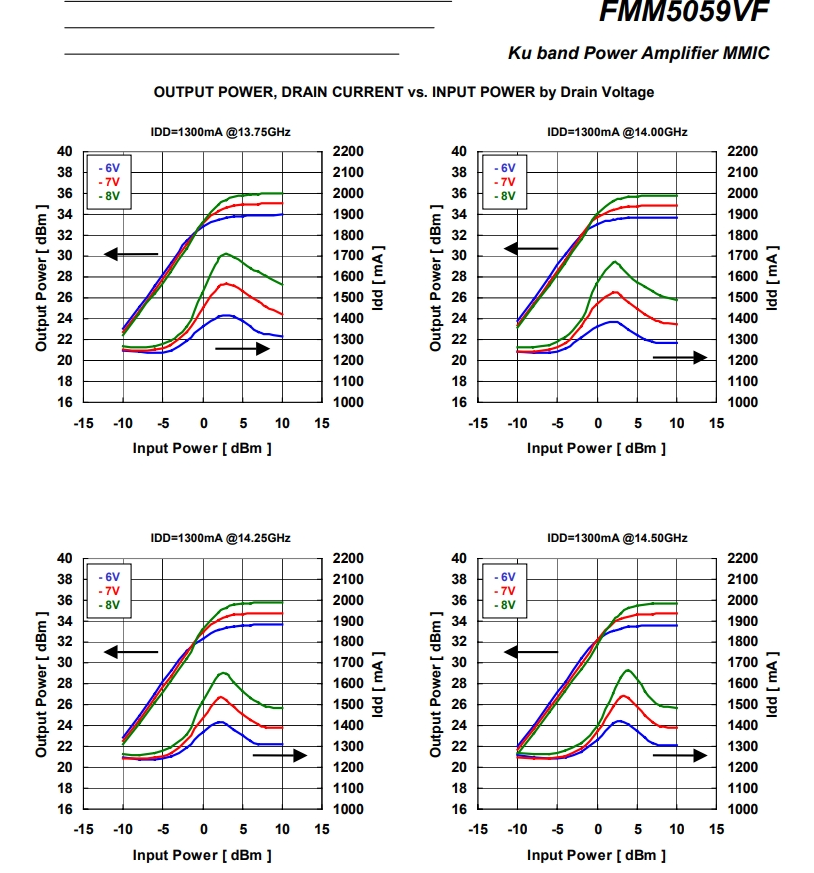

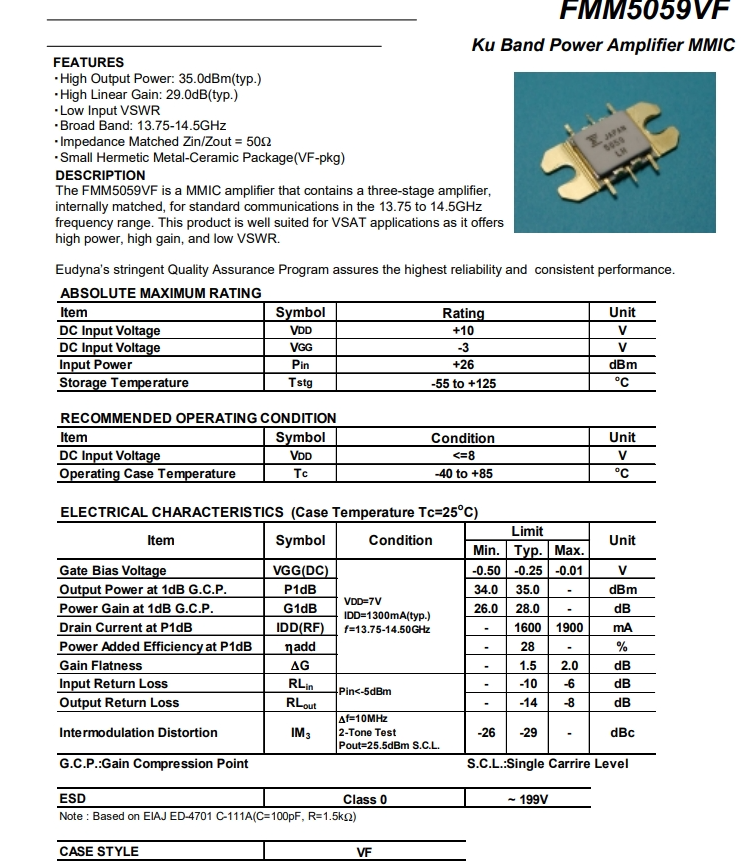

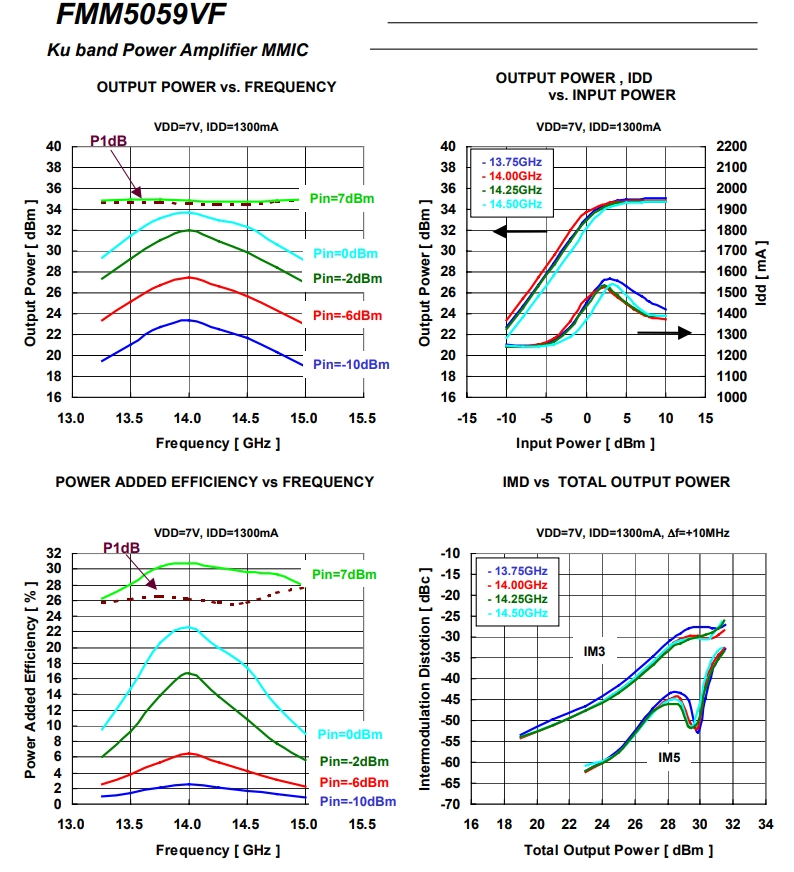

Product datasheet
