Hot sale original PMLL4150 DIODE 0.3 A 75V SILICON SIGNAL DIODE HERMETIC SEALED GLASS SMD 2 PIN Signal Diode_Electronic components & Bom

Product Details

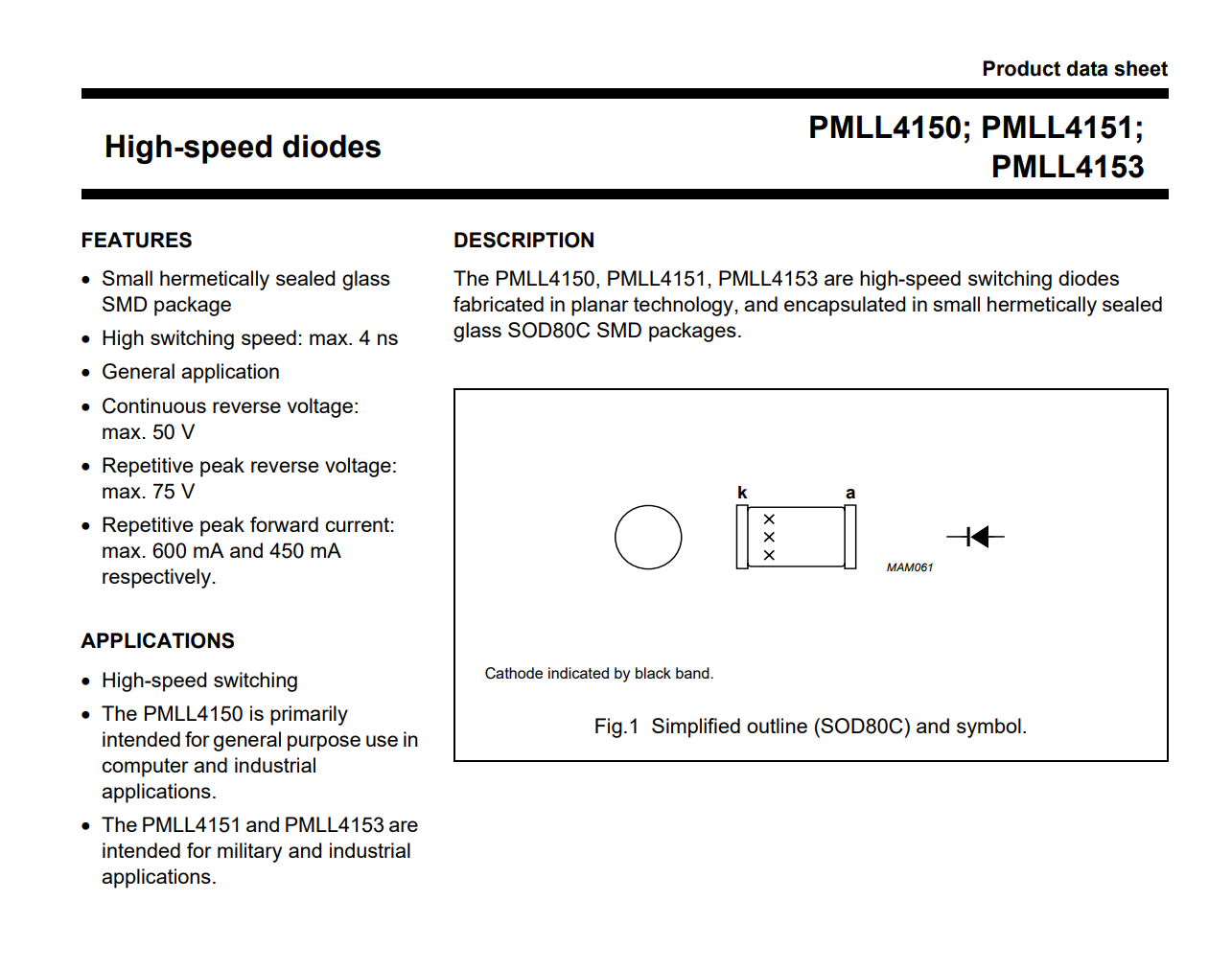

DESCRIPTION

The PMLL4150, PMLL4151, PMLL4153 are high-speed switching diodes fabricated in planar technology,

and encapsulated in small hermetically sealed glass SOD80C SMD packages.

FEATURES

• Small hermetically sealed glass SMD package

• High switching speed: max. 4 ns

• General application

• Continuous reverse voltage: max. 50 V

• Repetitive peak reverse voltage: max. 75 V

• Repetitive peak forward current: max. 600 mA and 450 mA respectively.

APPLICATIONS

• High-speed switching

• The PMLL4150 is primarily intended for general purpose use in computer and industrial applications.

• The PMLL4151 and PMLL4153 are intended for military and industrial applications.

Product Description

TYPE#	DESCRIPTION
ANSC PART#	ANSC- PMLL4150
Manufacturer	/
Package Description	HERMETIC SEALED, GLASS, SMD, 2 PIN
Pin Count	2
Additional Feature	HIGH SPEED SWITCH
Application	GENERAL PURPOSE
Case Connection	ISOLATED
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	RECTIFIER DIODE
Forward Voltage-Max (VF)	1 V
Non-rep Pk Forward Current-Max	4 A
Number of Elements	1
Number of Phases	1
Number of Terminals	2
Operating Temperature-Max	200 °C
Output Current-Max	0.3 A
Package Body Material	GLASS
Package Shape	ROUND
Package Style	LONG FORM
Power Dissipation-Max	0.5 W
Qualification Status	Not Qualified
Rep Pk Reverse Voltage-Max	75 V
Reverse Current-Max	0.1 µA
Reverse Recovery Time-Max	0.006 µs
Surface Mount	YES
Terminal Form	WRAP AROUND
Terminal Position	END

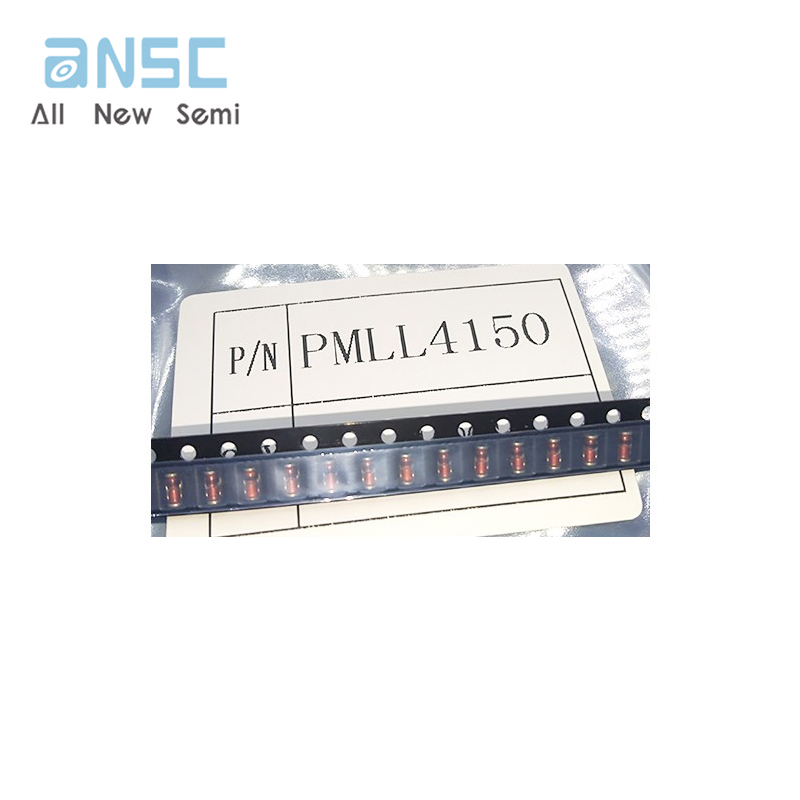

PMLL4150
