Product Details
| Introduction This evaluation board serves as an aid in evaluating circuit protection on RS-485 serial device port solutions using ® TBU® High-Speed Protector (HSP), MOV and TVS products to meet the required industry standards on RS-485 port interfaces. The recommended ® TBU® HSP solution offers enhanced performance features over competing technologies, which can help the design engineer to increase the surge & transient protection level on RS-485 ports and place the entire circuit protection solution into a smaller PCB area. Bourns has developed a RS-485 evaluation board (measuring 50 mm x 25 mm x 1.2 mm) manufactured using FR4 PCB with nickel gold plating on top and bottom sides. Evaluation Board for Test Set-up • Connect J1 and J2 to the exposed lines. • Connect J3 and J4 to the RS-485 IC device. |
Product Description
| Type | Description |
| ANSC PART# | ANSC- CDSOD323-T03C |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 3.3V |
| Voltage - Breakdown (Min) | 4V |
| Voltage - Clamping (Max) @ Ipp | 19V (Typ) |
| Current - Peak Pulse (10/1000µs) | 20A (8/20µs) |
| Power - Peak Pulse | 350W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 3pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Base Product Number | CDSOD323 |

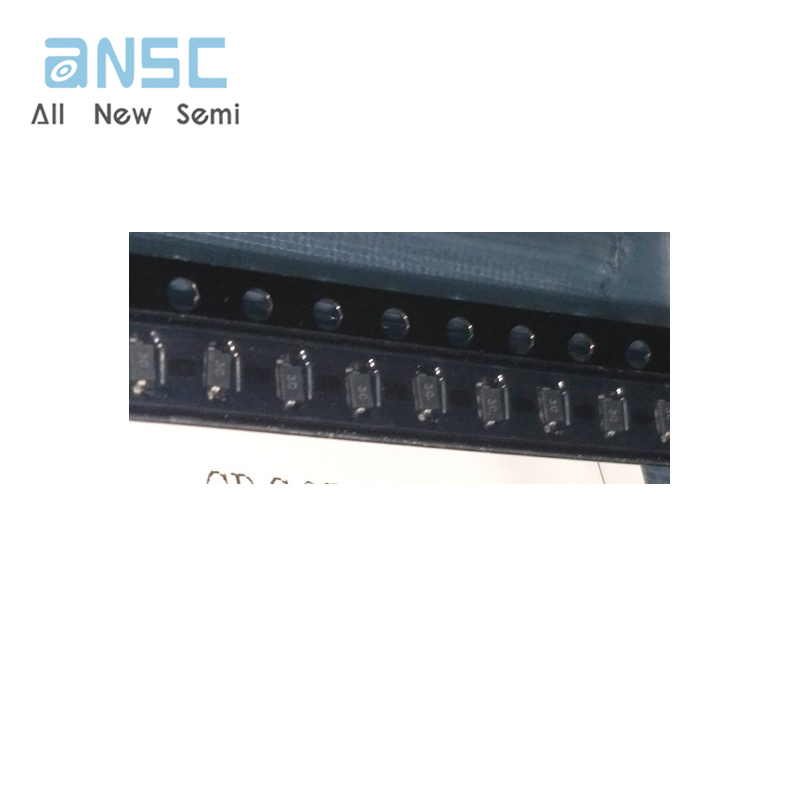

Actual image of the product

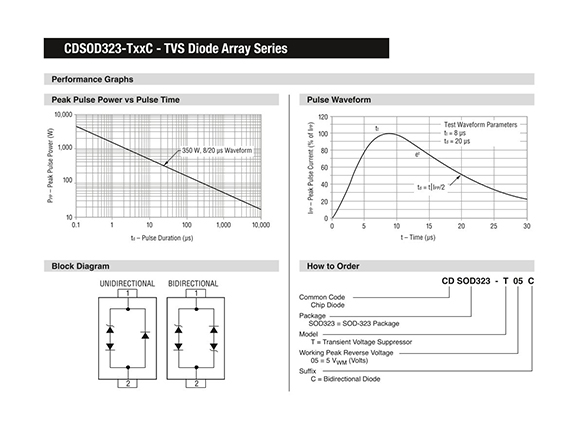

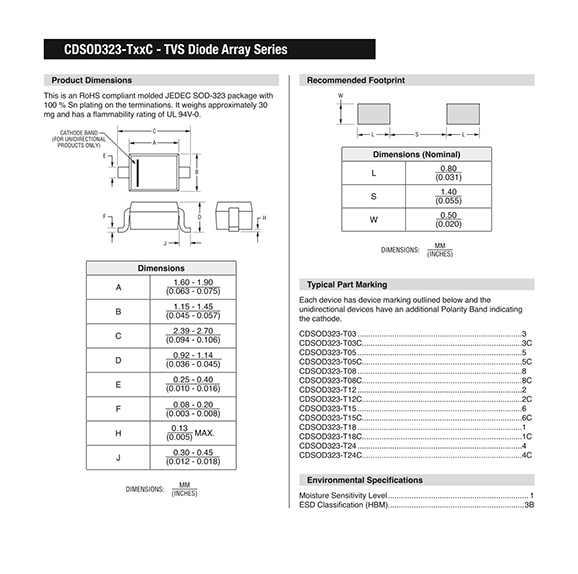

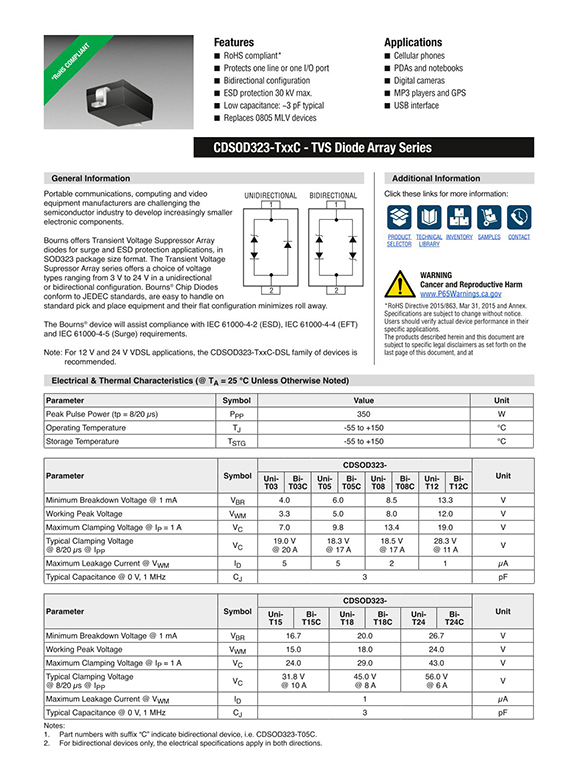

Product datasheet
For more information, please download
