Product Details
Features
Dual marked with device part number and DLA Standard
Microcircuit Drawing (SMD)
Manufactured and tested on a MIL-PRF-38534 Certified
Line
QML-38534, Class H and K
Five hermetically sealed package configurations
Performance guaranteed over full military temperature
range: –55°C to +125°C
Low input current requirement: 0.5 mA
High current transfer ratio: 1500% typical at IF = 0.5 mA
Low output saturation voltage: 0.11V typical
1500 Vdc withstand test voltage
High radiation immunity
6N138/9, HCPL-2730/31 function compatibility
Reliability data
Applications
Military and aerospace
High reliability systems
Microprocessor system interface
Transportation, medical, and life critical systems
Isolated input line receiver
EIA RS-232-C line receiver
Voltage level shifting
Isolated input line receiver
Isolated output line driver
Logic ground isolation
Harsh industrial environments
Current loop receiver
System test equipment isolation
Process control input/output isolation
Product Description
ANSC PART# | ANSC- 6N140A |
Part# | 6N140A |
Type： | Electronic components |
Manufactor | Original |
DC | new |

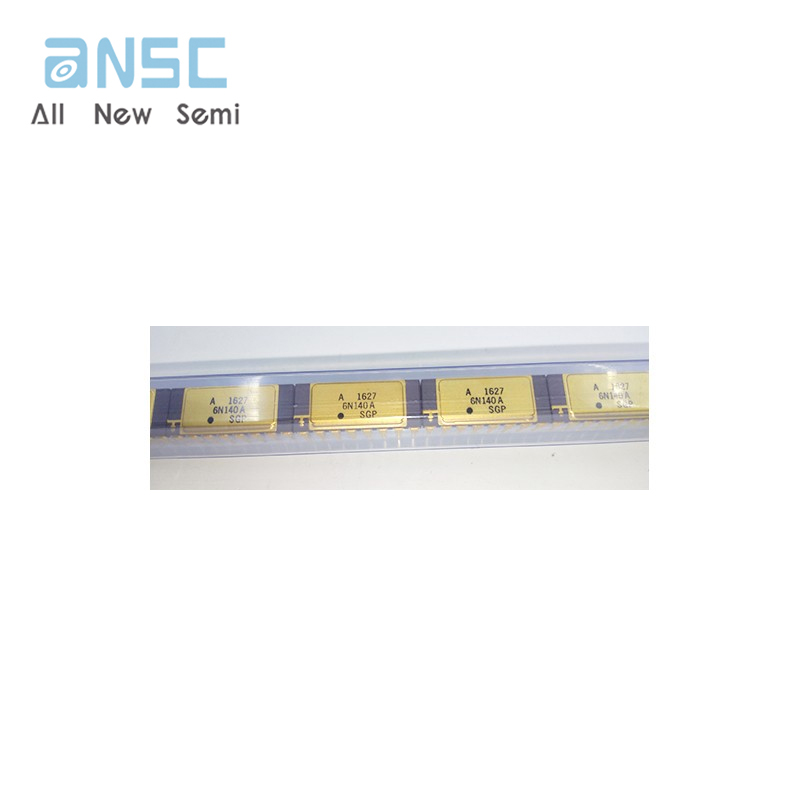

Actual image of the product
TYPE | DESCRIPTION |
|---|---|
Category | Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators |
Manufacturer | Broadcom Limited |
Series | - |
Packaging | Tube |
Part Status | Active |
Number of Channels | 4 |
Voltage - Isolation | 1500VDC |
Current Transfer Ratio (Min) | 200% @ 5mA |
Current Transfer Ratio (Max) | - |
Turn On / Turn Off Time (Typ) | 2µs, 8µs |
Rise / Fall Time (Typ) | - |
Input Type | DC |
Output Type | Darlington |
Voltage - Output (Max) | 20V |
Current - Output / Channel | 40mA |
Voltage - Forward (Vf) (Typ) | 1.4V |
Current - DC Forward (If) (Max) | 10 mA |
Vce Saturation (Max) | 110mV |
Operating Temperature | -55°C ~ 125°C |
Mounting Type | Through Hole |
Package / Case | 16-DIP (0.300", 7.62mm) |
Supplier Device Package | 16-DIP |
Base Product Number | 6N140 |

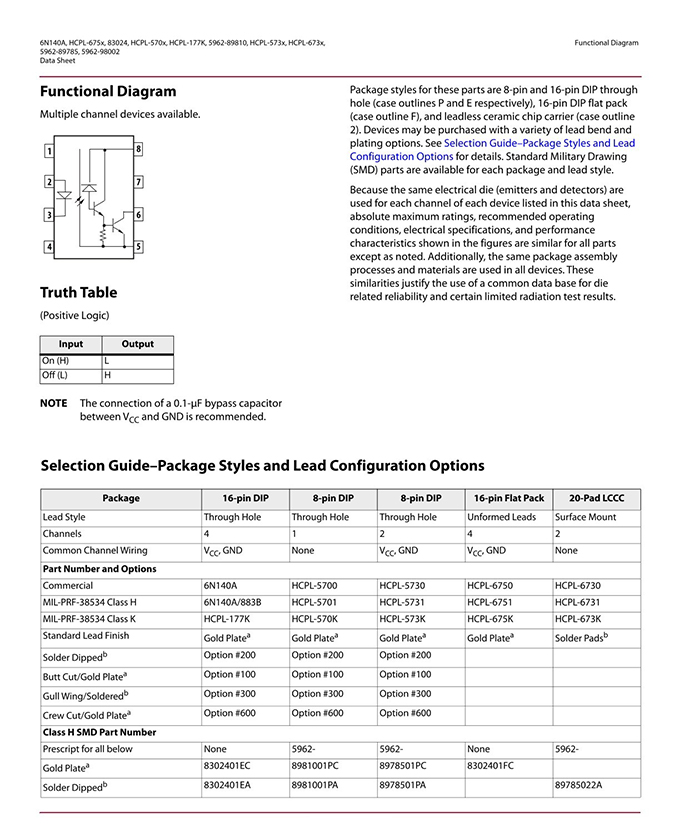

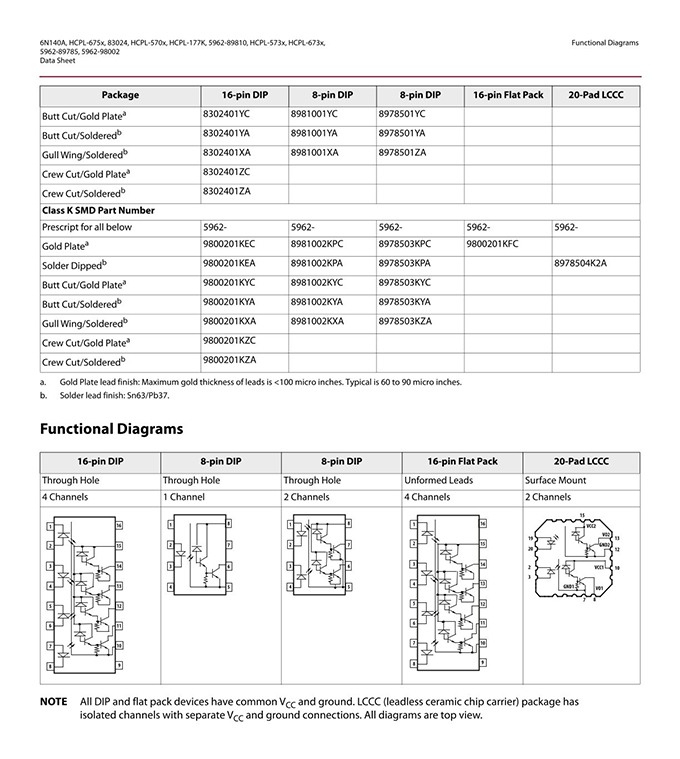

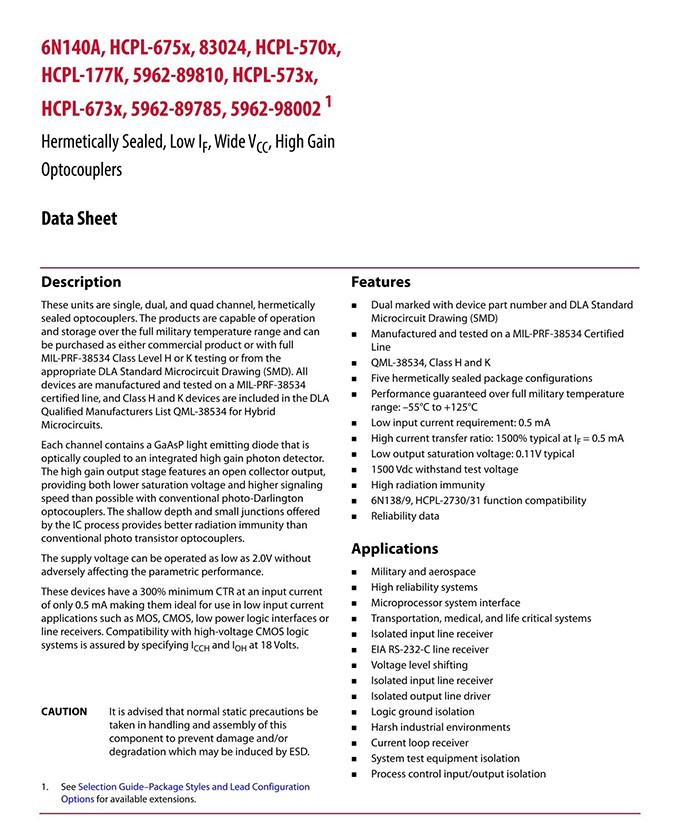

Product datasheet
