Product Details
| New OptiMOS™ 40V and 60V Shrink Your Design and Boost Efficiency New OptiMOS™ 40V and 60V, Infineon’s latest generation of power MOSFETs, is optimized for Synchronous Rectification in switched mode power supplies (SMPS) such as those found in servers and desktops. In addition these devices are a perfect choice for a broad range of industrial applications including motor control, solar micro inverter and fast switching DC/DC converter. Features ■ Optimized for Synchronous Rectification ■ 35% lower RDS(on) than alternative devices ■ 45% improvement of FOM over similar devices ■ Integrated Schottky-like diode ■ RoHS compliant - halogen free ■ MSL1 rated Benefits ■ Highest system efficiency ■ Less paralleling required ■ Increased power density ■ System cost reduction ■ Very low voltage overshoot Applications ■ Synchronous Rectification ■ Solar micro inverter ■ Isolated DC/DC converters ■ Motor control for 12-48V systems ■ Or-ing switches |
Product Description
| Type# | Description |
| ANSC PART# | ANSC -IPB010N06NATMA1 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | / |
| Series | OptiMOS™ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 45A (Ta), 180A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 1mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 280µA |
| Gate Charge (Qg) (Max) @ Vgs | 208 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 15000 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 300W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TO263-7 |
| Package / Case | TO-263-7, D2PAK (6 Leads + Tab) |
| Base Product Number | IPB010 |

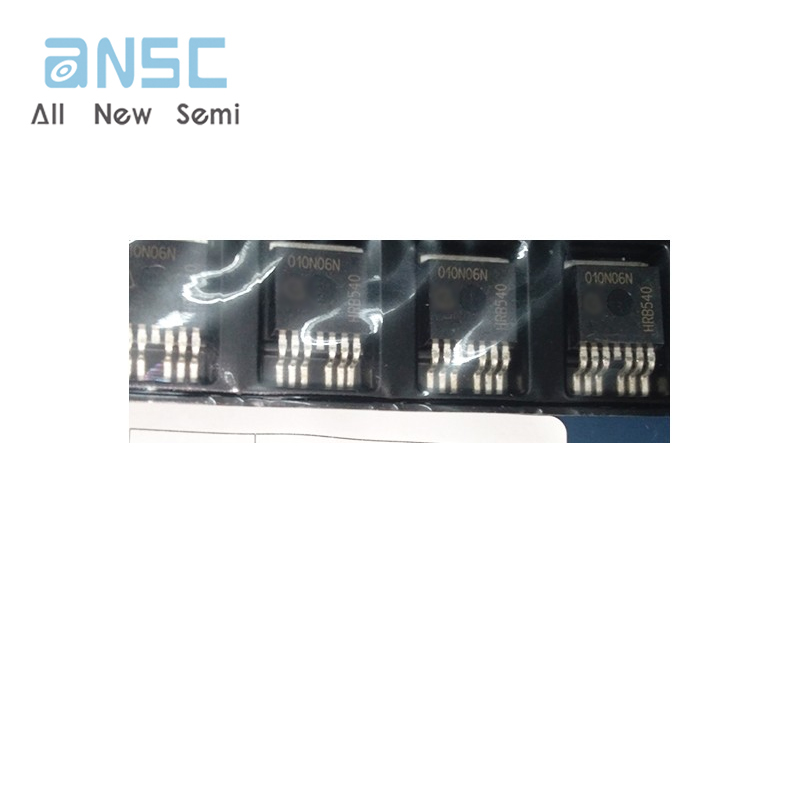

Actual image of the product

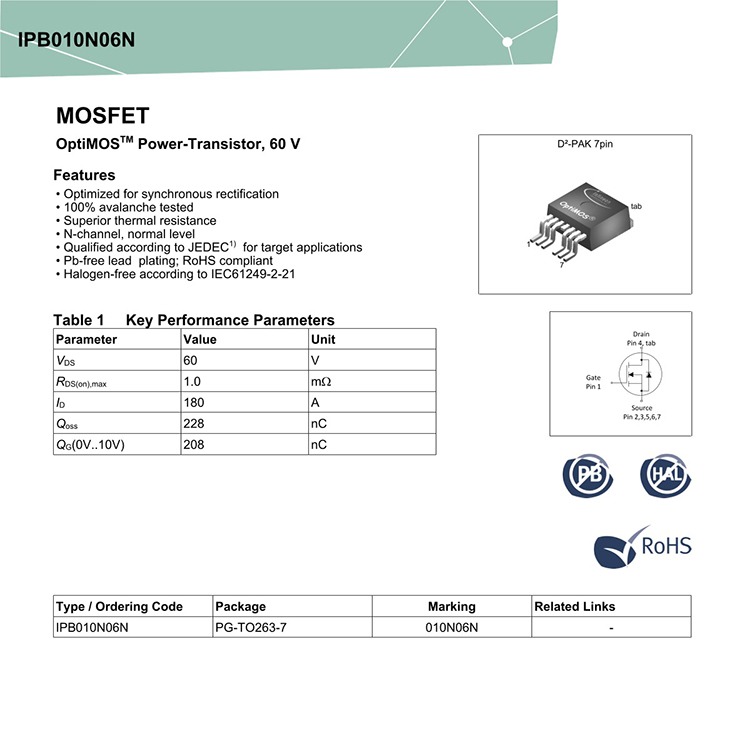

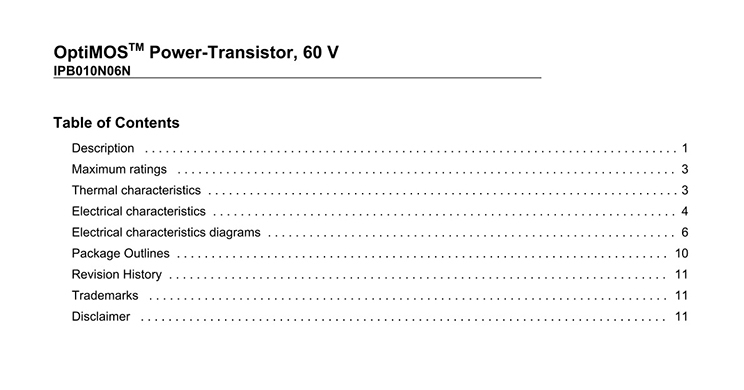

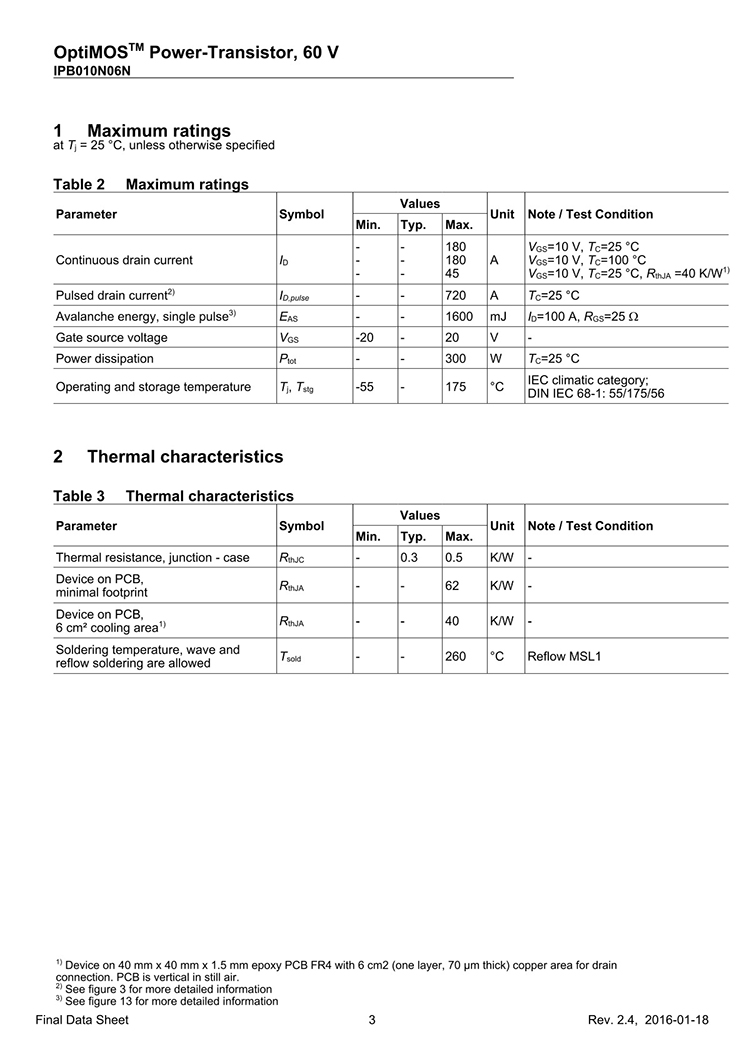

Product datasheet
For more information, please download
