Product Details

General Description

The DSC1001 is a silicon MEMS based CMOS oscillator offering excellent jitter and stability performance over a wide range of supply voltages and temperatures. The device operates from 1 to 150MHz with supply voltages between 1.8 to 3.3 Volts and temperature ranges up to -40ºC to 105ºC.

Features

● Frequency Range: 1 to 150MHz

● Exceptional Stability over Temperature

o ±10 PPM, ±25 PPM, ±50 PPM

● Operating voltage

o 1.7 to 3.6V

● Operating Temperature Range

o Ext. Industrial -40ºC to 105ºC

o Industrial -40ºC to 85ºC

o Ext. Commercial -20ºC to 70ºC

o Commercial 0ºC to 70ºC

● Low Operating and Standby Current

o 5mA Operating (40MHz)

o 15uA Standby

● Ultra Miniature Footprint

o 2.5 x 2.0 x 0.85 mm

o 3.2 x 2.5 x 0.85 mm

o 5.0 x 3.2 x 0.85 mm

o 7.0 x 5.0 x 0.85 mm

● MIL-STD 883 Shock and Vibration

Resistant

● Pb Free, RoHS, Reach SVHC Compliant

● AEC-Q100 Reliability Qualified

Benefits

● Pin for pin “drop in” replacement for industry standard oscillators

● Semiconductor level reliability, significantly higher than quartz

● Short mass production lead-times

● Longer Battery Life / Reduced Power

● Compact Plastic package

● Cost Effective

Applications

● Mobile Applications

● Consumer Electronics

● Portable Electronics

● DVR, CCTV, Surveillance Cameras

● Low Profile Applications

● Industrial Applications

Product Description

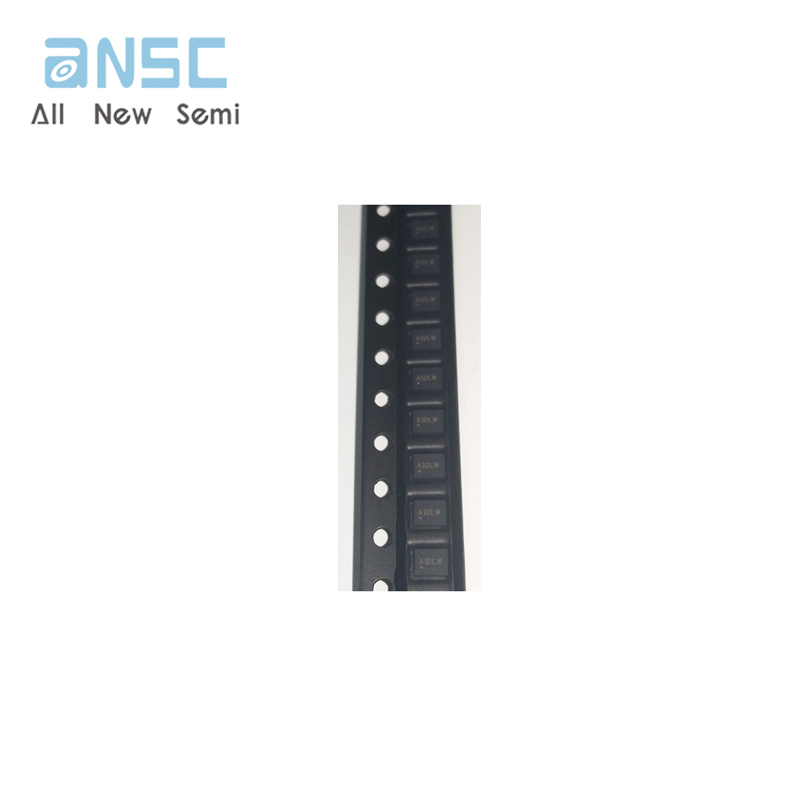

Product Photos

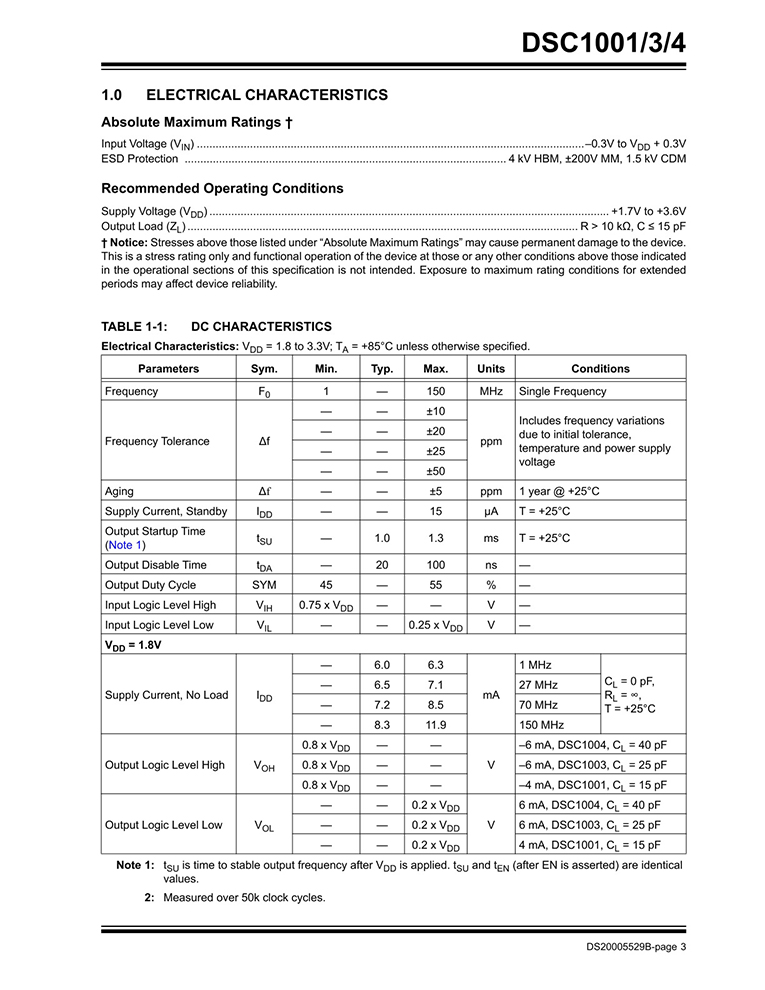

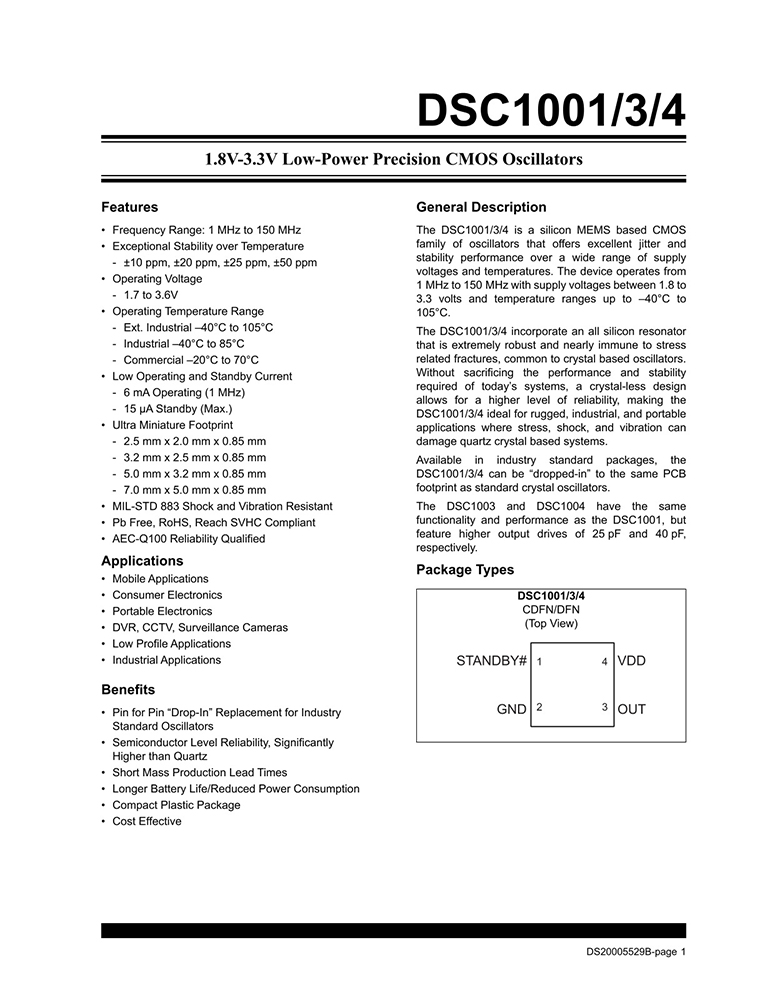

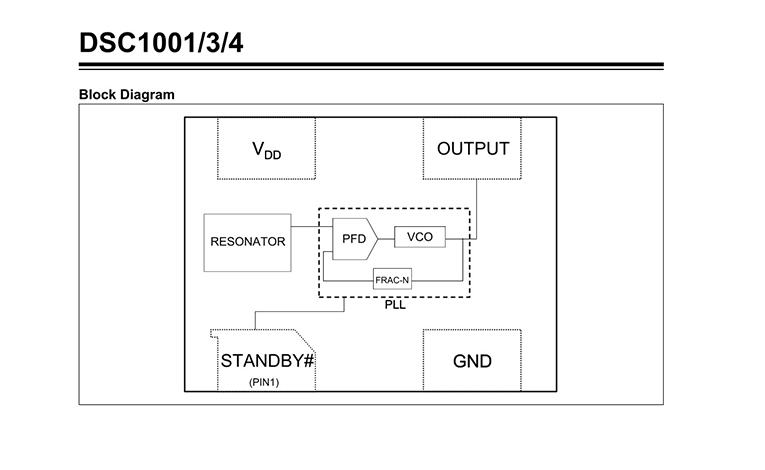

Product datasheet

For more information, please download
