Product Details

1. Description

The 744053180 is a high-performance, shielded, wirewound fixed inductor designed for surface mount applications. This inductor features a ferrite core and is part of the WE-TPC series, known for its reliability and efficiency. With a self-resonant frequency of 20 MHz, it is suitable for a wide range of applications requiring stable inductive performance across various frequencies.

2. Features

• Current Rating: The inductor can handle a maximum current of 1.25A, ensuring it can support high-power circuits without saturating.

• DC Resistance: The maximum DC resistance is 110mOhm, making it suitable for applications where low resistance is crucial.

• Inductance: With an inductance value of 18μH, this inductor provides a stable and consistent inductive response.

• Inductance Tolerance: The inductance tolerance is ±30%, which allows for some variation in inductive value but ensures consistent performance within the specified range.

• Operating Temperature: The operating temperature range is from -40°C to 125°C, making it suitable for use in various environmental conditions.

• Mounting Type: Designed for surface mount applications, this inductor is easy to integrate into PCBs.

• Shielding: The shielded design helps reduce electromagnetic interference (EMI), making it ideal for noise-sensitive applications.

• RoHS Compliance: Compliant with ROHS3 standards, ensuring environmental sustainability.

3. Applications

Primary Applications:

1. Power Supplies: Ideal for use in power supply filters where high current handling and low DC resistance are essential.

2. Audio Equipment: Suitable for audio circuits requiring stable inductive performance across various frequencies.

3. Industrial Control Systems: Used in industrial control systems where reliability and efficiency are critical.

Secondary Applications:

1. Medical Devices: Can be used in medical devices requiring stable inductive components.

2. Automotive Electronics: Suitable for automotive electronics due to its high temperature range and reliability.

Product Description

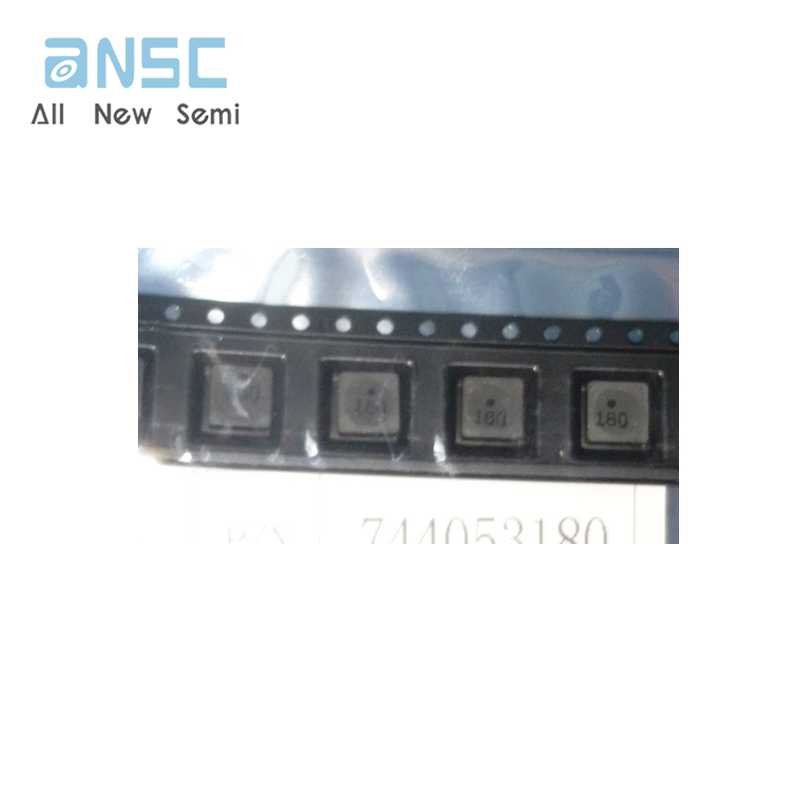

Actual image of the product

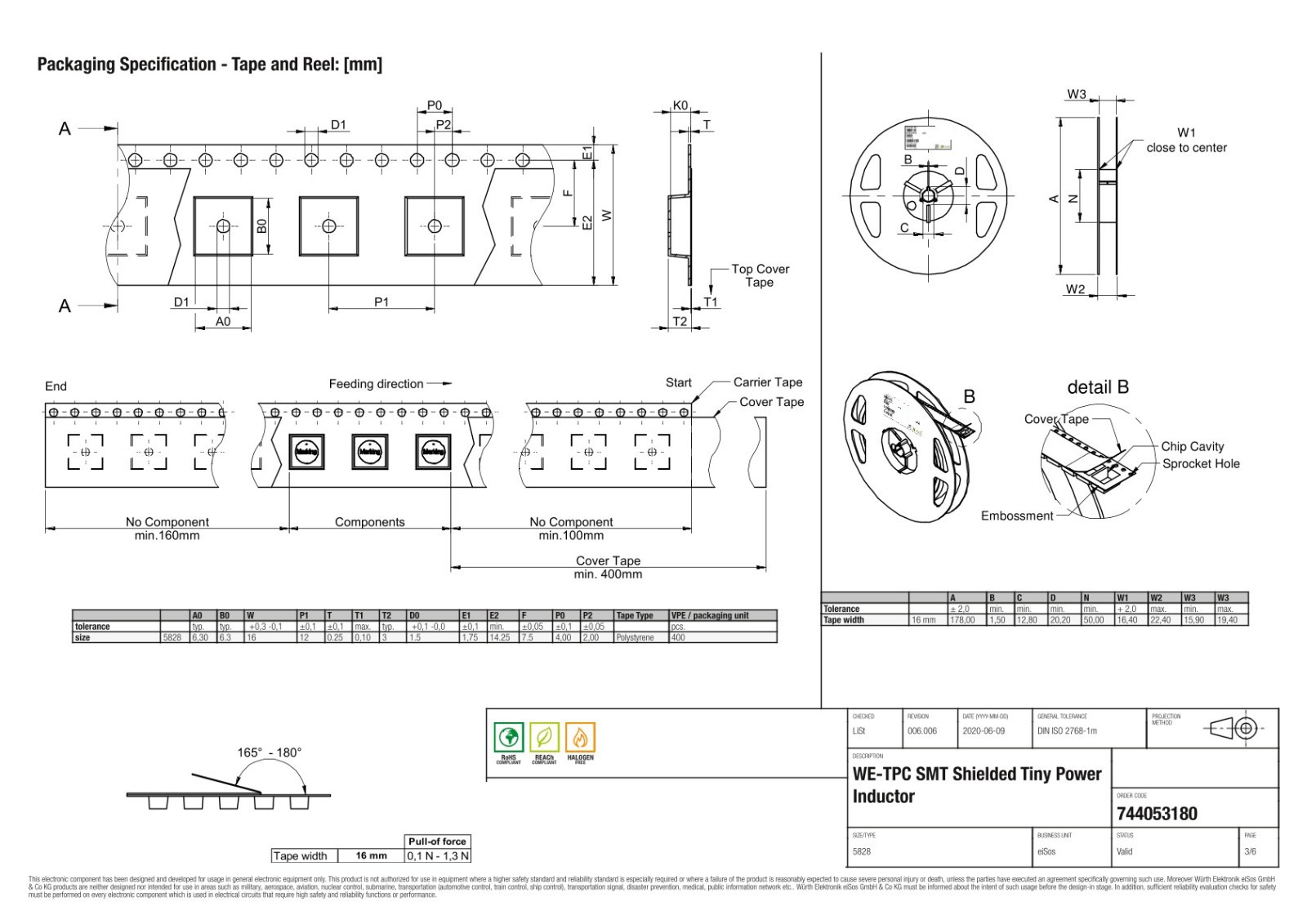

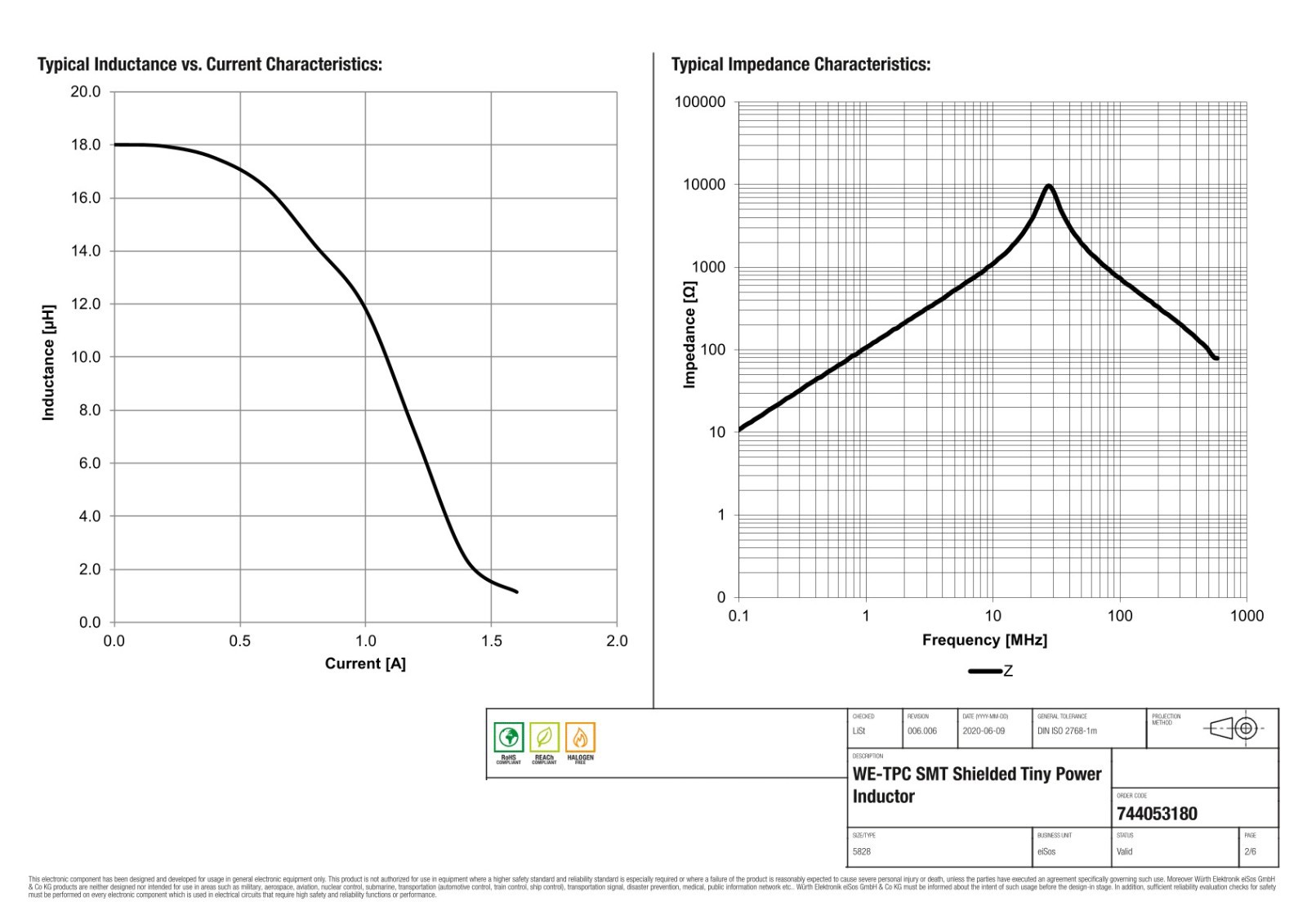

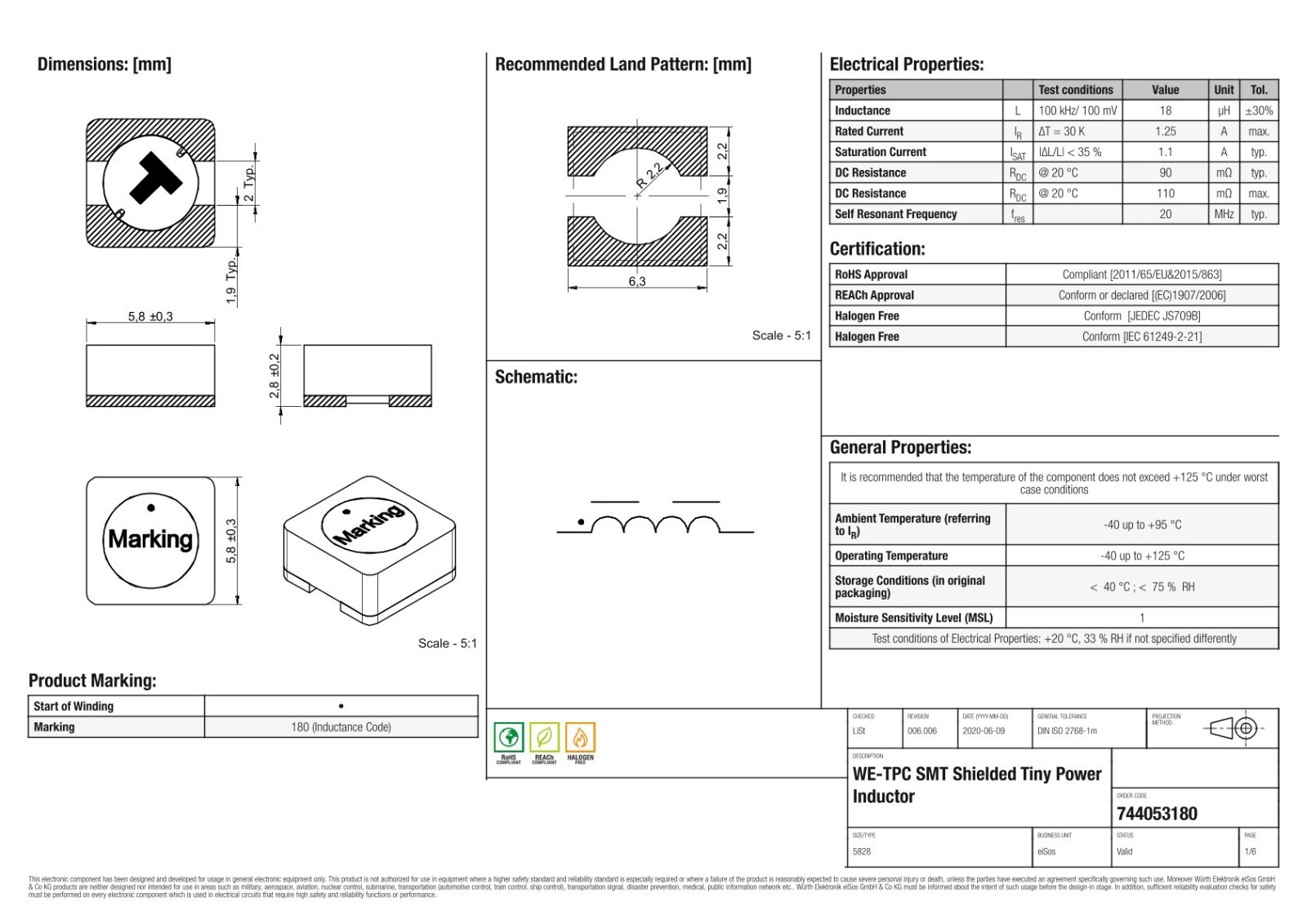

Product datasheet

For more information, please download
